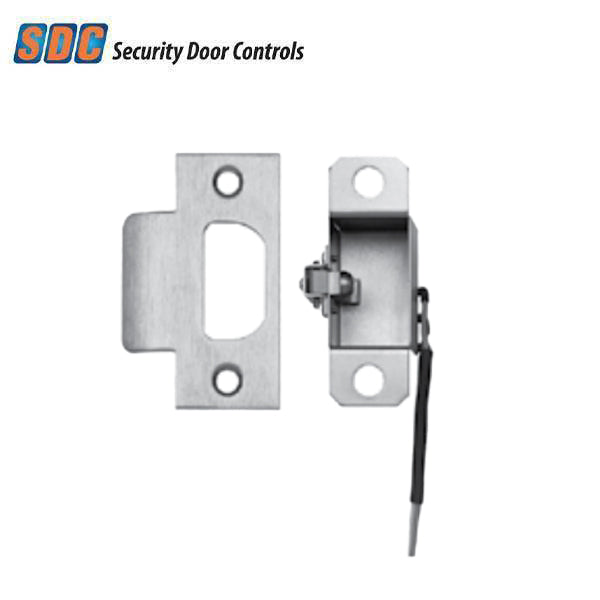

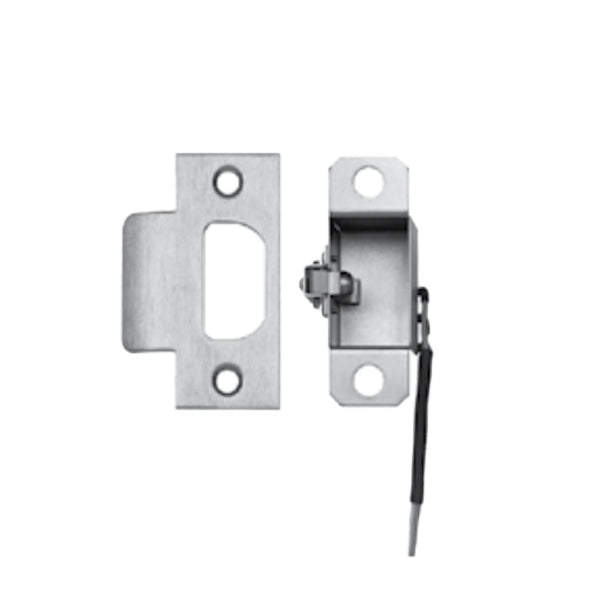

SDC - MS-12 - Electrified Cylindrical & Tubular Strike - Full Monitoring - 2-3/4" - 5 Amp @ 30 VDC Resistive - SPDT - UHS Hardware
SDC - MS-12 - Electrified Cylindrical & Tubular Strike - Full Monitoring - 2-3/4" - 5 Amp @ 30 VDC Resistive - SPDT - UHS Hardware

SDC - MS-12 - Electrified Cylindrical & Tubular Strike - Full Monitoring - 2-3/4" - 5 Amp @ 30 VDC Resistive - SPDT

Available to Order
SKU: SDC-MS-12
NSID: 32168

Please Note: This product has a lead time

$91.57
$109.88
$91.57

SDC’s MS series latch and deadbolt monitoring strikes offer remote monitoring through the use of a signal switch mounted in the strike to monitor the latch bolt. Designed to retrofit standard door strikes, these kits provide latch and/or deadbolt status such as door closed and latched and/or door closed and bolted. All wiring is maintained in the frame, eliminating the need for power transfer devices and wires in the door, thus maintaining fire door integrity.

Features:

  • Latch status (LS)
  • Bolt position status (BPS)*
  • Request-to-exit (REX)
  • Fits standard ANSI 23/4” or 47/8” strike cutout
  • Solid stainless steel actuators
  • Heavy gauge strike back box
  • Unobtrusive, vandal-resistant actuators recessed to inhibit tampering
  • Field adjustable for latch and bolt length
Call 1-800-878-6604 for Bulk / Dealer Pricing!

    Specifications:

    Compatibility Cylindrical Lock
    2 3/4” ANSI Strike
    Dimensions 2 11/16” x 15/16”
    Contact SPDT
    Rating 5 Amp @ 30 VDC
    Resistive
    Depth (Min) 1 1/4”
    Warranty 5 Year Limited Manufacturer Warranty
