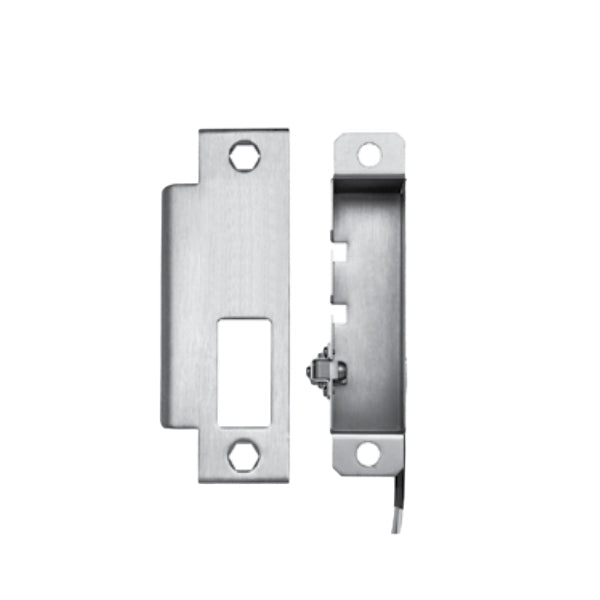

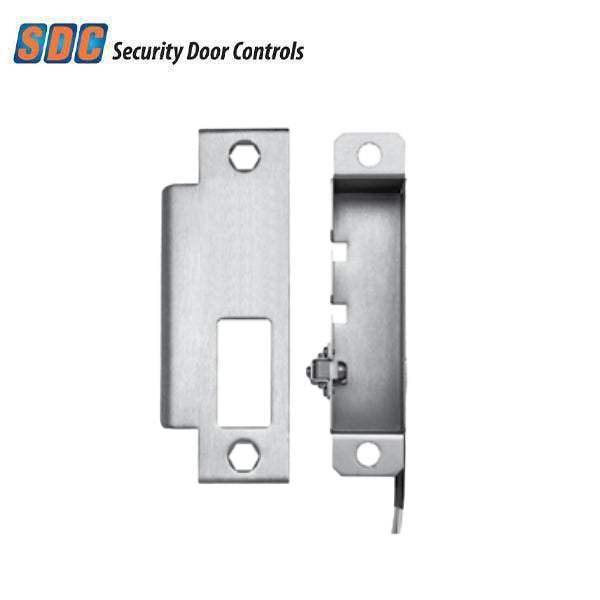

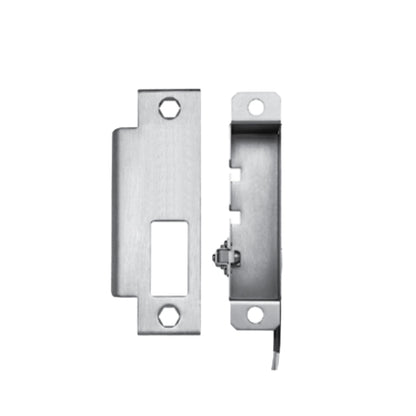

SDC - MS-16 - Electrified Deadbolt Strike - Mortise Lock Latch Monitor - 5 Amp @ 30 VDC Resistive - SPDT
- Product SKU: SDC-MS-16
- NSID: 32170
-
SDC-MS-16
SDC’s MS series latch and deadbolt monitoring strikes offer remote monitoring through the use of a signal switch mounted in the strike to monitor the latch bolt. Designed to retrofit standard door strikes, these kits provide latch and/or deadbolt status such as door closed and latched and/or door closed and bolted. All wiring is maintained in the frame, eliminating the need for power transfer devices and wires in the door, thus maintaining fire door integrity.
Features:
- Latch status (LS)
- Bolt position status (BPS)*
- Request-to-exit (REX)
- Fits standard ANSI 23/4” or 47/8” strike cutout
- Solid stainless steel actuators
- Heavy gauge strike back box
- Unobtrusive, vandal-resistant actuators recessed to inhibit tampering
- Field adjustable for latch and bolt length
- Latch status (LS)
Specifications:
| Compatibility | Mortise Lock |
| Dimensions | 4 13/16” x 11/16” |
| Contact | SPDT |
| Rating | 5 Amp @ 30 VDC Resistive |
| Depth (Min) | 1 1/4” |
| Warranty | 5 Year Limited Manufacturer Warranty |
