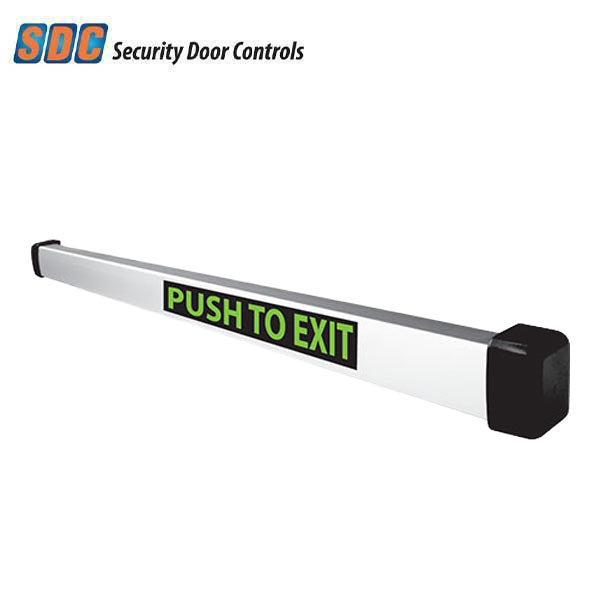

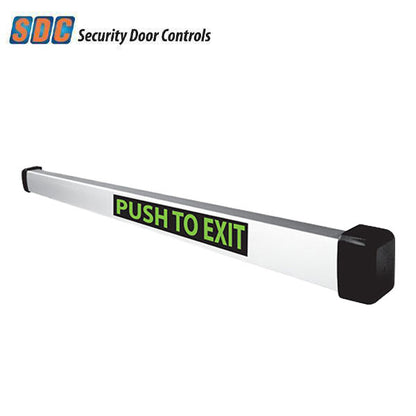

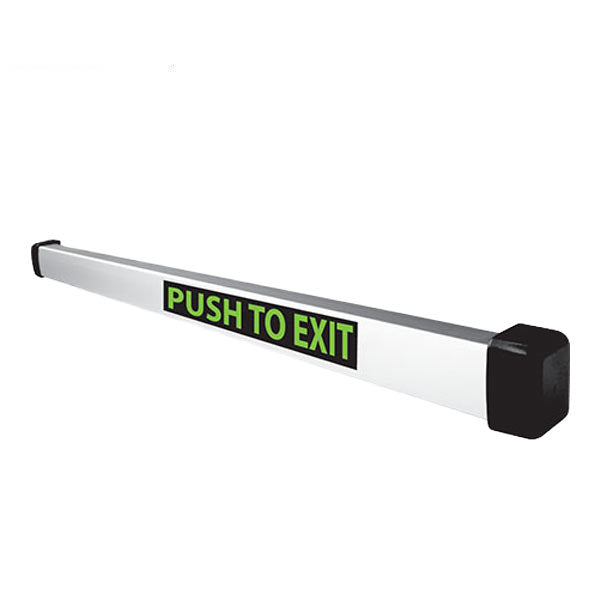

SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized
SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized
SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized
SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized
SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized
SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized
SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized

SDC - MSB550W-2VW - Outdoor Mechanical Switch Bar Exit Device - 36" - Weather Sealed - Heavy Duty - 628 - Aluminum Clear Anodized

$226.21 $255.00
Availability: Available
Wishlist
  • Product SKU: SDC-MSB550-2WV36
  • NSID: 23048
  • SDC-MSB550-2WV36
    Item number: XXXX

    The MSB550W is designed to release electromagnetic door locks for uninhibited egress in outdoor weather exposed applications. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock, making it the perfect Gate Lock companion. The MSB5500W is an economical alternative to sensor activated bars.

    Features:

    • Water Sealed Switches - The MSB550W features a high-quality watertight miniature snap action switch with a monoblock construction, ensuring high sealing capacity. Switch body meets IP67 (IEC 529) requirements.
    • Heavy Duty Construction - The MSB550W utilizes heavy-duty aluminum extrusion and rugged end< caps. The mounting assembly is all metal. The rigid construction prevents any malfunction.
    • Only 1/8” Total Bar Movement - The MSB550W has a maximum movement of only .125”. Trigger activation to release the electromagnetic lock is quick and quiet.
    • Perfect Companion for Gate Lock Solutions - The MSB550W’s watertight switches makes it a perfect companion for outdoor gate solutions. For additional system components, see back page.

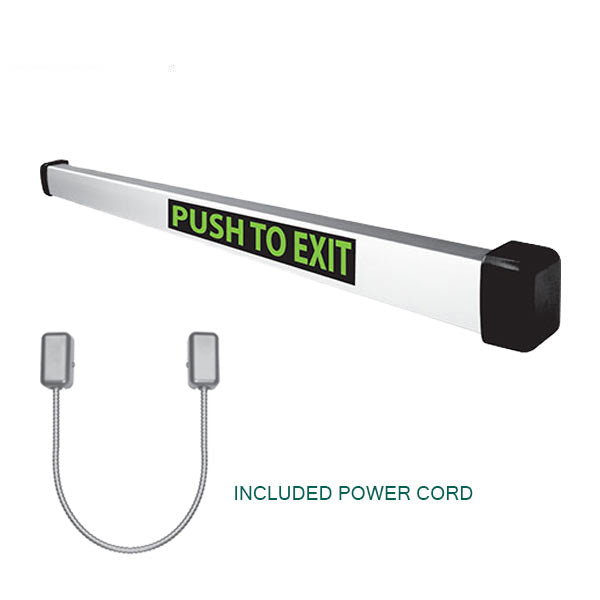

    • Includes PT-3 Stainless Steel Shielded Power Cord


    $226.21
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs
Finish 628 Anodized Aluminum
Physical Appearance Touch Bar
Handing Non-Handed
Device Type Exit Pushbar Device
Device Length 36 In.
Weather Sealed
 IP67 Rated
Operating Temperature
-40°F to 185°F
Contact 2 SPDT, 3 Amp @ 30VDC
(RESISTIVE)
Manufacturer Security Door Controls



Download:

SDC-MSB550-2WV36
Item number: XXXX

The MSB550W is designed to release electromagnetic door locks for uninhibited egress in outdoor weather exposed applications. When slight pressure is applied a microswitch is actuated, immediately releasing the electromagnetic door lock, making it the perfect Gate Lock companion. The MSB5500W is an economical alternative to sensor activated bars.

Features:

  • Water Sealed Switches - The MSB550W features a high-quality watertight miniature snap action switch with a monoblock construction, ensuring high sealing capacity. Switch body meets IP67 (IEC 529) requirements.
  • Heavy Duty Construction - The MSB550W utilizes heavy-duty aluminum extrusion and rugged end< caps. The mounting assembly is all metal. The rigid construction prevents any malfunction.
  • Only 1/8” Total Bar Movement - The MSB550W has a maximum movement of only .125”. Trigger activation to release the electromagnetic lock is quick and quiet.
  • Perfect Companion for Gate Lock Solutions - The MSB550W’s watertight switches makes it a perfect companion for outdoor gate solutions. For additional system components, see back page.
  • Includes PT-3 Stainless Steel Shielded Power Cord

Finish 628 Anodized Aluminum
Physical Appearance Touch Bar
Handing Non-Handed
Device Type Exit Pushbar Device
Device Length 36 In.
Weather Sealed
 IP67 Rated
Operating Temperature
-40°F to 185°F
Contact 2 SPDT, 3 Amp @ 30VDC
(RESISTIVE)
Manufacturer Security Door Controls
