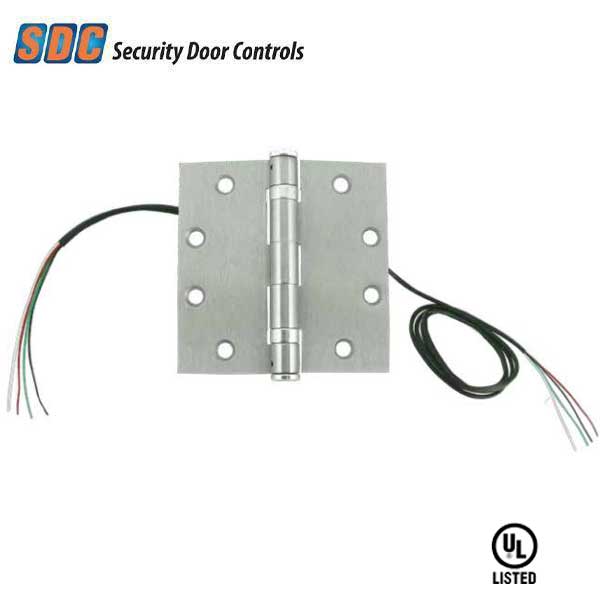

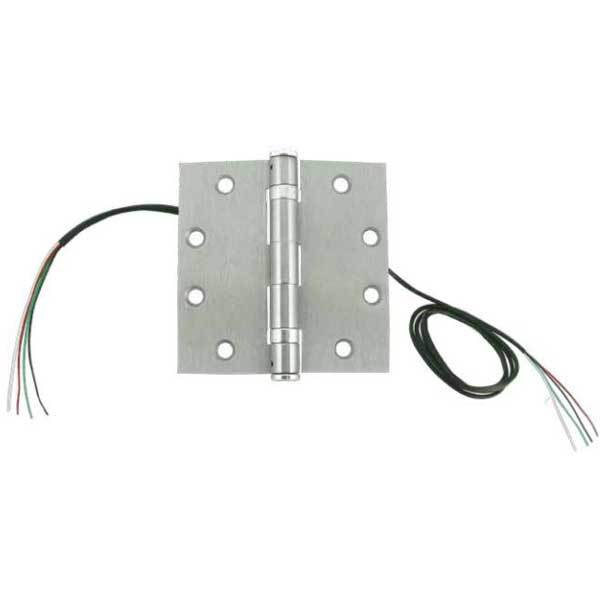

*Discontinued* SDC - PTH-2+4Q - Energy Transfer Hinge - 6 Conductor - (x2) 18 AWG (x4) 28 AWG - 16 Amp Inrush - 626 - Dull Chrome

*Discontinued* SDC - PTH-2+4Q - Energy Transfer Hinge - 6 Conductor - (x2) 18 AWG (x4) 28 AWG - 16 Amp Inrush - 626 - Dull Chrome

Discontinued
SKU SDC-PTH-2+4Q NSID 21980
$174.66$209.59On Sale You save $34.93 (17%)

SDC-PTH-2+4Q

Electric Power Transfer Hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

Features:

  • 5' Ft Cable Standard with 4 wire hinges
  • UL10B Listed for 3 Hour Fire Rated Doors
  • 100,000 cycles
  • Wire Replacement Warranty
    *PTH-2-4: 8 Amp inrush rating, 250 ms pulses for 15 seconds, resting 15 seconds

View full details

Details

    Specifications:

    Amp Draw 1-pair 16 Amp Inrush, 4 Amp Continuous
    2-Pair 1 Amp @ 12/24V
    Bearing Type Plain Bearing
    Corner Type Square
    Duty Weight/Class Standard Duty
    Certifications UL 10B Listed for 3Hr fire rated doors
    800,000 cycles. 8 Times UL Test Criteria
    Function Energy Transfer
    Hardware Finish 626 - Dull Chrome
    Height 4-1/2"
    Width 4-1/2”
    Knuckles 5
    Power Transfer/Wires (2x) 18 AWG + (4x) 28 AWG
    Warranty Manufacturer Limited Wire Replacement Warranty
