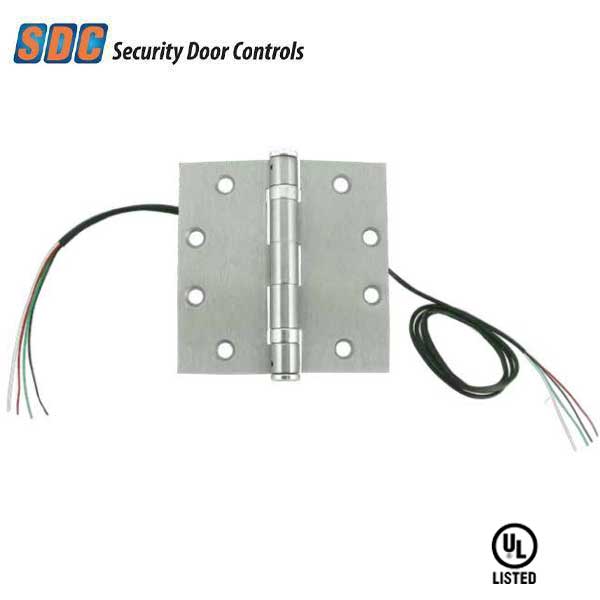

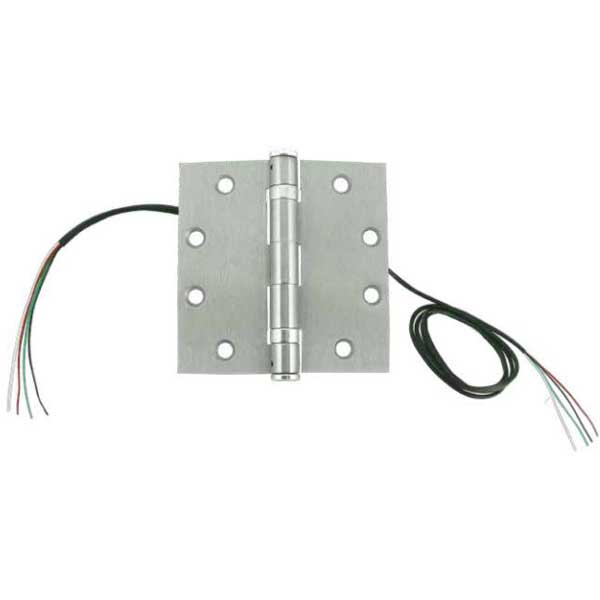

SDC - PTH-4Q - Energy Transfer Hinge - 4 Conductor - 26 AWG - 626 - Dull Chrome
SDC - PTH-4Q - Energy Transfer Hinge - 4 Conductor - 26 AWG - 626 - Dull Chrome
SDC - PTH-4Q - Energy Transfer Hinge - 4 Conductor - 26 AWG - 626 - Dull Chrome
SDC - PTH-4Q - Energy Transfer Hinge - 4 Conductor - 26 AWG - 626 - Dull Chrome
SDC - PTH-4Q - Energy Transfer Hinge - 4 Conductor - 26 AWG - 626 - Dull Chrome

SDC - PTH-4Q - Energy Transfer Hinge - 4 Conductor - 26 AWG - 626 - Dull Chrome

$98.15 $128.95
Availability: In Stock
Wishlist
  • Product SKU: SDC-PTH-4Q
  • NSID: 21988
  • SDC-PTH-4Q

    Electric Power Transfer Hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

    Features:

    • 5' Ft Cable Standard with 4 wire hinges
    • UL10B Listed for 3 Hour Fire Rated Doors
    • 100,000 cycles
    • Wire Replacement Warranty


    $98.15
    Get it shipped
    Today!
    Order within
    00 Hrs
    00 Mins
    00 Secs

    Specifications:

    Amp Draw 1 Amp @ 12/24V per pair
    Bearing Type Plain Bearing
    Corner Type Square
    Duty Weight/Class Standard Duty
    Certifications UL 10B Listed for 3Hr fire rated doors
    800,000 cycles. 8 Times UL Test Criteria
    Function Energy Transfer
    Hardware Finish 626 - Dull Chrome
    Height 4-1/2"
    Width 4-1/2”
    Knuckles 5
    Power Transfer/Wires 26 AWG
    Warranty Manufacturer Limited Wire Replacement Warranty


    Downloads:

    SDC-PTH-4Q

    Electric Power Transfer Hinges provide a concealed and vandal resistant method for running wires from the frame to doors equipped with electric locks and exit devices.

    Features:

    • 5' Ft Cable Standard with 4 wire hinges
    • UL10B Listed for 3 Hour Fire Rated Doors
    • 100,000 cycles
    • Wire Replacement Warranty


      Specifications:

      Amp Draw 1 Amp @ 12/24V per pair
      Bearing Type Plain Bearing
      Corner Type Square
      Duty Weight/Class Standard Duty
      Certifications UL 10B Listed for 3Hr fire rated doors
      800,000 cycles. 8 Times UL Test Criteria
      Function Energy Transfer
      Hardware Finish 626 - Dull Chrome
      Height 4-1/2"
      Width 4-1/2”
      Knuckles 5
      Power Transfer/Wires 26 AWG
      Warranty Manufacturer Limited Wire Replacement Warranty
