• SDC - WRC-R2 - Two Channel Wireless Receiver - Up to 30 Fixed Transmitter Codes - 433MHz - UHS Hardware
  • SDC - WRC-R2 - Two Channel Wireless Receiver - Up to 30 Fixed Transmitter Codes - 433MHz - UHS Hardware
1 2
SDC

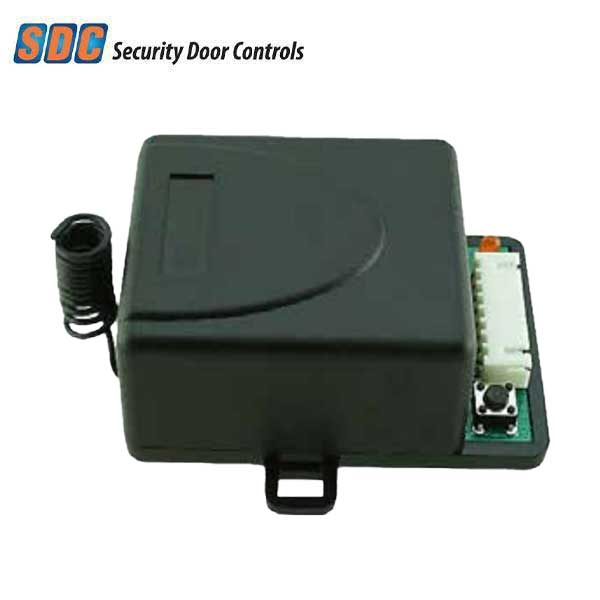

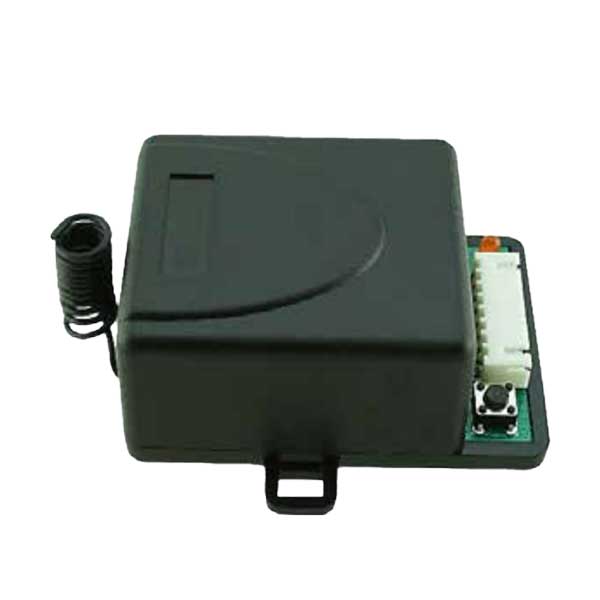

SDC - WRC-R2 - Two Channel Wireless Receiver - Up to 30 Fixed Transmitter Codes - 433MHz

SDC - WRC-R2 - Two Channel Wireless Receiver - Up to 30 Fixed Transmitter Codes - 433MHz

In stock
SKU SDC-WRC-R2 NSID 21982
$71.67$86.00On Sale You save $14.33 (17%)
Get it shipped Today! Order within:

The SDC WRC Series 2-Channel wireless transmitter/ receiver solution is specifically designed to be used as a receptionist button or remote release for single or dual door access control applications.

This Two Channel Wireless Receiver has the capacity to learn up to 30 fixed transmitter codes using the onboard learning button and status LED. This is specifically designed to work with the WRC-2B Wireless Transmitter

433MHz

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Carrier Frequency: 433.92 MHz
Power Supply: 24VDC
Relay Outputs: Two (2) Dry, SPDT
Contact Rating: 10A @ 30VDC (resistive)
Current Consumption: 9mA @ 24VDC (standby), 46mA (max)
Temperature: -22F - 140F
Dimensions: 2.5”W x 1.75”W x 1.2” Deep
Finish: Black Plastic Cover
Warranty: 3 Year Manufacturer Warranty

Downloads:
