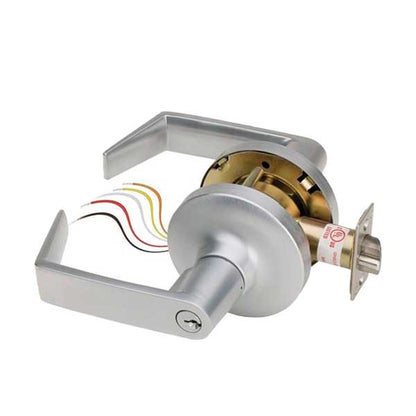

• SDC - Electrified Cylindrical Lockset - Fail Safe - Eclipse Lever - 12/24VDC - Satin Chrome - Grade 1 - UHS Hardware
  • SDC - Electrified Cylindrical Lockset - Fail Safe - Eclipse Lever - 12/24VDC - Satin Chrome - Grade 1 - UHS Hardware
  • SDC - Electrified Cylindrical Lockset - Fail Safe - Eclipse Lever - 12/24VDC - Satin Chrome - Grade 1 - UHS Hardware
1 3
SDC

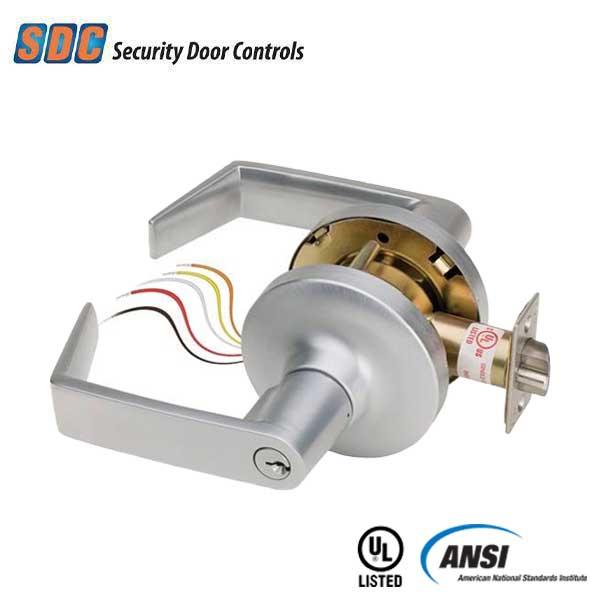

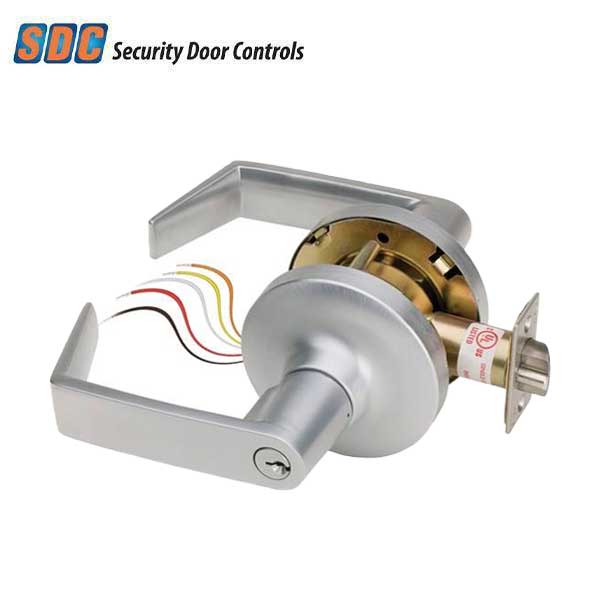

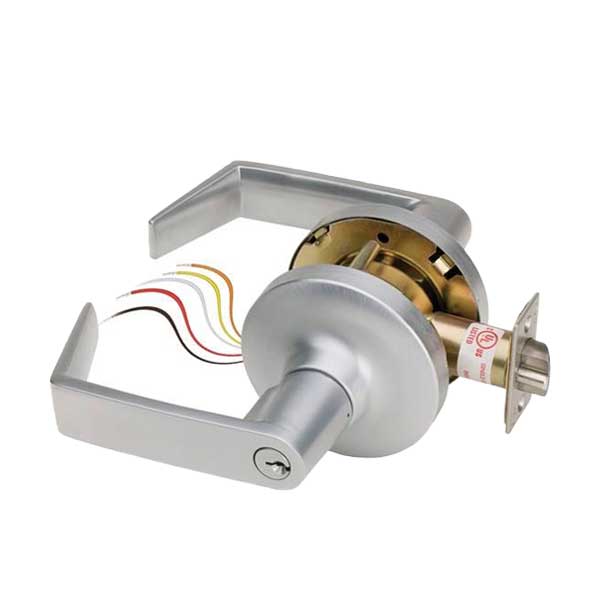

SDC - Z7252EQ6PKA - Electrified Cylindrical Lockset - Keyed Alike - 6-Pin - Fail Secure - Eclipse Lever - 12/24VDC - Satin Chrome - Fire Rated - Grade 1

SDC - Z7252EQ6PKA - Electrified Cylindrical Lockset - Keyed Alike - 6-Pin - Fail Secure - Eclipse Lever - 12/24VDC - Satin Chrome - Fire Rated - Grade 1

In stock
SKU SDC-Z7252EQ6PKA-626 NSID 32161
$379.80$455.76On Sale You save $75.96 (17%)
Get it shipped Today! Order within:


The Electra Pro Z7200 SDC's premier electric cylindrical lockset incorporates the latest innovative design features, including a clutch. Plus, Latch Status Output is standard. These Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.

Features:

  • Ideal for high usage environments
  • Fail Secure
  • Keyed Alike, 6-Pin
  • Eclipse lever
  • Vandal resistant lever clutch mechanism
  • Independent power return springs for effective lever action and prevention of lever sag
  • ANSI Grade 1 Heavy Duty
  • CSFM and MEA Listed
  • ADA compliant
  • UL Listed for 3 Hr 'A' Label Fire Rated Doors


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:

Lock Function: Fail Secure
Lever: Eclipse Lever Trim
Cylinder: 6-Pin, 11/8” Length, Keyed Alike
Voltage: Dual 12/24VDC input
Current: 600/300mA @ 12/24VDC
Latch Status Output: SPDT 3 Amps @ 30VDC
Latch Bolt: 9/16” Throw
Backset: 2-3/4”
Strike: 4-7/8” ANSI A115.2
Door Thickness: 1-3/4” to 2-1/8”
Finish: Satin Chrome - 626
Fire Rated: UL 10C Positive Pressure Fire Tests of Door Assemblies
Certifications: ANSI Certified Grade 1 - UL Listed for 3 Hr 'A' Label Fire Rated Doors - CSFM and MEA Listed - ADA Compliant
Warranty: 5-Year Manufacturer Warranty
