SDC - Z7252GQ6PKA - Electrified Cylindrical Lockset - Keyed Alike - 6-Pin - Fail Secure - Galaxy Lever - 12/24VDC - Satin Chrome - Fire Rated - Grade 1
Available to Order
SKU:
SDC-Z7252GQ6PKA-626
NSID:
32162
- $287.28
-
$344.74 - $287.28
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

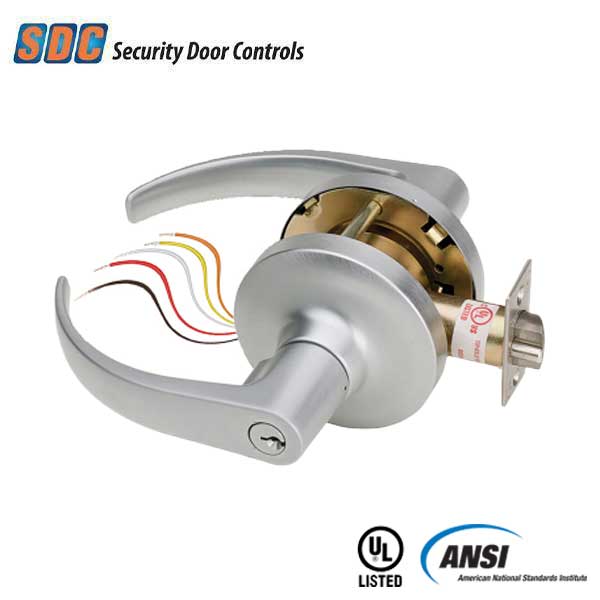

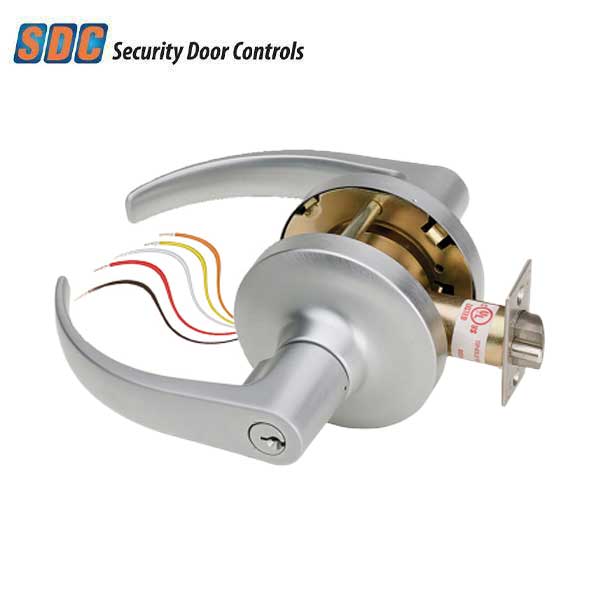

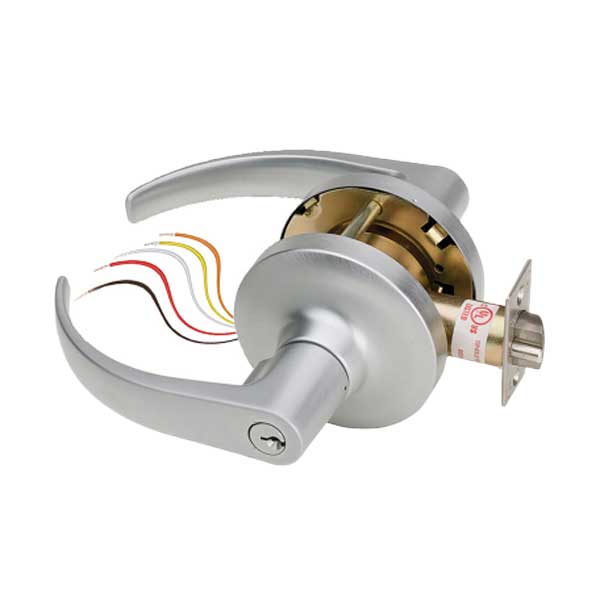

The Electra Pro Z7200 SDC's premier electric cylindrical lockset incorporates the latest innovative design features, including a clutch. Plus, Latch Status Output is standard. These Electrified Cylindrical Locksets are designed for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse is required.
Features:
- Ideal for high usage environments
- Fail Secure
- Keyed Alike, 6-Pin
- Galaxy lever
- Vandal resistant lever clutch mechanism
- Independent power return springs for effective lever action and prevention of lever sag
- ANSI Grade 1 Heavy Duty
- CSFM and MEA Listed
- ADA compliant
- UL Listed for 3 Hr 'A' Label Fire Rated Doors
Specifications:
| Lock Function: | Fail Secure |
| Lever | Galaxy Lever Trim |
| Cylinder: | 6-Pin, 1-1/8” Length, Keyed Different |
| Voltage: | Dual 12/24VDC input |
| Current: | 600/300mA @ 12/24VDC |
| Latch Status Output: | SPDT 3 Amps @ 30VDC |
| Latch Bolt: | 9/16” Throw |
| Backset: | 2-3/4” |
| Strike: | 4-7/8” ANSI A115.2 |
| Door Thickness: | 1-3/4” to 2-1/8” |
| Finish: | Satin Chrome - 626 |
| Fire Rated: | UL 10C Positive Pressure Fire Tests of Door Assemblies |
| Certifications: | ANSI Certified Grade 1 - UL Listed for 3 Hr 'A' Label Fire Rated Doors - CSFM and MEA Listed - ADA Compliant |
| Warranty: | 5-Year Manufacturer Warranty |
