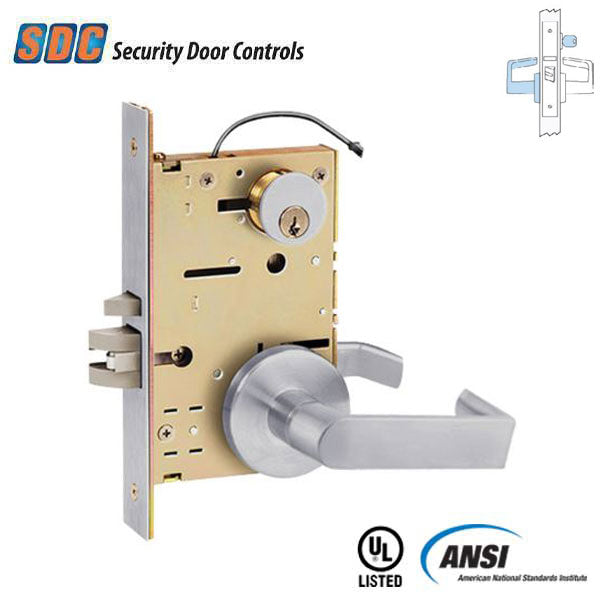

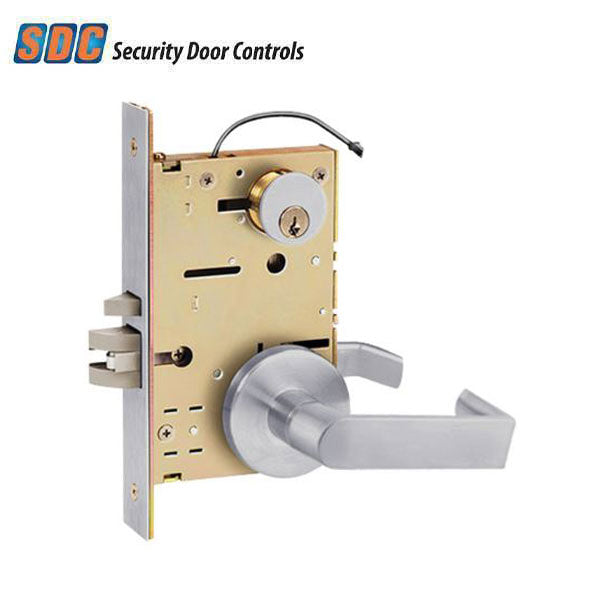

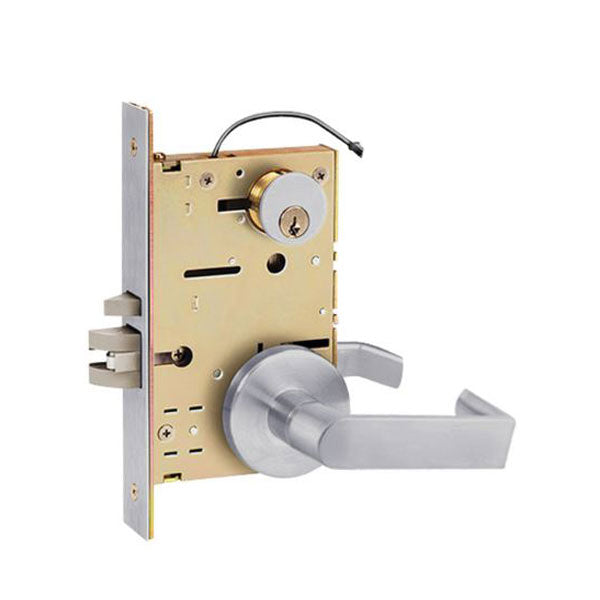

*Discontinued* SDC - Z7850LQE - Solenoid Controlled Mortise Lock - Fail Safe - Eclipse Rose - Left Hand - 12/24VDC - Satin Chrome - Fire Rated - Grade 1
Out of Stock
SKU:
SDC-Z7850LQE-626
NSID:
32152
- $573.90
-
$688.68 - $573.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
7800 Pro series models incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. They replace most brands of mechanical locksets making them fully compatible with new and retrofit applications and provide field selectability of all operational attributes. All SDC mortise locks feature a mortise cylinder to manually retract the latch.
Features:
- Heavy duty mortise design
- New or retrofit construction
- Vandal resistant clutch
- Solenoid control
- Key latch retraction
- Fail Safe
- $573.90
-
$688.68 - $573.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Construction: | Heavy Duty Steel |
| Lock Function: | Mortise, Solenoid Control - Failsafe - Locked Outside Only |
| Door Thickness: | 1-3/4" |
| Backset: | 2-3/4" |
| Faceplate: | 8-1/32” x 1-5/16” x 7/32” |
| Door prep: | ANSI A156.13 |
| Strike: | Standard ANSI 47/8” |
| Case: | 6” x 4” x 1” |
| Latchbolt: | 3/4” Throw, Stainless Steel, Anti-Friction |
| Deadlatch: | Above Latchbolt |
| Input: | 12/24 VDC ± 10% |
| Lever: | Eclipse Rose |
| Handing: | Left Hand |
| Current Draw: | 600 mA @ 12 VDC; 300 mA @ 24 VDC |
| Monitoring Contacts: | SPDT 5 Amps @ 30 VDC Resistive |
| Finish: | 626 - Satin Chrome |
| Fire Rated: | UL 10C Positive Pressure Fire Tests of Door Assemblies |
| Certifications: | ANSI A156.13, UL Listed, CSFM Listed |
| Warranty: | 5-Year Manufacturer Warranty |
Downloads:
