Details
Specifications:
| Holding Force | 1,200-lb (545kg) |
| Operating Voltage | 12/24 VDC |
| Current Draw | 500mA@12VDC, 250mA@24VDC |
| Operating Temperature | 32º~120º F (-0º~49º C) |

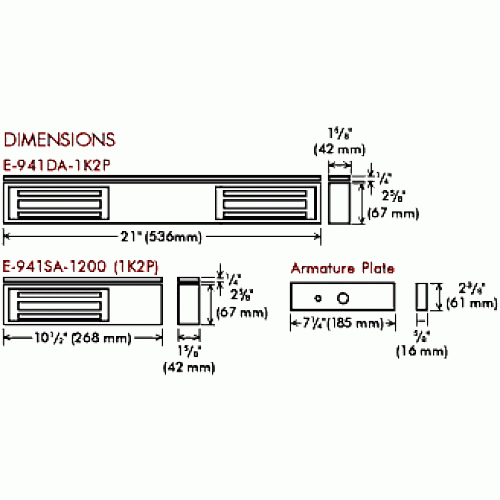

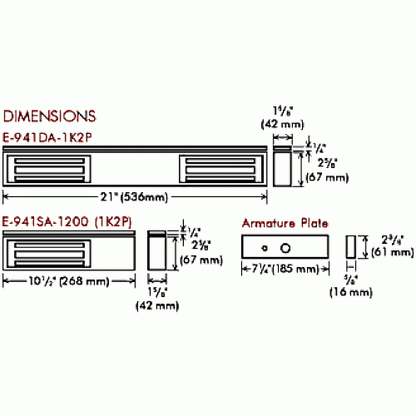

| Electromagnet Dimensions | 10-1/2″x2-5/8″x1-9/16″ (267x67x40 mm) |
| Armature Dimensions | 7-1/4″x2-3/8″x5/8″ (185x61x16 mm) |
| Case Shipping Weight | 54-lb (24.5kg) |
| Weight | 4-lb 6-oz (2kg) |
| Case Quantity | 5 pcs |
Downloads:
