Seco-Larm

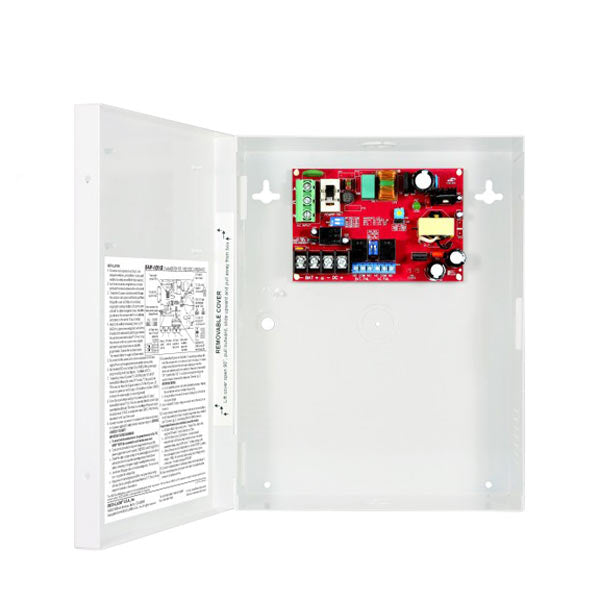

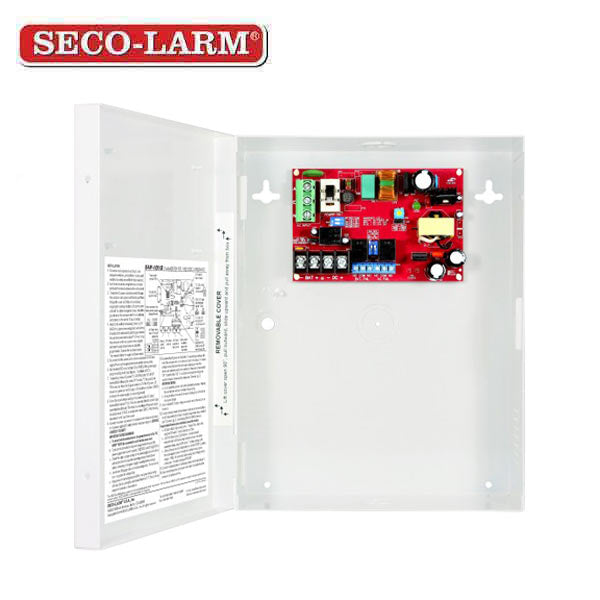

Seco-Larm - 1D1Q - Access Control Power Supply

Seco-Larm - 1D1Q - Access Control Power Supply

In stock
SKU SLM-EAP-1D1Q NSID 21264
$113.85$136.62On Sale You save $22.77 (17%)
Get it shipped Today! Order within:

SLM-EAP-1D1Q

The SECO-LARM EAP-1D1Q power supplies are specifically designed for an access control system's electronic locks and accessories. These power supplies centralize the power sources of access control equipment. They include two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also include gradual shutdown on output overload as well as immediate shutdown on output short, signaled by a flashing red LED and with auto-recovery once output short or overload is removed.


Features

  • Input 110~240 VAC, fused at 3.15A
  • Filtered and electronically regulated output
  • AC Input and DC output LED status indicators
  • Adjustable output voltage to compensate for voltage drop
  • AC power failure supervision relay
  • Overcurrent fuse-protected AC input
  • Automatic shutdown for overcurrent / short-circuit protection
  • 12/24 VDC Outputs, field selectable
  • Battery failure / low battery supervision relay
  • Built-in backup battery charger (Batteries not included)
  • Automatically switch to backup battery if AC fails
  • Selectable 2.2k3 End-of-Line (EOL) resistor for AC failure and battery failure supervision relays
  • Selectable delay timer (5sec, 5min, 5h) for AC failure supervision relay via DIP switch

Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Power

  • Operating Input voltage: 110~240 VAC
  • Field-selectable 12 or 24 VDC output
  • Total continuous output current: 3A@12VDC, 1.5A@24VDC
  • AC Input fuse rated at 3.15A ( glass fuse, AC)

Enclosure
  • Heavy-duty steel case with removable cover for easy
    access to connections
  • Ventilation holes to prevent heat buildup
  • Room for one 7Ah battery or two 4AH batteries (Batteries not included)
  • Knockouts for power connections and optional cam lock
  • Dimensions: 73/4 "x101/16"x39/16" (197x255x91 mm)

Specifications

Input Voltage 110~240VAC
Output Voltage 12 or 24VDC selectable via DIP switch
Adjustable Output Voltage Range 12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switch
Number of Outputs 1
Total Supply Current 5A@12VDC / 2.5A@24VDC
Input Fuse Rating 3.15A ( glass fuse, AC)
LED Status Indicator AC input ( Green ), DC Output ( Red )
24VDC Output (Blue)
End-of-Line Resistor (EOL) Selectable ON ( 2.2KΩ) or OFF , 3A@24VDC dry relay output
