Seco-Larm - Multi-Purpose Programmable Timer with Protective Case
In Stock
SKU:
SLM-SA-025Q
NSID:
6811
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $18.15
-
$22.95 - $18.15
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

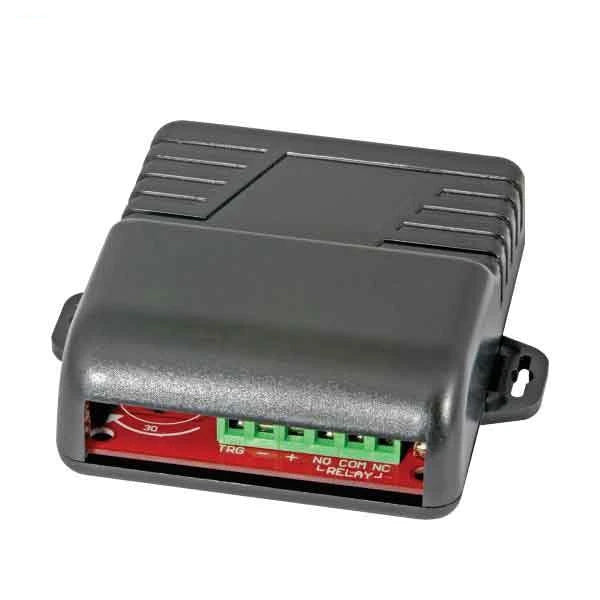

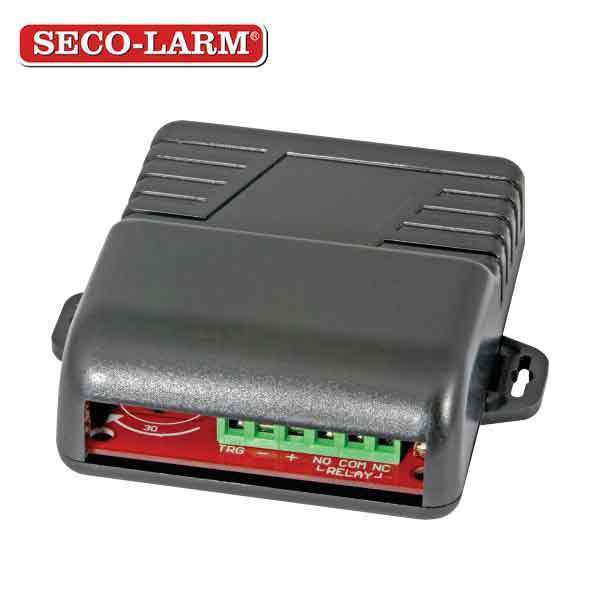

- The ENFORCER® SA-025Q Multi-Purpose Programmable Timer with Protective Case is suitable for use with a wide range of timed security and access control products, such as electric door strikes, sirens, or bells. DIP switches for programming and auto-sensing of input voltage make installation easy.
- Timer can be set from 1 second to 60 minutes
- Protective case:
- ---- Protects the product from the environment
- ---- Prevents dust and dirt build up
- ---- Makes product easier to mount
- ---- Easy to hide and protect the terminal
- ---- Dimensions: 3-1/4”x2-11/16”x1-1/16” (83x68x27.5 mm)
- Can be triggered by positive voltage (+DC), or closure or opening of dry contact
- Relay can be programmed to activate at the start or at the end of the timing cycle
- Relay can also be set to activate for one second at the end of the timing cycle
- Programmable for pulse (flash) activation
- Built-in reset function to manually reset timing cycle
- Form C relay, contacts rated 8A@120VAC/24VDC
- LED indicates relay is energized
- 12VDC/24VDC Operation (auto sensing)
- Current: 1mA (standby), 50mA (active)

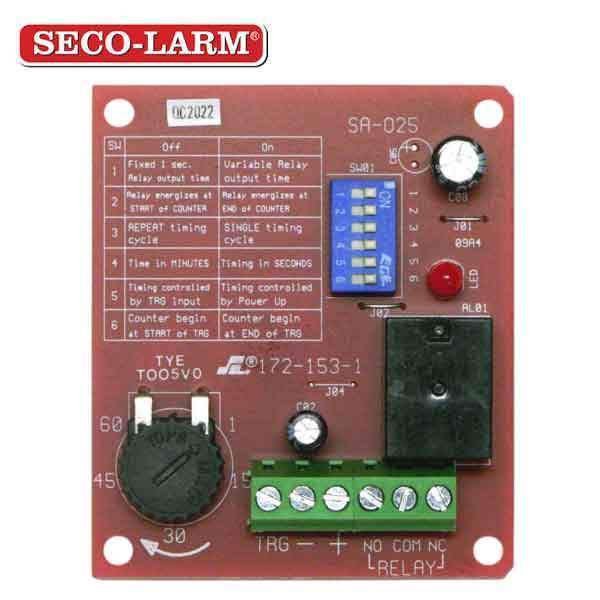

- Board measures 27/8" x 21/2" (73x63 mm)
- Functions programmed via DIP switches – no jumpers to cut
| Operating Voltage | 12VDC/24VDC (auto sensing) |
| Relay Rating | Form C relay, contacts rated 8A@120VAC / 24VDC |
| Current Draw - Active | 50mA |
| Current Draw - Standby | 1mA |
| Dimensions | 2-7/8" x 2-1/2" (73 x 63 mm) Board measurements |
