Seco-Larm

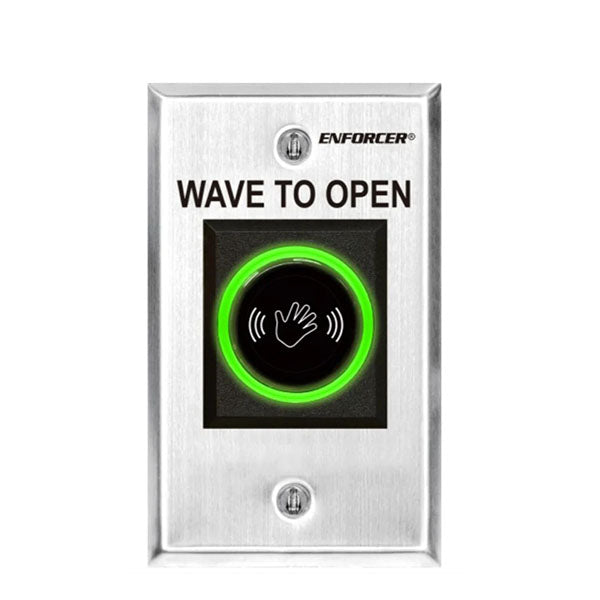

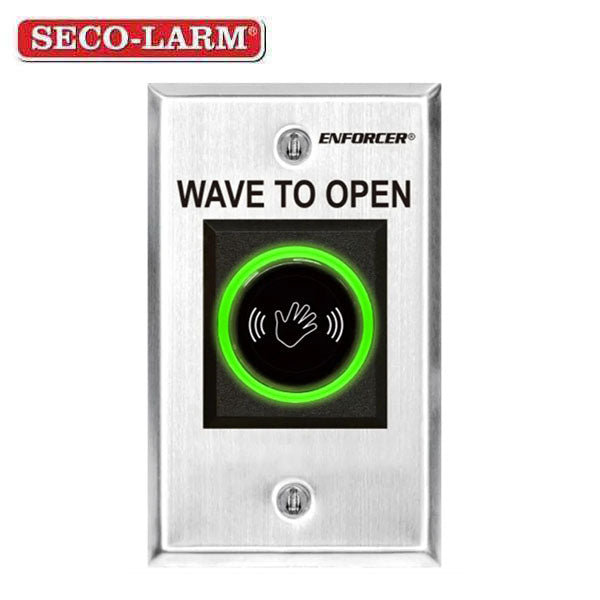

Seco-Larm - No Touch - RTE IR Sensor - Single Gang Sensor Plate - English

Seco-Larm - No Touch - RTE IR Sensor - Single Gang Sensor Plate - English

In stock
SKU SLM-SD-927PKC-NEQ NSID 6758
$33.00$39.60On Sale You save $6.60 (17%)
Get it shipped Today! Order within:


The ENFORCER No-Touch Request-To-Exit Sensor uses IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since it is No-Touch, this sensor is ideal for use in hospitals, clinics, labs, clean rooms (to reduce the risk of contamination), schools, factories, or offices.

  • 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
  • Dual voltage, 12~24 VAC/VDC
  • Range adjustable from 2-3/8"-8" (6~20 cm)
  • Stainless steel single-gang plate
  • Quick connect screw-less terminal block
  • LED illuminated sensor area for easy identification
  • Selectable LED colors (turns from red to green or green to red) when activated
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Type No Touch Request-to-Exit Sensor Wall Plates
Current Draw 120mA@12VDC
Sensing Range Adjustable, 2-3/8"~8" (6-20 cm)
Operating Voltage 12~24 VAC/VDC
Reaction time 10mS
LEDs - Red Standby
LEDs - Green Triggered
Relay Type Form C (NO/NC/COM) 3A@24VDC
Output Time Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm)
Weight 3oz (85g)
