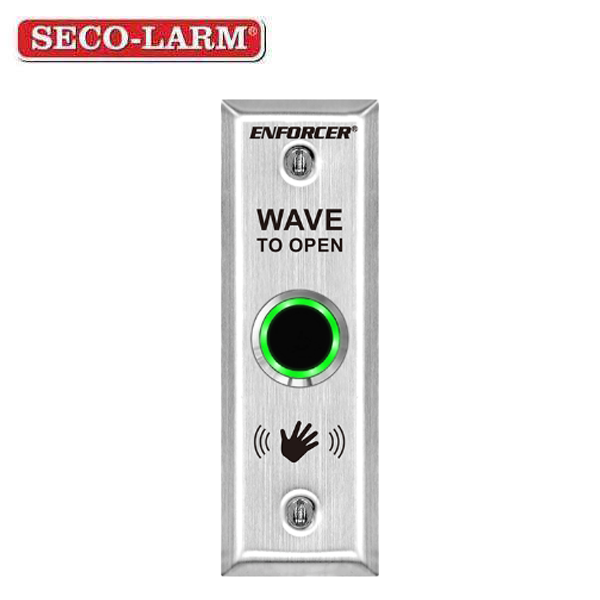

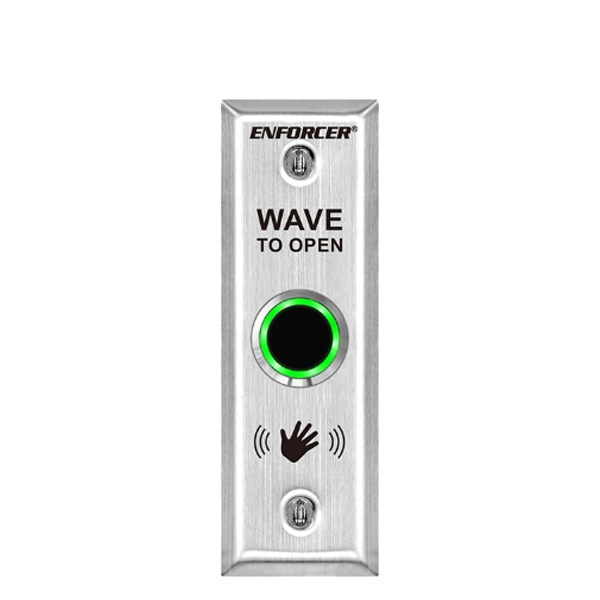

Seco-Larm - No Touch - RTE Plate w/ Adjustable Delay Timer - Outdoor Use - Slimline

Seco-Larm - No Touch - RTE Plate w/ Adjustable Delay Timer - Outdoor Use - Slimline

In stock
SKU SLM-SD-9163-KSQ NSID 6771
$49.88$59.86On Sale You save $9.98 (17%)
Get it shipped Today! Order within:

SLM-SD-9163-KSQ

ENFORCER SD-9163-KSQ "No Touch" Request-To-Exit Plates use IR technology to request egress from a protected area or to activate a device with the simple wave of a hand. Since they require no touch, these plates are ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.

  • Weather-resistant (IP65) for outdoor use
  • Clean and simple no-touch operation reduces the risk of cross-contamination
  • Adjustable sensor range up to 7" (18cm)
  • Stainless-steel plate, available in slimline or single-gang
  • 1A relay, adjustable trigger duration 0.5~20 seconds
  • Selectable LED colors (turns from red to green or green to red) to show if the sensor is activated
Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Type "No Touch" Request-to-Exit Plates with Adjustable Delay Timer, for Outdoor Use
Current Draw Standby- 16mA@12VDC / 25mA@24VDC, Triggered- 25mA@12VDC / 32mA@24VDC
Sensing Range 2"~7" (5~18cm)
Operating Voltage 12~24 VDC
Reaction time 10mS
LEDs - Red Standby (Colors are reversible.)
LEDs - Green Triggered (Colors are reversible.)
Relay Type Form C dry contact 1A@30VDC
Output Time 0.5~30 s, toggle
Switching Capacity 1.2A@24VDC
Operating Temperature -4°~131° F (-20°~55° C)
Dimensions 4-1/2" x 1-1/2" x 1-1/2" (115 x 39 x 39 mm)
Weight 61g
Enclosure IP65
