*Discontinued* Select Hinges - SL27 LL - Heavy Duty Concealed Geared Continuous Hinge - 95" - 8'0" Door - Champagne Finish
Out of Stock
SKU:
SLH-SL2795CHL
NSID:
75645
- $226.91
-
- $226.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

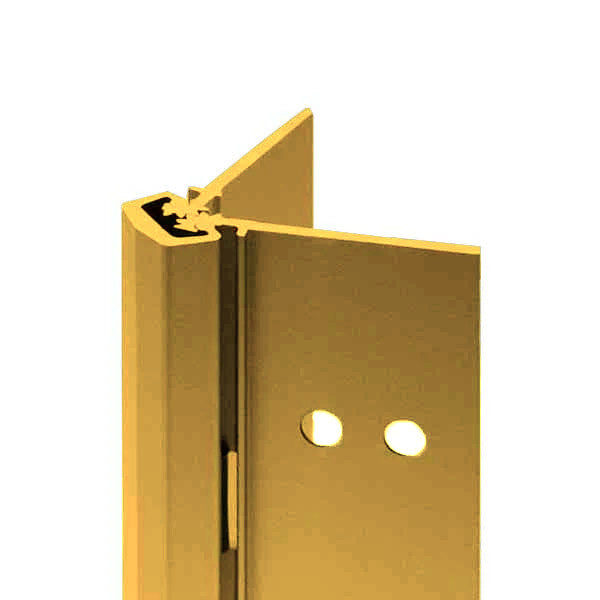

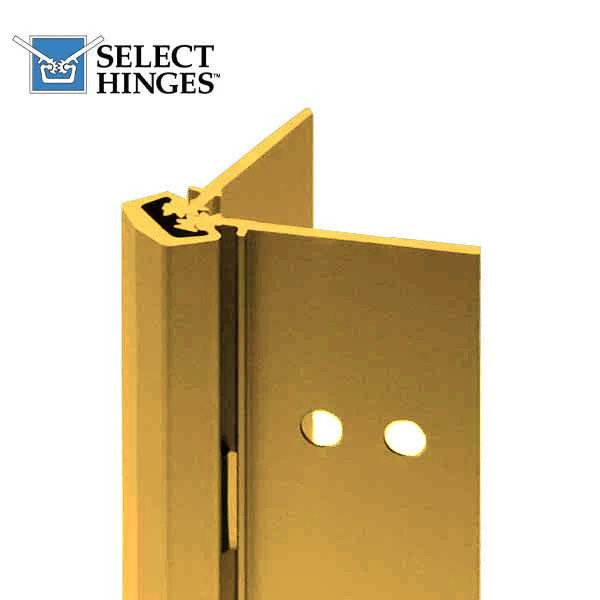

Concealed edge mount architectural grade aluminum hinges. No mortise is required. For new construction or renovation/retrofit. Hinge failure is the most common cause of entrance failure. THe revolutionary SELECT geared continuous hinge puts an end to costly and frustrating hinge failure.
Features:
- For 2" to 2-1/4" doors, up to 1,000 lb
- Frame leaf covers butt hinge preps
- Staggered hole pattern
- Flush mounted (no door inset)
- SL27 LL geared continuous hinges are BHMA grade 1 certified
- Lifetime lubrication
- Anodized after machining
- Consistent templating
- $226.91
-
- $226.91
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Length | 95" (for 8'0" door) |
| Load/Frequency | For 2" to 2-1/4" doors. For low-frequency doors up to 1,000 lb. Including most lead-lined doors. Rivnuts are recommended in the frame and door on extremely tall, extremely heavy, or wide doors |
| Continuous Hinge Type | Full Mortise (Concealed) |
| Usage | Heavy Duty |
| Buy American Act Compliance | Meets Buy American Act - Made in USA |
| Fire Rating | All SELECT hinges have been UL tested and listed to 90-minute Fire Rating Standards without fire pins or studs - at no extra cost |
| ANSI/BHMA Standard | ANSI/BHMA A156.26-2006 Grade 1 |
| Material | Extruded 6063 T6 aluminum alloy with self-lubricating polyester thrust bearings |
| Finish | Champagne |
