Dormakaba - Simplex

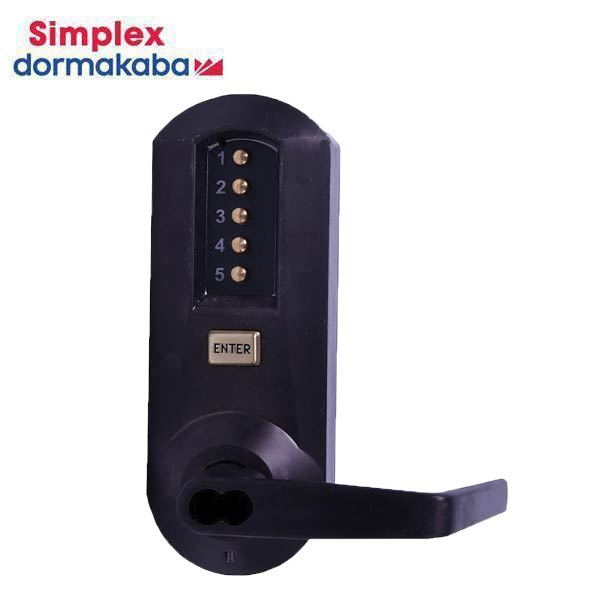

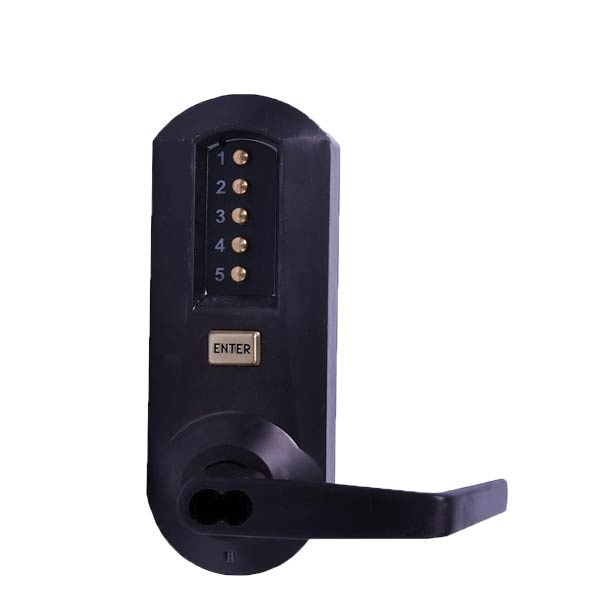

Simplex - 5041S - Mechanical Pushbutton Cylindrical Lever Set - FSIC - Winston Lever Set - 2¾" Backset - Dark Bronze - Grade 1

Simplex - 5041S - Mechanical Pushbutton Cylindrical Lever Set - FSIC - Winston Lever Set - 2¾" Backset - Dark Bronze - Grade 1

In stock
SKU KABA-5041SWL74441 NSID 66520
$550.80$660.96On Sale You save $110.16 (17%)
Get it shipped Today! Order within:


Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. This fully mechanical lock eliminates the material and labor expense of battery replacements, The Simplex 5000 Series provides exterior access by combination, while allowing free egress. Core Not Included

Features:

  • Combination Entry
  • Key Override: Schlage Interchangeable Core (FSIC )
  • Exterior Combination Change
  • Passage-allows access without using the lock access code. Feature activated from the inside with a thumbturn or key
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing the lock from the door
  • Non-handed, pre-assembled for left-hand door installations—easily changed in the field


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:


Construction:

 Extra heavy-duty solid cast housings; solid cast levers.

Locking Device:

 Cylindrical ½" (13 mm) throw latch, floating face plate, 2¾" (70 mm) backset (UL listed)

Numeric Keypad:

 Vandal resistant, metal pushbuttons

Handing:

 Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Finish:

 Satin Chrome 26D (626)

Key Override:

 FSIC Prep, Schlage; core not included

Backset:

 2¾" (70 mm) backset

Latch:

 ½" (13 mm) throw latch

Minimum Stile Recommended:

 5" (127 mm)

Door Preparation:

 Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

Door Thickness:

 Cylindrical: 1⅜" (35 mm) to 2¼" (57 mm). Pre-assembled to accommodate doors 1⅝" (41 mm) to 2" (51 mm).

Accessibility Standard:

Americans with Disabilities Act (ADA)

Certification:

ANSI/BHMA Grade 1 Certified

Fire Rating:

3-hour UL/ULC fire rating for "A" label doors

Warranty:

3 years manufacturer warranty
