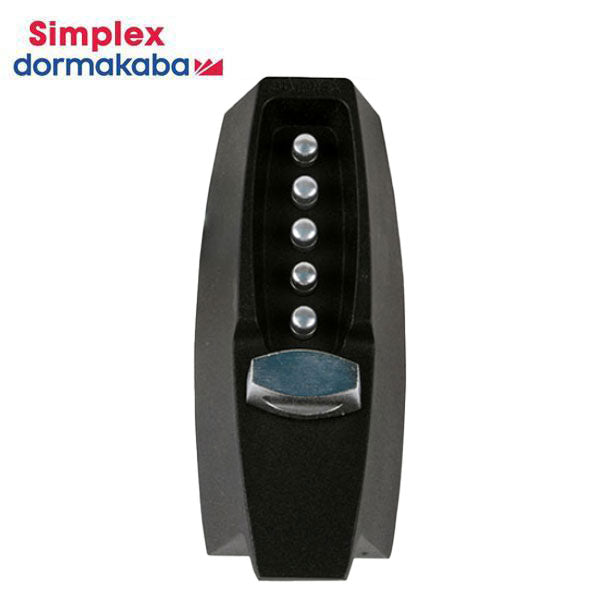

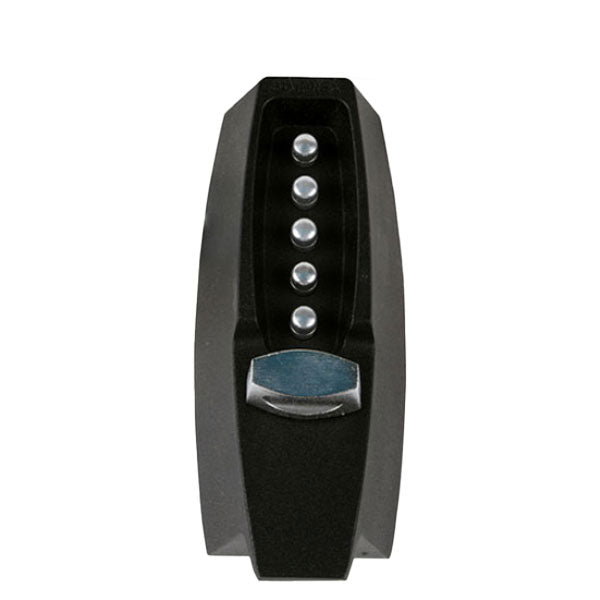

Simplex - 7102 - Mechanical Pushbutton Deadbolt Keyless Lock - 2 3/4" Backset - Black

Simplex - 7102 - Mechanical Pushbutton Deadbolt Keyless Lock - 2 3/4" Backset - Black

In stock
SKU KABA-7102-19-41 NSID 16941
$126.80$152.16On Sale You save $25.36 (17%)
Get it shipped Today! Order within:

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. Simplex 7100 Series provides fully mechanical primary or auxiliary pushbutton access control by exterior combination, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Auxiliary Lock


Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Deadbolt—must be manually relocked
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Field reversible handing
  • Pushbutton Access


Call 1-800-878-6604 for Bulk / Dealer Pricing!
View full details

Details

Specifications:


Construction:

 All metal cast front housing; force-resistant, clutch-protected exterior thumbturn

Locking Device:

 Tubular Deadbolt, Flat

Numeric Keypad:

 Vandal resistant, solid metal pushbuttons

Handing:

 Field reversible

Finish:

 Black 19 (676)

Backset:

 2¾" (70 mm)

Latch:

 1" (25 mm) tubular deadbolt

Minimum Stile Recommended:

 4" (102 mm)

Strike:

 Flat deadbolt strike plate

Door Preparation:
  • 1⅜" (35 mm) diameter through bore
  • 1" (25 mm) diameter cross bore
  • ¾" (19 mm) through bore
  • 2 x ¼" through bores

Door Thickness:

 1⅜" (35 mm) to 2¼" (57 mm), wood or metal
Durability: Weather resistant

Certifications:

BAA/ NAFTA Certification

Warranty:

1-year warranty


Downloads:


Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
