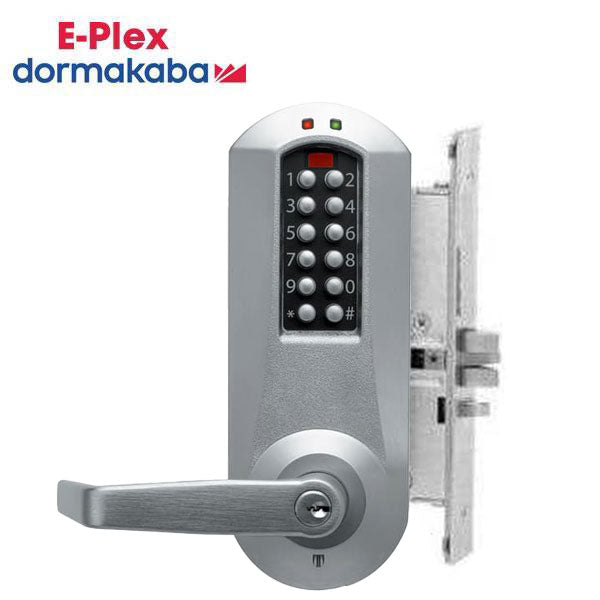

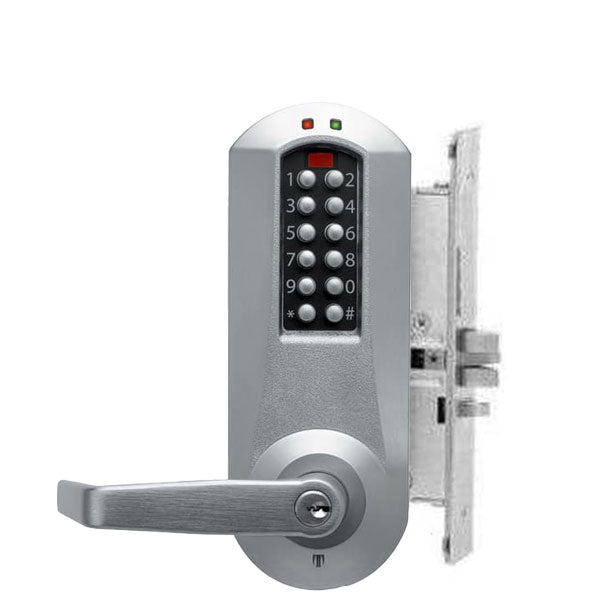

*Discontinued* E-Plex - E5066XS - Electronic Pushbutton Mortise Lever Set - Schlage 'C' - 2 3⁄4" Backset - Satin Chrome - Grade 1

*Discontinued* E-Plex - E5066XS - Electronic Pushbutton Mortise Lever Set - Schlage 'C' - 2 3⁄4" Backset - Satin Chrome - Grade 1

Discontinued
SKU KABA-E5066XSWL62641 NSID 2846
$808.99

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. LectroBolt eliminates wiring to or through the door—no risk of pinched wires

Features:

  • Multiple Users—100 Codes; upgrades to 300 Codes with optional software
  • The most recent 9,000 lock events are recorded in audit trail memory, including use of the mechanical key override. Software is required to view audit events.
  • Locks are programmed via keypad or with optional Microsoft® Excel®-based software— simplifies management of doors and users as facility’s number of users and accesspoints grow
  • Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Authority levels including: Master, Manager, Access User, Service, and Maintenance are included for different access levels
  • Code length—Adjustable to accept 4 to 8 digits
  • Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
  • Relock time—Adjustable from 2 to 20 seconds


View full details

Details

    Specifications:

    Construction:

    		 Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications

    Locking Device:

    		 STD Mortise 1¼" (32 mm) face plate no deadbolt (non-handed)

    Numeric Keypad:

    		 Vandal resistant, solid metal pushbuttons

    Handing:

    		 Non-handed, pre-assembled for left-hand door installations—easily changed in the field

    Finish:

    		 Satin Chrome

    Key Override:

    		 K-I-L Kaba Cylinder (Schlage "C" Keyway) included

    Backset:

    		 2 3⁄4" (70 mm)

    Latch:

    		 3⁄4" (19 mm) latch

    Minimum Stile Recommended:

    		 5" (127 mm)

    Door Preparation:

    		 Easily installs on wood or metal doors; four bolt installation; no wiring

    Door Thickness:

    		 1 3⁄4" (44 mm) to 2 1⁄4" (57 mm); Pre-assembled to accommodate doors 1 5⁄8" (41 mm) to 2" (50 mm)

    Accessibility Standard:

    Americans with Disabilities Act (ADA)

    Certification:

    ANSI/BHMA Grade 1 Certified

    Fire Rating:

    3-hour UL/ULC fire rating for "A" label doors

    Warranty:

    3 years manufacturer warranty


    Downloads:


      Return Policy: We do not accept returns on unsealed products. In order to return a defective item a support ticket is needed. To receive a ticket, please contact DORMA KABA directly at 1-800-849-8324 or visit their support page here. Once you have the ticket contact UHS Hardware for the return.
