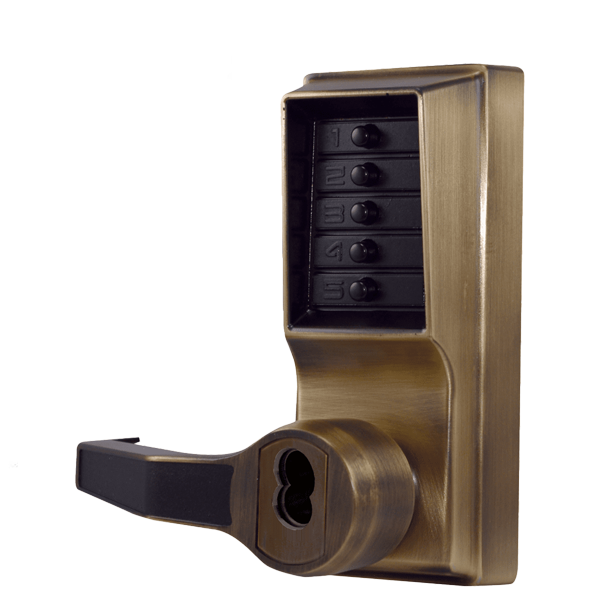

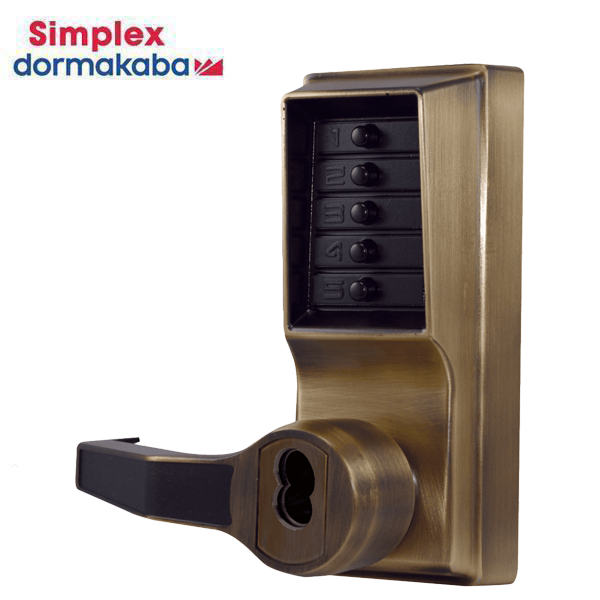

Simplex - LL1021R - Mechanical Pushbutton Cylindrical Lever Set - Less Core - LFIC Sargent - 2¾" Backset - Antique Brass - LH/LHR
In Stock
SKU:
KABA-LL1021R0541
NSID:
80658
- $497.44
-
$596.93 - $497.44
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.
Core not included.
Features:
- Fully mechanical lock eliminates the material and labor expense of battery replacements
- Single access code—one easy-to-manage code for all users
- The lock is easily programmed via keypad without removing the lock from the door
- Factory-handed for Left Hand or Left Hand Reverse. Not field reversible
- Key Override: Large Format Interchangeable Core (LFIC)
- Pushbutton Access
- Construction: Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers
- Door Preparation: Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: D.O.D. Compliant 5220.22M for supplemental access control; weather-resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
- Warranty: 3-Year manufacturer's warranty
Specifications:
| Door Handing | Left handed |
| Electronic | No |
| Latch Description | Dead Latch |
| Strike Dimensions | 1-1/4" x 4-7/8" |
| Box Width | 10-1/2" |
| Door Thickness | 1-3/8" to 2-1/4" |
| Keyway | Less Core |
| Includes Cylinder (s)? | No |
| Latch Description | 1-1/8" x 2-1/4" |
| Rose Escutcheon Dimensions | 3-1/8" x 8-7/8" |
| Latch Bore | 1" |
| Product Width | 3-1/8" |
| Backset | 2-3/4" |
| Height | 7-3/8' |
| Function | Entry /Entrance |
| Numeric Keypad | Vandal Resistant, Solid Metal pushbuttons |
| Throw Latch | 1/2" |
| Minimum Stile | 5" (127mm) |
| Battery | No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements |
