Simplex - LL1021S - Mechanical Pushbutton Cylindrical Lever Lock - LFIC Schlage - 2¾" Backset - Satin Chrome - LH/LHR - UHS Hardware
Simplex LL1021S Pushbutton Lever Lock - 26D - LFIC - Schlage - w/ Key Override in Satin Chrome - LH - UHS Hardware
Simplex - LL1021S - Mechanical Pushbutton Cylindrical Lever Lock - LFIC Schlage - 2¾" Backset - Satin Chrome - LH/LHR - UHS Hardware

Simplex - LL1021S - Mechanical Pushbutton Cylindrical Lever Set - LFIC Schlage - 2¾" Backset - Satin Chrome - LH/LHR

Available to Order
SKU: KABA-LL1021S26D41
NSID: 2903

Please Note: This product has a lead time

$457.32
$499.90
$457.32

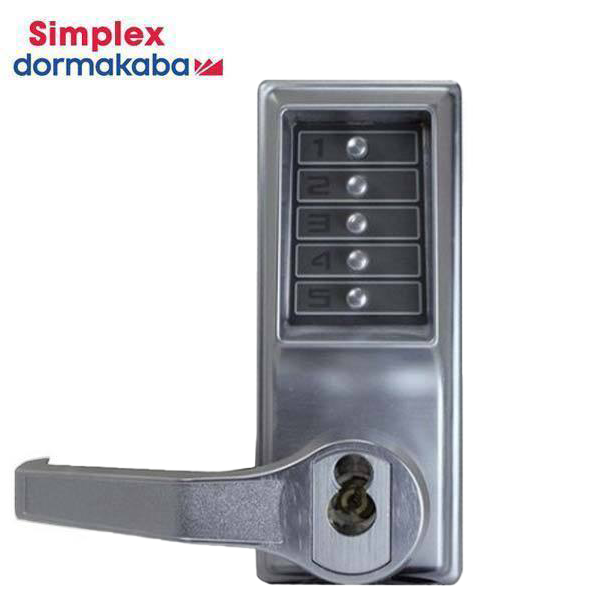

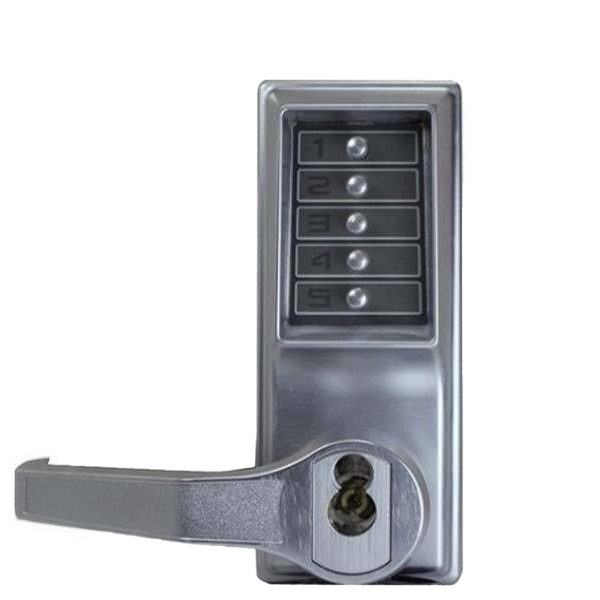

Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards. The Simplex L1000 Series provides exterior access by combination, while allowing free egress. Combination & Key Override. Core not included.

Features:

  • Fully mechanical lock eliminates the material and labor expense of battery replacements
  • Single access code—one easy-to-manage code for all users
  • Lock is easily programmed via keypad without removing lock from the door
  • Factory-handed for Left Hand or Left Hand Reverse. Not field reversible
  • Key Override: Large Format Interchangeable Core (LFIC)
  • Pushbutton Access


Call 1-800-878-6604 for Bulk / Dealer Pricing!

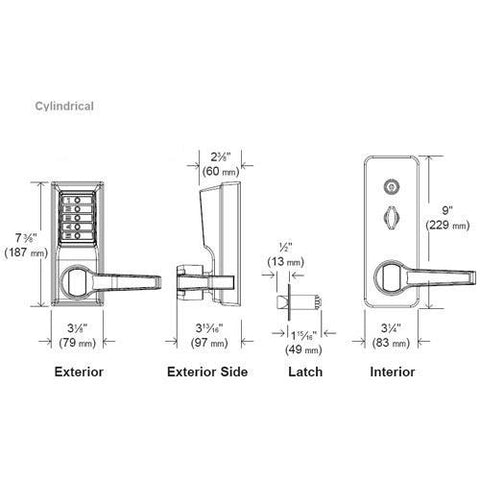

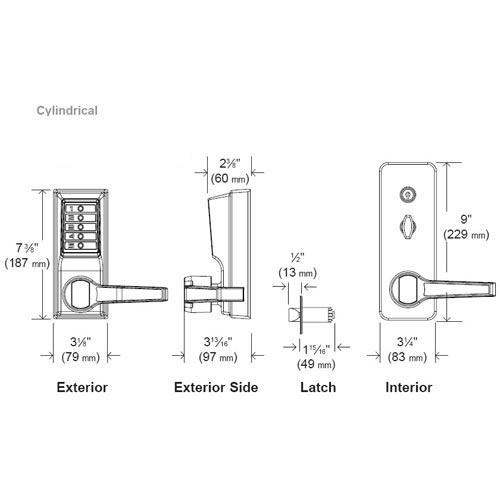

    Specifications:


    Construction:

    Heavy-duty cylindrical lock housing with cast front housing, unified trim plate, and fixed ADA-compliant levers

    Locking Device:

    Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset (UL listed)

    Numeric Keypad:

    Vandal resistant, solid metal pushbuttons

    Handing:

    Left Hand or Left Hand Reverse

    Finish:

    Satin Chrome 26D (626)

    Key Override:

    LFIC, Schlage; core not included

    Backset:

    2¾" (70 mm) backset

    Latch:

    ½" (13 mm) throw latch, floating face plate

    Minimum Stile Recommended:

    5" (127 mm)

    Strike:

    Standard strike plate; ASA strike plate

    Door Preparation:

    Easily installs on wood or metal doors. ASA 161 door preparation with additional through holes.

    Door Thickness:

    1⅜" (35 mm) to 2¼" (57 mm)—Pre-assembled to accommodate 1⅝" (41 mm) to 2" (51 mm) doors

    Accessibility Standard:

    Americans with Disabilities Act (ADA)

    Durability:

    D.O.D. Compliant 5220.22M for supplemental access control; weather resistant

    Fire Rating:

    3-hour UL/ULC fire rating for "A" label doors

    Warranty:

    3 years manufacturer warranty
