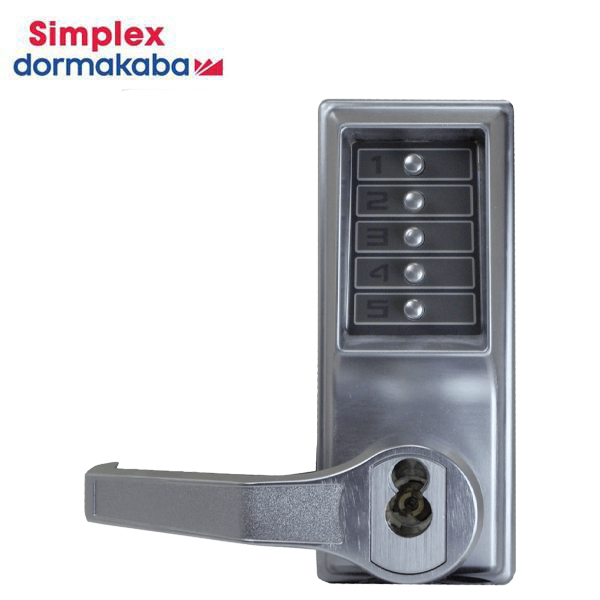

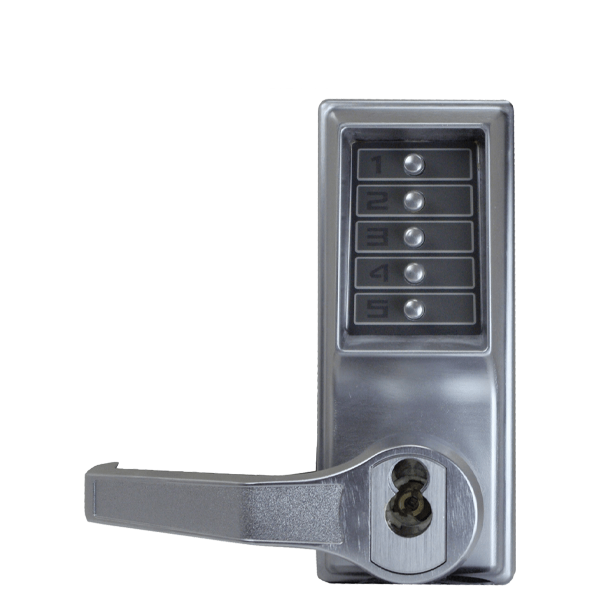

Simplex - LL1041B - Mechanical Push button Cylindrical Lever Lock - Entry/Passage - 2-3/4" Backset - Less Core - Satin Chrome LH/LHR
- $637.77
-
$765.32 - $637.77
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The Simplex LL1041B-26D-41 series of Simplex Pushbutton Lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, and it also provides exterior access by combination, while allowing free egress. Unican Kaba Ilco Simplex is the leader in top-of-the-line security solutions that presents an industrial strength combination lock with high quality security products for over 100 years now. For a security lock, the highly weather-resistant Simplex L1000 Series earns an impressive Grade 1 rating from ANSI (American National Standards Institute) - this rating is the highest one they give out for quality. The Simplex L1000 grants entry upon successful validation of a 1 to 5-digit code that you pre-program into the lock. Being vandal-protected hardware, the Simplex series of PIN-based locks finds widespread acceptance in high-traffic commercial, institutional, and government buildings throughout the world.
Features:
- Satin Chrome Finish
- 100% push-button lock
- Keyless Lock thats simple to install, use and maintain
- Thousands of possible codes combinations
- ADA-compliant lock
- Cylindrical lock with combination entry, key override, and passage
- Low maintenance with no batteries or wires eliminates the material and labor expense of battery replacements
- Covers the existing standard ASA 161 door hole
- Factory-handed left-hand or left-hand reverse-handing operation; not field reversible
- UL-listed hardware
- Very Economical - a cost-effective access control solution
- Its lock is easily programmed via keypad without removing the lock from the door
- Single access code feature makes 'one easy-to-manage code' for all users
- Vandal-resistant hardware with solid metal pushbuttons
- Cylindrical latch with 3-hour UL/ULC fire rating on "A" labeled doors
- Best and Equivalents (6 or 7-pin length) as key override feature; core not included
- It easily installs on wood or metal doors
- Minimum stile recommended: 5" (127 mm)
- Floating face plate
- Cylindrical throw latch: 1/2 inch (13 mm) throw latch
- 3-year manufacturer warranty
Specifications:
| Combinating | SFIC - Small Format interchangeable Core |
| Door Prep | 2-1/8" x 1" with two 1" holes for combination change and passage option, and two 1/4" holes for mounting bolts |
| Door Thickness | 1-3/8" - 2-1/4" |
| Door Type | Wood or metal |
| Environment Rating | Highly Weather Resistant |
| Function | Entry/Passage |
| Grade | Grade 1 - Heavy Duty Commercial |
| Backset | 2-3/4" |
| Knob / Lever | Lever |
| Keyway | Less Core |
| Key Override | Small Format Interchangeable Core (SFIC) 6 or 7Pin |
| Pin Access | Single Code 1 - 5 Digits (Pressed individually or simultaneously) |
| Handing | Left Hand / Left-handed Reversible |
| Pinning | 6-Pin or 7-Pin - Less Core |
| Standards / Ratings | ANSI 156.2 / Grade 1 / 3-Hour UL / ULC Fire Rating for "A" Label Doors |
| Strike Type | ASA 4-7/8" |
