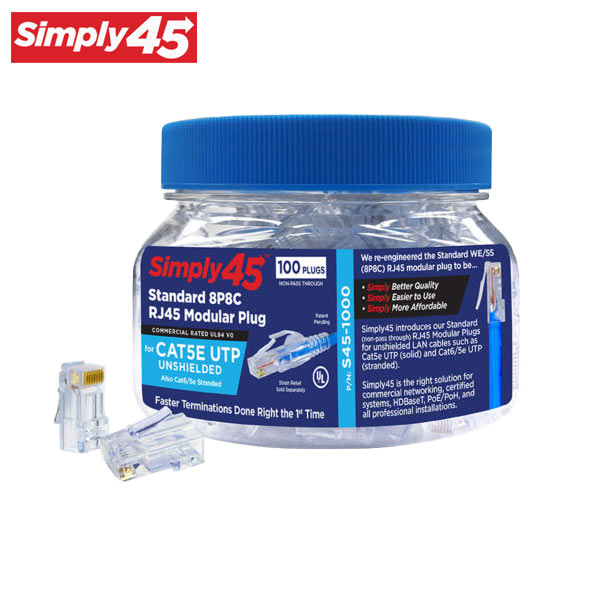

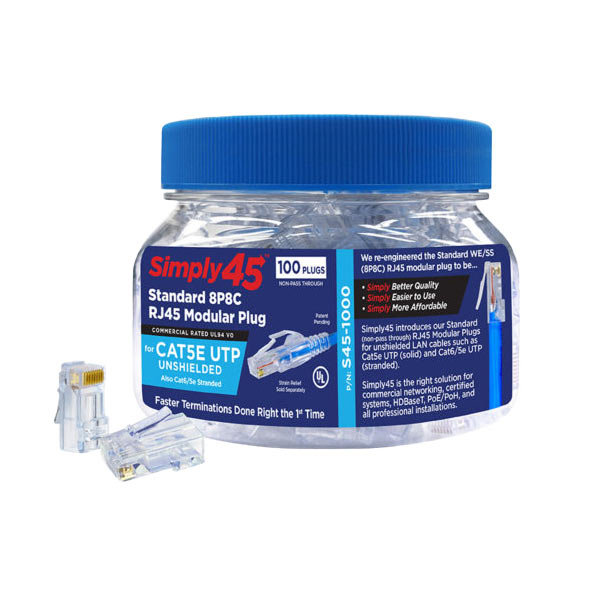

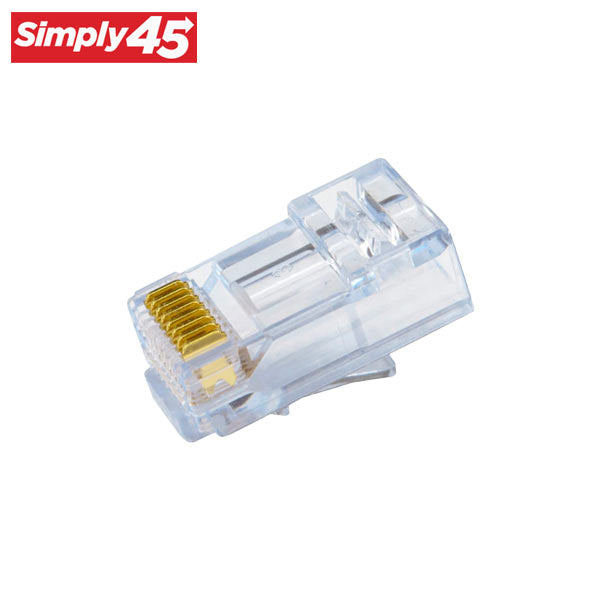

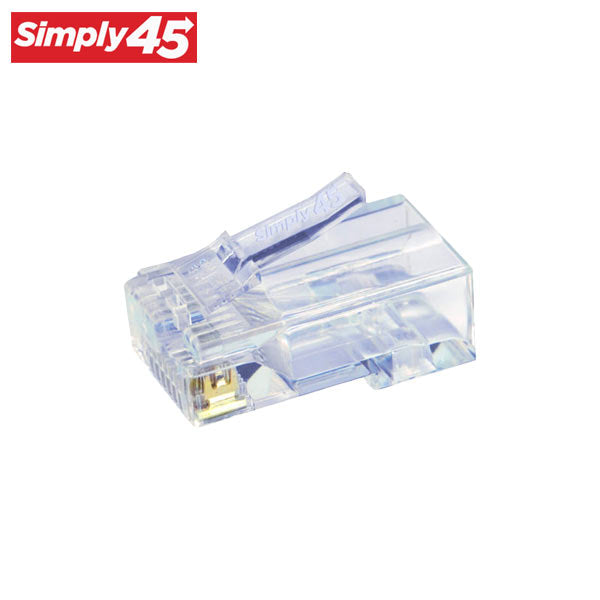

Simply45 - S45-1000 - Unshielded - Standard WE/SS (8P8C) RJ45 Modular Plugs - Blue Tint - Commercial Rated - for Cat5e UTP Solid / Cat5e/6 UTP Stranded - Jar of 100
In Stock
SKU:
SIM-S45-1000
NSID:
19338
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $37.90
-
$41.59 - $37.90
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
This is a Jar of 100 Simply45 S45-1000 Unshielded Standard WE/SS (8P8C) RJ45 Modular Plugs for 24AWG Cat5e UTP Solid, 28-26 AWG Cat5e/6 UTP Stranded LAN cables. Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Features
- Single Piece Design
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Fits Solid and Stranded LAN Cables
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
Specifications
| Performance: | Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Wire Cond(s) OD: | 24 AWG Solid/ 28-26 AWG Stranded: 0.95mm - 1.05mm (0.037” - 0.041”) |
| Max LAN Cable OD: | 6.4mm (0.252”) |
| Supports PoE/PoH: | Yes |
| Cable Fire Resistance Ratings: | Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass |
| Flame Autoextinguish: | UL 94V-0, IEC 60695-11-10 |
| Contact Material: | Phosphor Bronze - .012" thick |
| Contact Plating: | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Plug Material: | Polycarbonate |
| Plug Tolerances and Dimensions: | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Conductor Type(s): | Solid and Stranded |
| Operating Temperature: | -40º C to +70º C |
| Insertion/Extraction Life: | 2000 Minimum Cycles |
| Contact Resistance: | 20 Milli-Ohms max |
| Current/Voltage: | 30 VAC/42 VDC at 1.5 Amps |
| Compliance: | UL Listed, RoHS, FCC, NEC |
| EAN/UPC: | 817777017755 |
