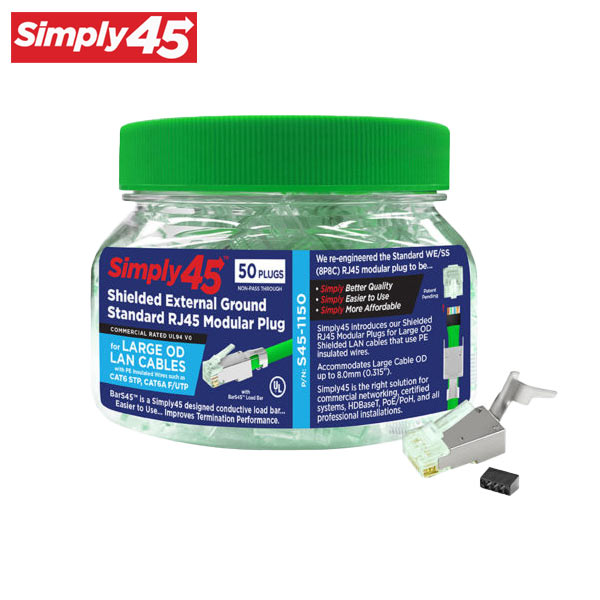

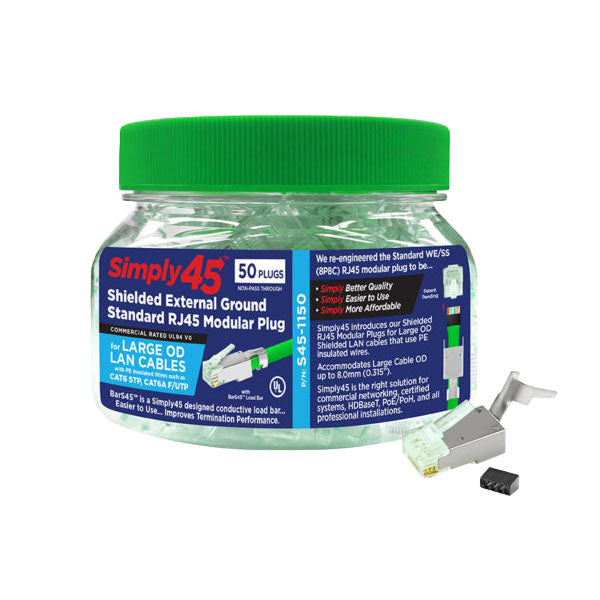

Simply45 - S45-1150 - Shielded - External Ground Standard WE/SS (8P8C) RJ45 Modular Plugs - Green Tint - Commercial Rated - w/ Bar45 Load Bar - for Large OD Cat6 STP / Cat6A F/UTP - Jar of 50
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $88.95
-
$106.74 - $88.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

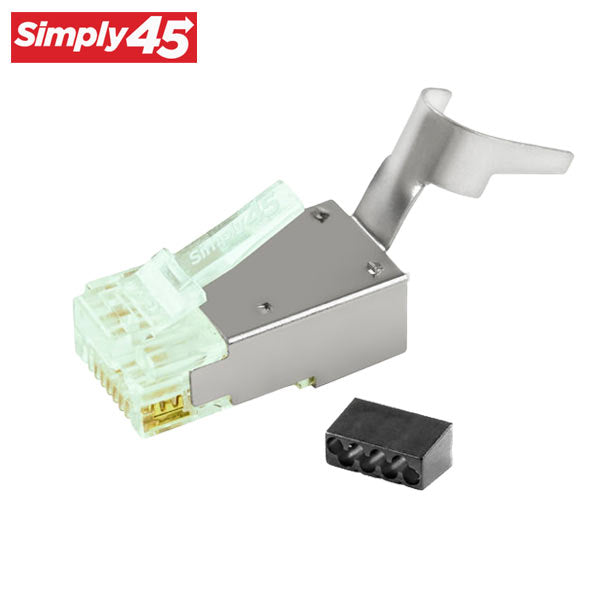

This is a Jar of 50 Simply45 S45-1150 Standard WE/SS (8P8C) Shielded with External Ground RJ45 Modular Plugs for PE Insulated Wire Conductors such as found on Cat6 Shielded STP and Cat6a F/UTP LAN cables. The Simply45 S45-1150 RJ45 shielded modular plug provides better signal isolation and terminated performance than other shielded RJ45 modular plugs for larger diameter Shielded LAN cables using PE (solid polyethylene) insulated wire conductors.
The exclusive Simply45 Bar45 are load bars designed to match specific Simply45 RJ45 modular plugs to improve termination performance and SIMPLIFY the termination process. The innovative S45-1150 Bar45 are designed specifically for the S45 1150 and are the easiest to use load bars ever made for larger shielded LAN cables such as Cat6 STP and Cat6a F/UTP with PE insulated wires.
Features
- Two-Piece Plug
- Bar45 Load Bar
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- Fits Solid LAN Cables
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
Specifications
| Performance: | Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Wire Cond(s) OD: | 23 AWG: 1.10mm - 1.20mm (0.043” - 0.047”) |
| Max LAN Cable OD: | 8.0mm (0.315”) |
| Supports PoE/PoH: | Yes |
| Cable Fire Resistance Ratings: | Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass |
| Flame Autoextinguish: | UL 94V-0, IEC 60695-11-10 |
| Contact Material: | Phosphor Bronze - .012" thick |
| Contact Plating: | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Plug Material: | Polycarbonate |
| Shielded Material: | Hard Brass |
| Shielded Plating: | 80 Micro-Inch minimum Nickel Plating |
| Plug Tolerances and Dimensions: | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Conductor Type(s): | Solid and Stranded |
| Operating Temperature: | -40º C to +70º C |
| Insertion/Extraction Life: | 2000 Minimum Cycles |
| Contact Resistance: | 20 Milli-Ohms max |
| Current/Voltage: | 30 VAC/42 VDC at 1.5 Amps |
| Compliance: | UL Listed, RoHS, FCC, NEC |
| EAN/UPC: | 817777017762 |
Downloads
Data SheetTermination Instructions
