*Discontinued* Simply45 - S45-1501 - Unshielded - Pass-Through RJ45 Modular Plugs - Blue Tint - Commercial Rated - for Cat5e UTP Solid / Cat5e/6 Stranded - Clamshell of 50

*Discontinued* Simply45 - S45-1501 - Unshielded - Pass-Through RJ45 Modular Plugs - Blue Tint - Commercial Rated - for Cat5e UTP Solid / Cat5e/6 Stranded - Clamshell of 50

Discontinued
SKU SIM-S45-1501 NSID 19349
$26.50

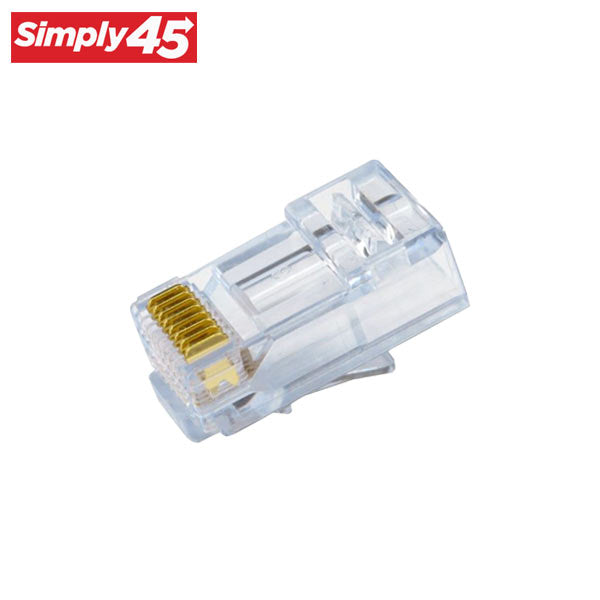

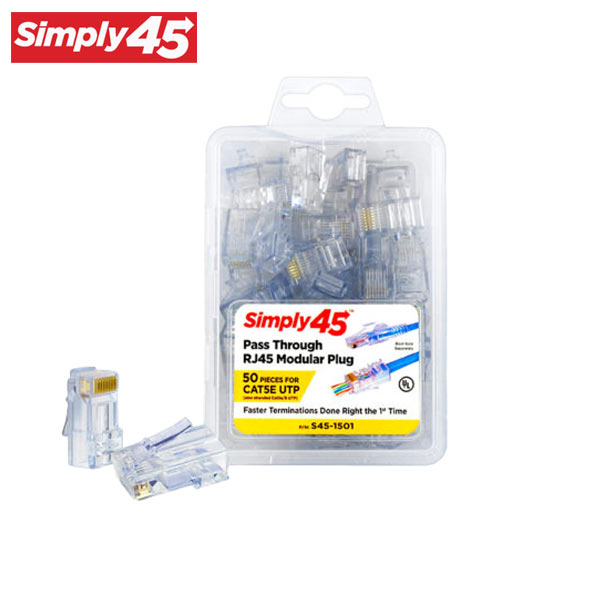

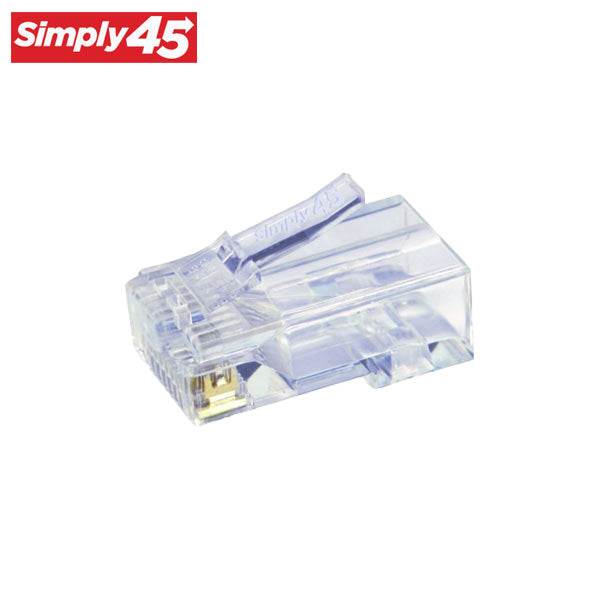

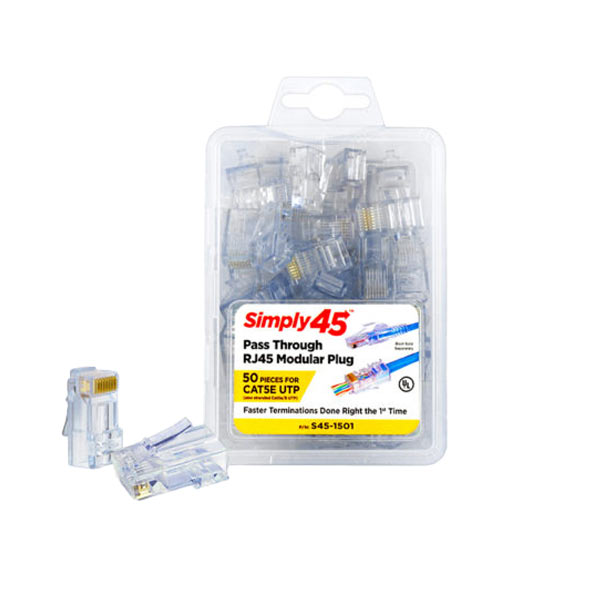

This is a Clamshell of 50 Simply45 S45-1501 Unshielded Pass-Through RJ45 Modular Plugs for 24AWG Cat5e UTP Solid, 28-26 AWG Cat5e/6 Stranded LAN cables. Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

Features

  • Single Piece Design
  • 3 Prong Pin Design with 50µ of True 24ct Gold Plating
  • Fits Solid and Stranded LAN Cables
  • Straight-Line Wire Insert
  • Improved Crosstalk Performance
  • Commercial Rated
  • Color Tinted RJ45 Modular Plugs
  • Convenient Plastic Clamshell
  • UL Listed
  • PoE/PoH Rated
  • Compliant with Industry Standards
  • Lifetime Warranty

View full details

Details

Specifications

Performance: Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7
Wire Cond(s) OD: 24 AWG Solid/ 28-26 AWG Stranded: 0.95mm - 1.05mm (0.037” - 0.041”)
Max LAN Cable OD: 6.5mm (0.255”)
Supports PoE/PoH: Yes
Cable Fire Resistance Ratings: Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass
Flame Autoextinguish: UL 94V-0, IEC 60695-11-10
Contact Material: Phosphor Bronze - .012" thick
Contact Plating: Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Plug Material: Polycarbonate
Plug Tolerances and Dimensions: Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68)
Conductor Type(s): Solid and Stranded
Operating Temperature: -40º C to +70º C
Insertion/Extraction Life: 2000 Minimum Cycles
Contact Resistance: 20 Milli-Ohms max
Current/Voltage: 30 VAC/42 VDC at 1.5 Amps
Compliance: UL Listed, RoHS, FCC, NEC, TAA
EAN/UPC: 817777017656
