Simply45 - S45-1700P - ProSeries - Unshielded - Pass-Through RJ45 Modular Plugs - Red Tint - Commercial Rated - w/ Cap45 - for Cat6/6a UTP - Jar of 100
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $62.95
-
$65.94 - $62.95
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

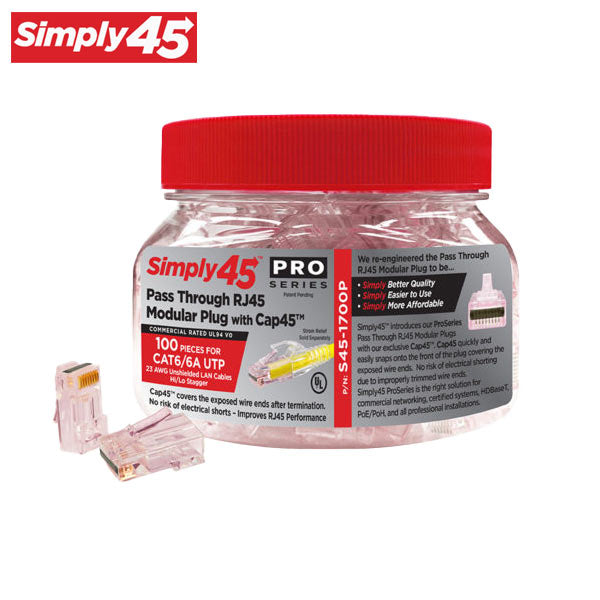

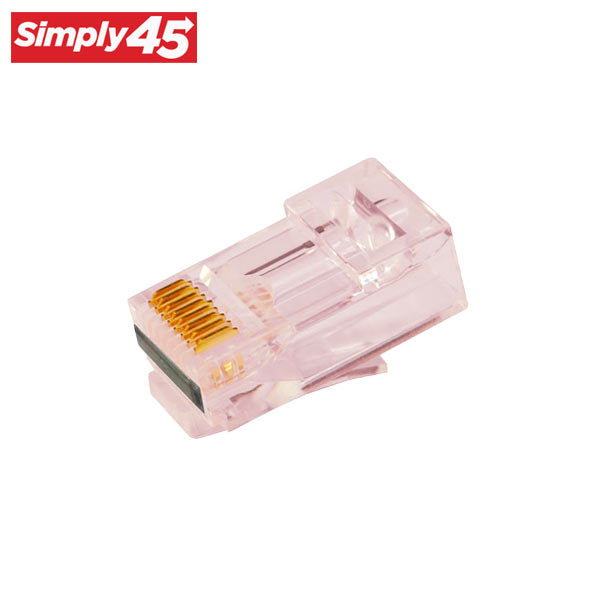

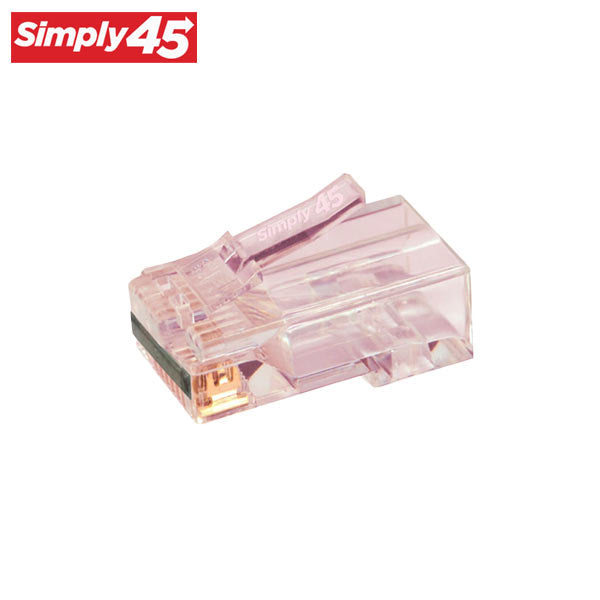

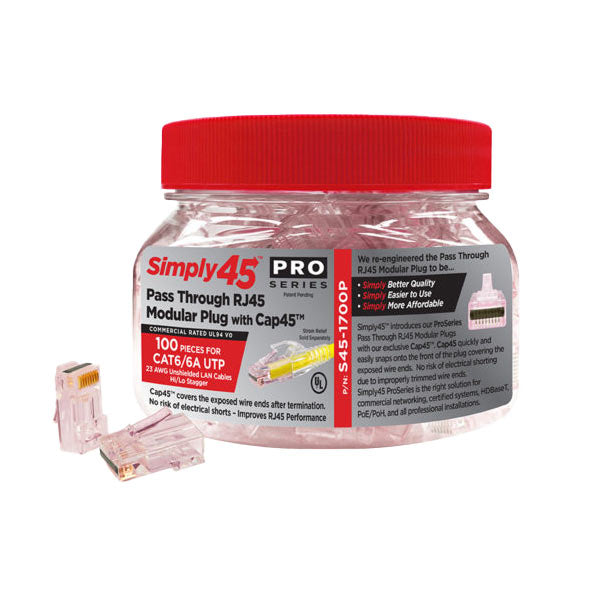

This is a Jar of 100 Simply45 S45-1700P ProSeries Unshielded Pass-Through RJ45 Modular Plugs with Cap45 for 23AWG Solid (Cat6/6a UTP) LAN cables. Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
The Simply45 ProSeries introduces the exclusive Cap45. Cap45 is an isolation cap/bar that snaps onto the front of the pass-through RJ45 plug after termination, covering the exposed wire ends. Cap45 prevents electrical shorting in the RJ45 socket due to improperly trimmed wires or in device sockets that may not be 100% compliant. With Cap45, any electrical risks associated with exposed wire ends are now eliminated completely. Cap45 is a MUST HAVE for all pass-through RJ45 modular plugs used in commercial and certified system terminations.
Features
- Single Piece Design
- Cap45 Isolation Cap/Bar
- 3 Prong Pin Design with 50µ of True 24ct Gold Plating
- High/Low Staggered Wire Insert
- Improved Crosstalk Performance
- Commercial Rated
- Color Tinted RJ45 Modular Plugs
- Wide Mouth Jar for Easy Hand Access
- Color-Coded Jar Caps
- UL Listed
- PoE/PoH Rated
- Compliant with Industry Standards
- Lifetime Warranty
Specifications
| Performance: | Meets or Exceeds ANSI/TIA 568-D.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
| Wire Cond(s) OD: | 23AWG: 1.05mm-1.20mm (0.041”-0.047”) |
| Max LAN Cable OD: | 7.4mm (0.291”) |
| Supports PoE/PoH: | Yes |
| Cable Fire Resistance Ratings: | Commercial Rated, CMP, CMR, CM, CMX, LSZH up to B2ca EuroClass |
| Flame Autoextinguish: | UL 94V-0, IEC 60695-11-10 |
| Contact Material: | Phosphor Bronze - .012" thick |
| Contact Plating: | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Plug Material: | Polycarbonate |
| Plug Tolerances and Dimensions: | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
| Conductor Type(s): | Solid and Stranded |
| Operating Temperature: | -40º C to +70º C |
| Insertion/Extraction Life: | 2000 Minimum Cycles |
| Contact Resistance: | 20 Milli-Ohms max |
| Current/Voltage: | 30 VAC/42 VDC at 1.5 Amps |
| Compliance: | UL Listed, RoHS, FCC, NEC |
| EAN/UPC: | 817777017724 |
Downloads
Data SheetTermination Instructions
