*Discontinued* Tango - Orange5 - Professional Programming Device w/ HPX Software (IMMO) - Basic Set

Out of Stock
SKU: SCO-ORANGE5-IMMO-HPX-delete
NSID: 20651
$899.00
$899.00

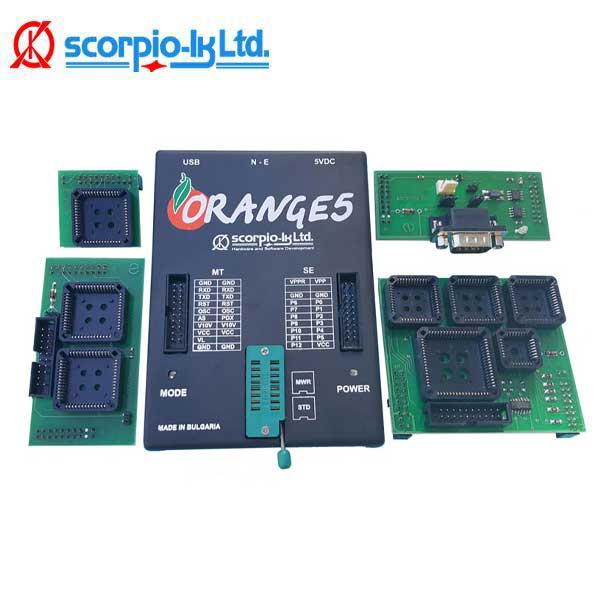

The Orange5 is a professional programming device for memory and microcontrollers. The unique features of the current series programmers is built-in macrolanguage for writing down protocols, which gives fast and easy capability to add new types of microschemes, precisely meeting manufacturers' requirements to read/write algorithms.

This is the Base Unit with Basic Adapters

Software Download Available HERE


$899.00
$899.00
Description
Description
x

Set contains:

  • Orange5 device
  • Orange5 Software
  • Orange5 USB base + Motorola license
  • USB cable
  • SOIC8 clip POMONA with leads
  • DIP8 clip POMONA with leads
  • PLCC extractor
  • BASIC Adapter HC05B / HC705B
  • BASIC Adapter 05 KL-CAN
  • BASIC Adapter HC11A/Exx PLCC52
  • BASIC Adapter TMS370C (attached to deck)

Software

  • Maximum buffer size - 32Mb;
  • Users can create own HPL modules;
  • Edit 8 and 16 bits HEX values, as well as ASCII.
  • Read and write files in BIN, HEX, S19 formats;
  • Visual compare mode with highlight values;
  • Write all chip or marked area;
  • Support for multiple configuration files;
  • Auto-save backups;
  • Extended set of operations on the buffer;
  • Works under Windows XP,WIN7,WIN8,WIN10 (32 bit and 64 bit).
  • IMMO HPX for Orange5
  • Software Instructions PDF Download HERE
  • Software Download Available HERE

Technical Info

  • Connection and power via USB interface (USB2.0)
  • Universal easy to plug panel ZIF16 for EEPROM
  • Control of contacts in the sockets
  • Two expansions connectors compatible with Orange4 and Omega MTRK
  • Protection against overcurrent
  • Overload voltage protection
  • Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
  • Three adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional fixed 10V for microcontrollers.
  • High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
  • Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0...5.0V) adjustment.
  • Capability of functional emulation of USB CDC devices.
  • Built-in 32-bit virtual machine
  • Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);

*** Please Note: This is a 3rd Party Programmer, We offer NO Support and NO Warranty. This item is very fragile and can be damaged from misuse, an inexperienced user and wrongful or too much pressure applied. If the tool malfunctions or breaks in the first 30 days of purchase, we will offer a discount on another SCORPIO programmer but we will not refund or replace the programmer***

Note: This is a 3rd Party Programmer, We offer NO Support and NO Warranty. This item is very fragile and can be damaged from misuse, an inexperienced user and wrongful or too much pressure applied. If the tool malfunctions or breaks in the first 30 days of purchase, we will offer a discount on another SCORPIO programmer but we will not refund or replace the programmer***

Key programming machines cannot be returned after they have been registered
