TELL - 1500AHR - 12"x 12" - Inverted "Y" Blades - Hurricane Rated Louvre
Available to Order
SKU:
TELL-1500AHR-12-12
NSID:
37266
- $353.78
-
$442.23 - $353.78
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
At Tell Manufacturing, They’ve been creating trusted, convenient ways to access and secure commercial buildings and homes for nearly four decades. Established in 1986 and headquartered in Lititz, Pennsylvania, Tell builds a complete line of commercial-grade security hardware and hollow metal doors for the contract hardware, metal building, modular building, and retail channels.
Inverted "Y" Blades with Security Grille Meets up to 350 ft lb Impact Rating for Severe Windstorm Rating and Carries FBC Approval. Includes Weatherproof Electro-Galvanized Finish for Exterior Applications.
Features:
- Material: 18 gauge CRS frame and blades with paintable electro galvanized finish; 12 gauge CRS security grille. Minimum size 6" x 6", maximum size 24" x 64"
- Door Thickness:1 3/4"
- Finish: Standard Electro-Galvanized finish for Exterior Use with Bronze (dark brown) powder coat finish (standard).

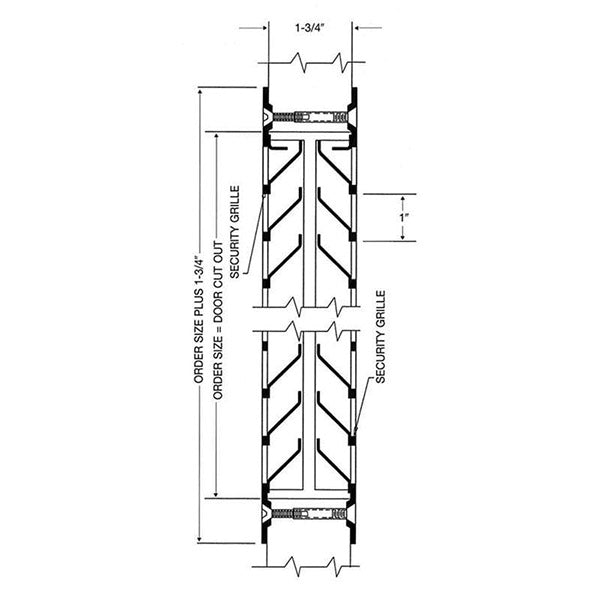

- Construction: 2-rows of Inverted, split “Y” blades with 1” blade spacing are attached to welded frame with by interlocking construction. Non-vision design.
- Security Frame: Security grille is welded to interior and exterior of louver with 13/16” square openings. Thru-bolted to door.
- Fasteners: #8 Phillips head thru-bolts with blank head one side.
- Size: 12" x 12"
Ratings:
- Inverted "Y" Blades with Security Grille Meets up to 350 ft lb Impact Rating for Severe Windstorm Rating.
- Missile Impact: TAS 201, ASTM E1996 (impact 350 ft lb, Missile Level D, DP Rating 60 psf)
- Cyclic Wind Pressure Loading: TAS 203, ASTM E1886
- Air Infiltration, Water Resistance, Structural Loading, Uniform Static Air Pressure, Forced Entry: TAS 202, ASTM E283, ASTM E330, ASTM E331, FBC 2411 3.2.1
-
Windstorm Resistance, Door Components: ANSI A250.13
- Certified by Warnock-Hersey
- Florida Building Code Approval File #FL13341
- Florida Building Code 2017 File # FL13341-R3
