*Discontinued* TELL - 7300 - Rim Exit Device - Grade 1 - Surface Mounted - Stainless Steel - 36"

*Discontinued* TELL - 7300 - Rim Exit Device - Grade 1 - Surface Mounted - Stainless Steel - 36"

Discontinued
SKU TELL-EX100314 NSID 52384
$198.80$238.56On Sale You save $39.76 (17%)

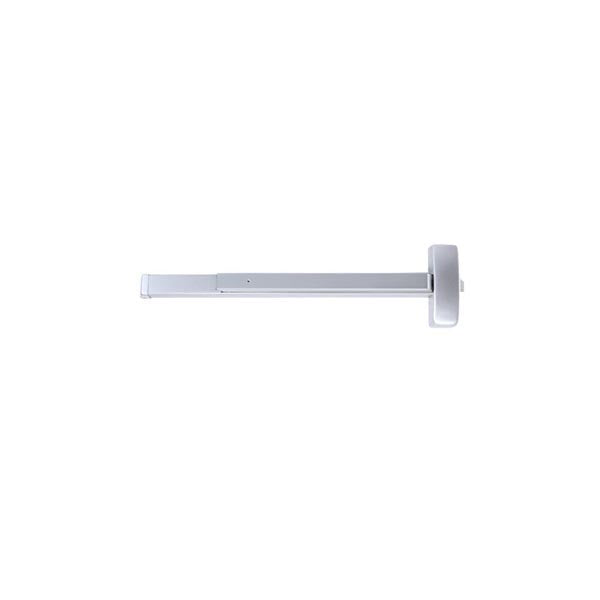

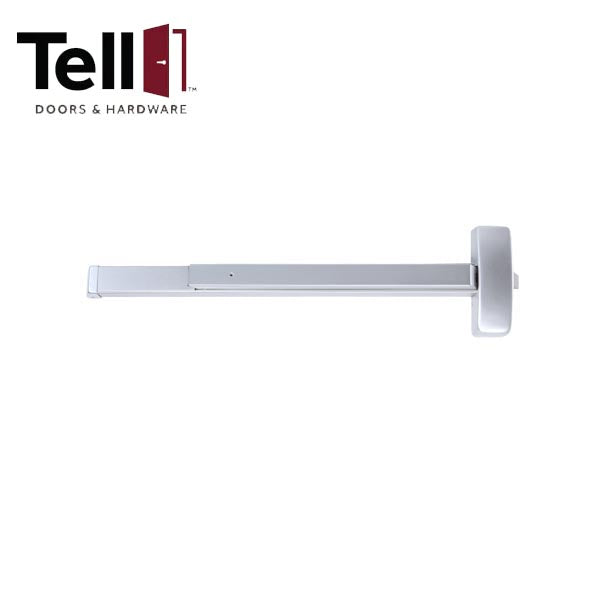

Tell Manufacturing's 7300B is a Grade 1 rim exit device for commercial applications. The 7300B series is surface mounted and will fit on doors 28 in. to 36 in. W. This rim panic will work on doors 1-3/4 in. to 2 in. T and has a stainless steel finish. This surface mounted rim panic complies with ANSI A156.3 and is UL/ULC Listed and can be mounted on wood or metal doors.

  • Complies with ANSI A156.3 grade 1
  • UL/ULC listed
  • Fits doors 28 in. to 36 in.
  • Works on doors from 1-3/4 in. to 2 in. T
  • Stainless steel 5/8 in. throw with dead latch feature
  • Accommodates wood or metal doors
View full details

Details

Performance Complies with ANSI A156.3, 1994
Grade 1
UL/ULC listed
Rail
 Fits 28” to 36” doors
Latch Stainless steel 5/8” throw
Deadlatch feature
Backset 2-3/4”
Strike 416 ASA Standard
Slotted holes for adjustments
Other strikes available
Cylinder Schlage (SCC) - C keyway
6-pin solid brass
Keyed different (KD)
Fasteners Accommodates wood or metal doors
Door Range
 1-3/8” - 2”
Door Preparation
 Surface mounted
Warranty Lifetime limited
Exterior Trim
 Exterior pull blank or cylinder
Ball knob trim
Lever trim
Thumbpiece trim with rim cylinder
Escutcheon lever trim
