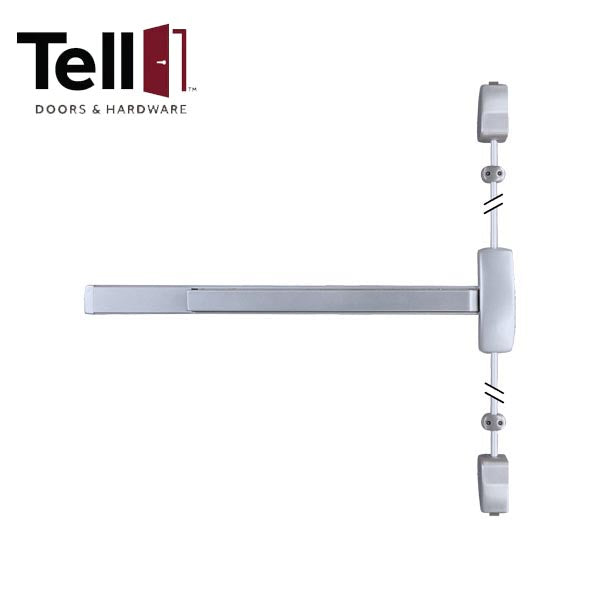

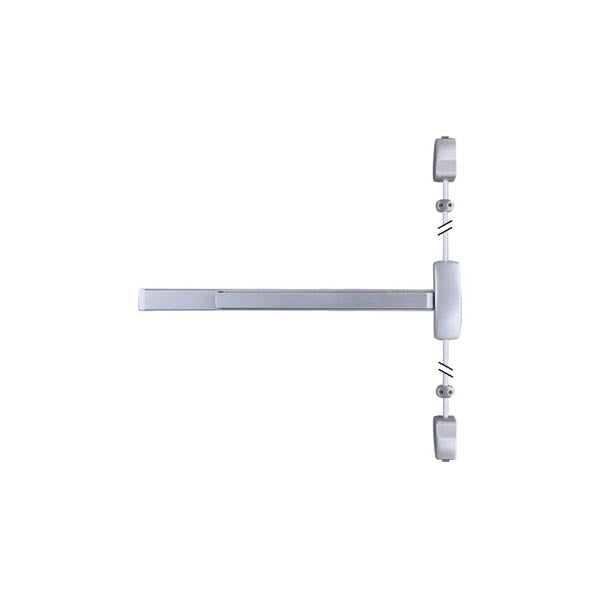

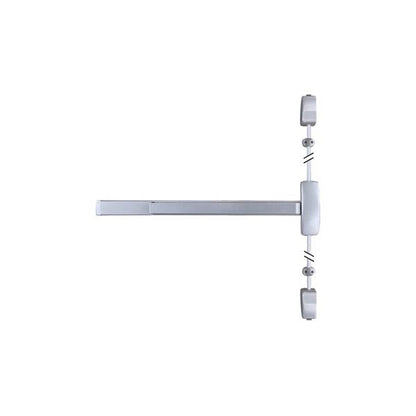

TELL - 7400 - Vertical Rod Exit Device - Grade 1 - Optional Finish - 36"

TELL - 7400 - Vertical Rod Exit Device - Grade 1 - Optional Finish - 36"

In stock
SKU TELL-EX100315 NSID 52386
$263.25$315.90On Sale You save $52.65 (17%)
Get it shipped Today! Order within:

Tell Manufacturing's 7400B is a Grade 1 vertical rod exit device for commercial applications. The 7400B series is surface mounted and will fit on doors 28 in. to 36 in. W, which is easily field sizable. This vertical rod panic will work on doors 1-3/4 in. to 2 in. T. The vertical rod panic has a stainless steel finish. The 7300 series complies with ANSI A156.3 and is UL/ULC Listed.

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specification:

    Performance Grade 1
    Complies with ANSI A156.3, 1994
    UL/ULC listed
    Rail Fits 28” to 36” or 36” to 48” doors
    Easily field sizable
    Latch Pullman latch bolts top and bottom
    Stainless steel 1/2” throw
    Backset 2-3/4”
    Strike Slotted holes for adjustments
    Cylinder SCC - C keyway
    6-pin solid brass
    Keyed different (KD)
    Fasteners Accommodates wood or metal doors
    Finishes US32D Satin Stainless Steel
    Aluminum
    Warranty Lifetime limited
