TELL - AD100221 - Narrow Style Deadlatch Lockset - 1 1/8" Backset - Aluminum and Duronodic Finishes - Less Cylinder and Lever Handle

TELL-LC2681

*Lever and Cylinder Sold Separately.*

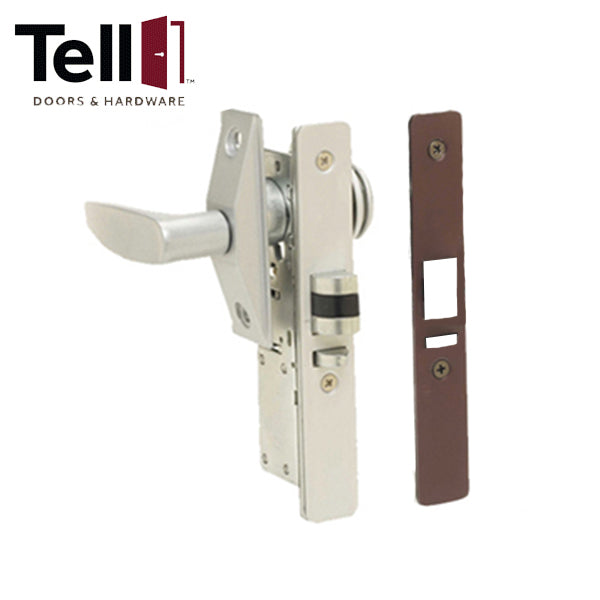

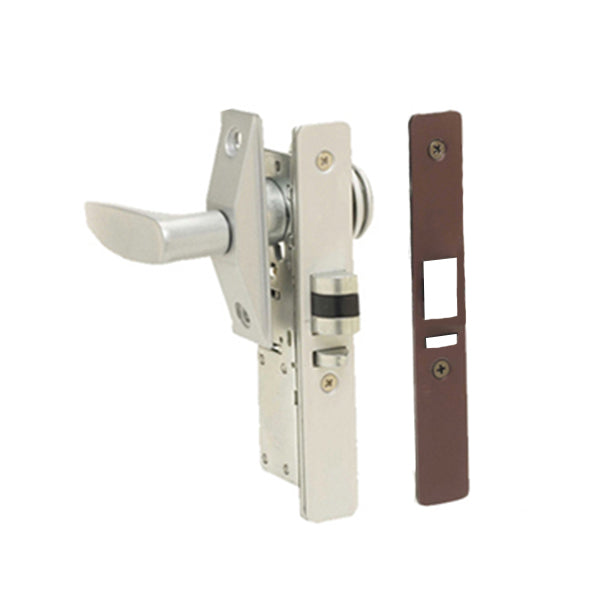

This is a AD100221 Narrow Style Deadlatch Lockset which includes 2 faceplates of aluminum and duronodic finishes.

Feature

• 1" x 6" steel, zinc plated case
• When in locked position, the auxiliary bolt is engaged by pushing against the strike creating additional security to the latchbolt
• 1-1/8" backset
• 1" x 6-7/8" aluminum AND duronodic faceplates included
• A reverse turn of the key (while bolt is held retracted) retains the latchbolt, to allow two way traffic for buildings that require free entrance at times and exit only at other times
• Less cylinder - accepts any standard 1-5/32" mortise cylinder or thumbturn with proper cylinder cam from either/or both sides
• Key-controlled bolt holdback feature.
• 5/8" x 1" x 1/2" throw, non-handed
• 2-5/8" x 1-7/8" stainless steel strike plate
• Zinc diecast lever handle
• Deadlocks latchbolt, and prevents jimmying opening the latchbolt with knife-like objects or tools
