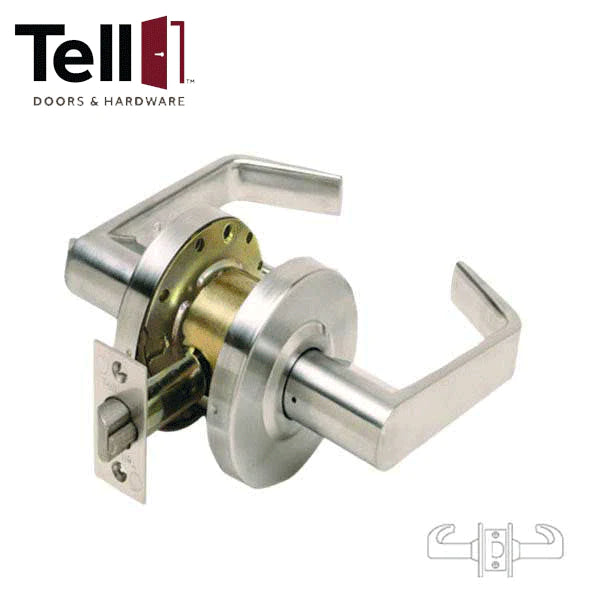

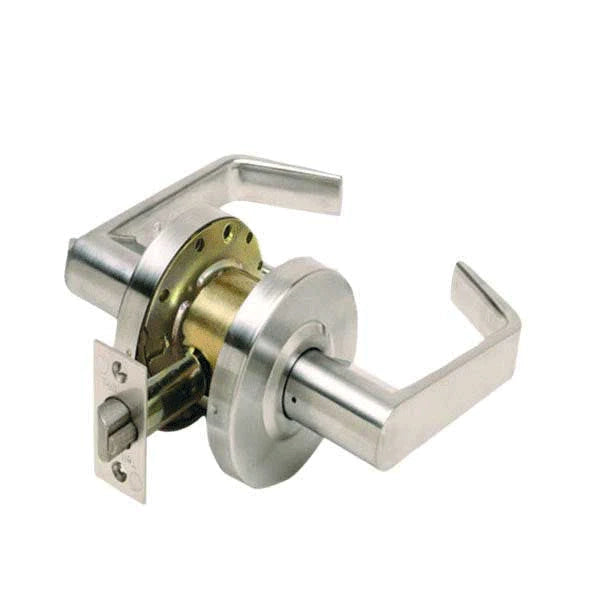

TELL - CL100130 - Heavy Duty Cylindrical Leverset - Satin Chrome - 2-3/4" Backset - Grade 2 - Passage

TELL - CL100130 - Heavy Duty Cylindrical Leverset - Satin Chrome - 2-3/4" Backset - Grade 2 - Passage

In stock
SKU TELL-CL100130 NSID 51945
$60.02$72.02On Sale You save $12.00 (17%)
Get it shipped Today! Order within:

The LC2475 Lever is a grade 2 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Performance Grade 2 heavy duty
    400,000 cycles
    Compliance UL/ULC listed for 3-hour fire door
    American Disabilities Act (ADA) ANSI A117.1
    ANSI A156.2, Series 400
    Chassis Cylindrical
    Steel coated with zinc dichromate (corrosion resistance)
    Freewheeling clutch for added security
    Independent spring cages
    Handle Lever, Solid cast non-handed
    Latch 2-3/4" Backset, 2-3/8" available
    1" Housing diameter
    1/2" Stainless steel throw
    1-1/8" x 2-1/4" Square corner faceplate
    Strike ASA Strike 1-1/4" x 4-7/8""
    Optional T-Strike 1-1/8" x 2-3/4"
    Optional F-Strike (full lip)
    Rose 3-1/2" diameter
    Cylinder SCC Standard, C keyway
    6-pin solid brass
    Keyed different (KD)
    Keys Two nickel silver per lock cylinder
    Door Preparation 2-1/8" Diameter for lever
    1" Diameter for latchbolt
    Fits standard 161 door prep with thru-bolting
    Warranty Lifetime limited
