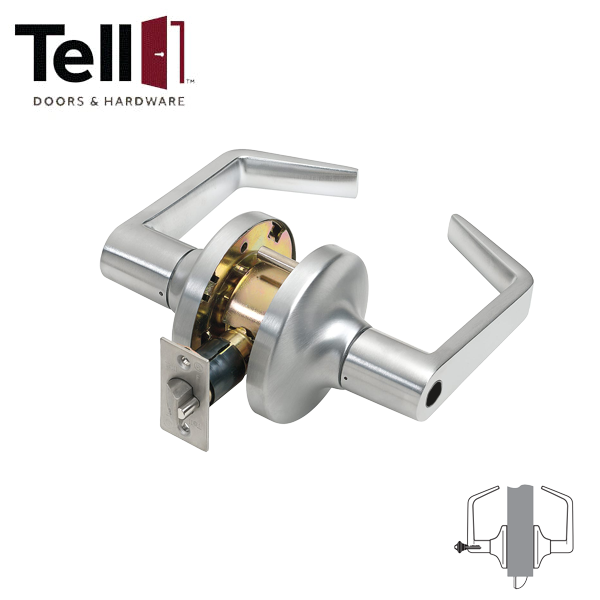

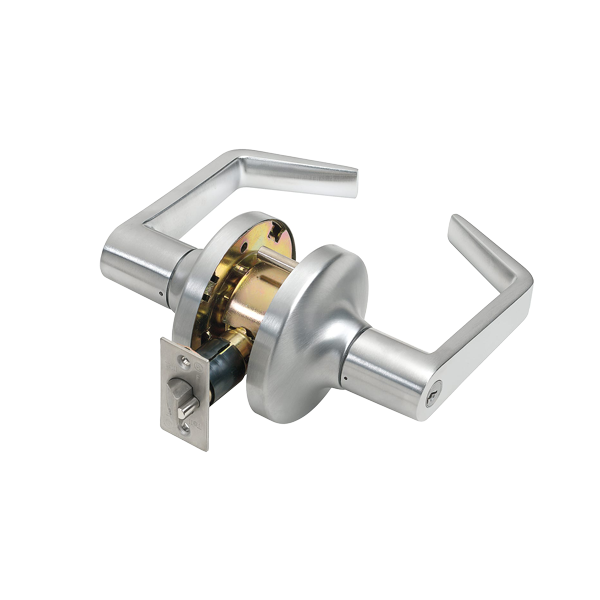

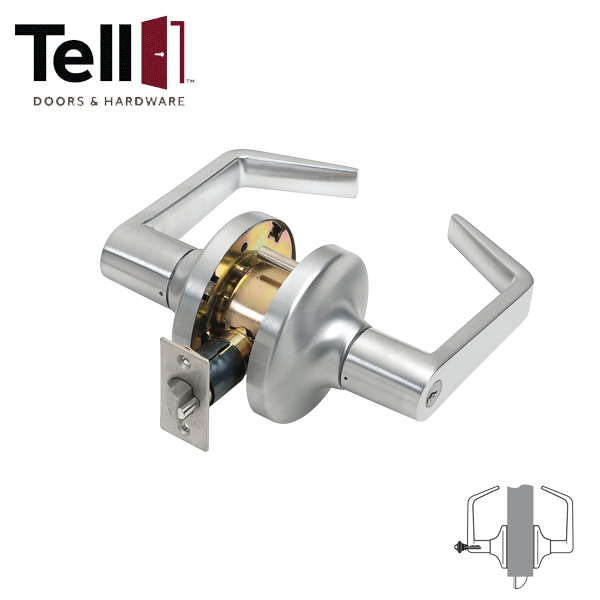

TELL - CL100167 - Heavy Duty Cylindrical Leverset - Satin Chrome - 2-3/4" Backset - Optional IC Core - Grade 2 - Storeroom
Availability:
Available to Order
- Product SKU: TELL-CL100167
- NSID:
-
TELL-CL100167
The LC2486 Lever is a grade 2 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
| Performance | Grade 2 heavy duty 400,000 cycles |
| Compliance | UL/ULC listed for 3-hour fire door American Disabilities Act (ADA) ANSI A117.1 ANSI A156.2, Series 400 |
| Chassis | Cylindrical Steel coated with zinc dichromate (corrosion resistance) Freewheeling clutch for added security Independent spring cages |
| Handle | Lever, Solid cast non-handed |
| Latch | 2-3/4" Backset, 2-3/8" available 1" Housing diameter 1/2" Stainless steel throw 1-1/8" x 2-1/4" Square corner faceplate |
| Strike | ASA Strike 1-1/4" x 4-7/8"" Optional T-Strike 1-1/8" x 2-3/4" Optional F-Strike (full lip) |
| Rose | 3-1/2" diameter |
| Cylinder | SCC Standard, C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | 2-1/8" Diameter for lever 1" Diameter for latchbolt Fits standard 161 door prep with thru-bolting |
| Warranty | Lifetime limited |
TELL-CL100167
The LC2486 Lever is a grade 2 cylindrical, heavy-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
| Performance | Grade 2 heavy duty 400,000 cycles |
| Compliance | UL/ULC listed for 3-hour fire door American Disabilities Act (ADA) ANSI A117.1 ANSI A156.2, Series 400 |
| Chassis | Cylindrical Steel coated with zinc dichromate (corrosion resistance) Freewheeling clutch for added security Independent spring cages |
| Handle | Lever, Solid cast non-handed |
| Latch | 2-3/4" Backset, 2-3/8" available 1" Housing diameter 1/2" Stainless steel throw 1-1/8" x 2-1/4" Square corner faceplate |
| Strike | ASA Strike 1-1/4" x 4-7/8"" Optional T-Strike 1-1/8" x 2-3/4" Optional F-Strike (full lip) |
| Rose | 3-1/2" diameter |
| Cylinder | SCC Standard, C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Preparation | 2-1/8" Diameter for lever 1" Diameter for latchbolt Fits standard 161 door prep with thru-bolting |
| Warranty | Lifetime limited |
