TELL - CL100181 - Guarded Latchbolt w/ Deadlocking Function - 2-3/4" Backset - for KC1100 Series Knobsets - Stainless Steel - Grade 1
In Stock
SKU:
TELL-CL100181-US32D
NSID:
37237
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $10.15
-
$12.69 - $10.15
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

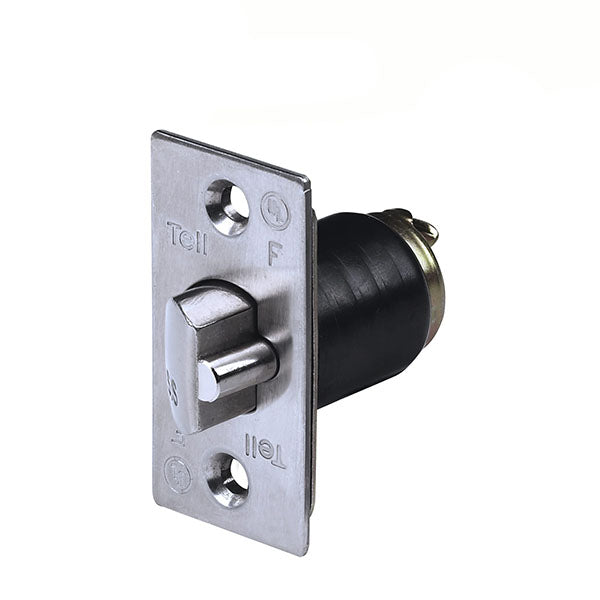

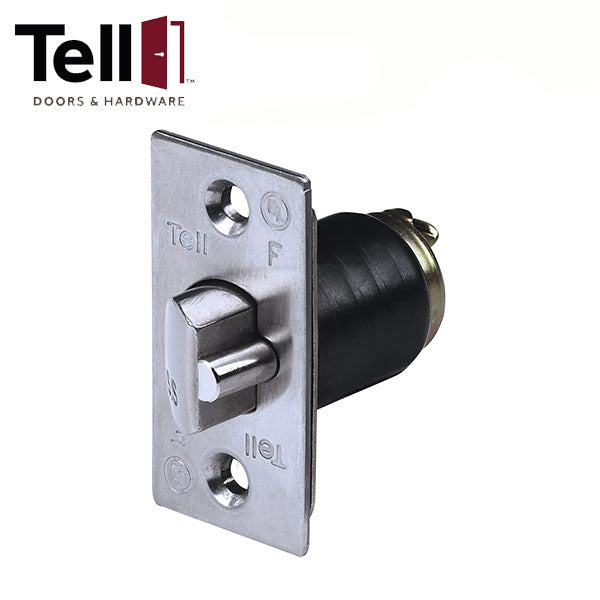

This is a Tell CL100181 2-3/4" Guarded Latchbolt w/ Deadlocking Function for KC1100 Series Knobsets.
Features
- 2 3/4" Backset
- 32D - Stainless Steel Finish
- Grade 1
- Fits 161 Door Prep
Specifications
| Finish | Stainless Steel |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Backset | 2 3/4" |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Door Range | 1-3/8" to 2" |
| Door Preparation |
2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Certifications | Complies with ANSI A156.2 - 2003, Series 4000, Grade 1, 800,000 cycles, UL/ULC listed for 3 hour fire door |
| Manufacturer's Warranty | Limited Lifetime |
