TELL - CL100678 - Heavy Duty - Tubular Deadbolt - Single Cylinder
Available to Order
SKU:
TELL-CL100678
NSID:
51967
- $46.04
-
$55.25 - $46.04
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

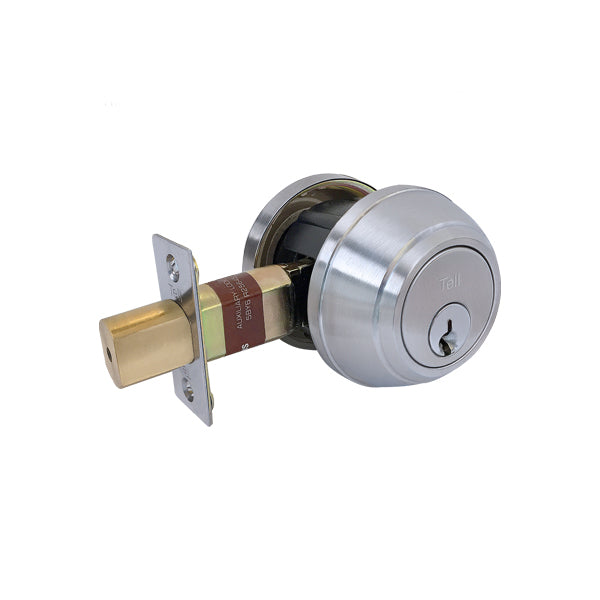

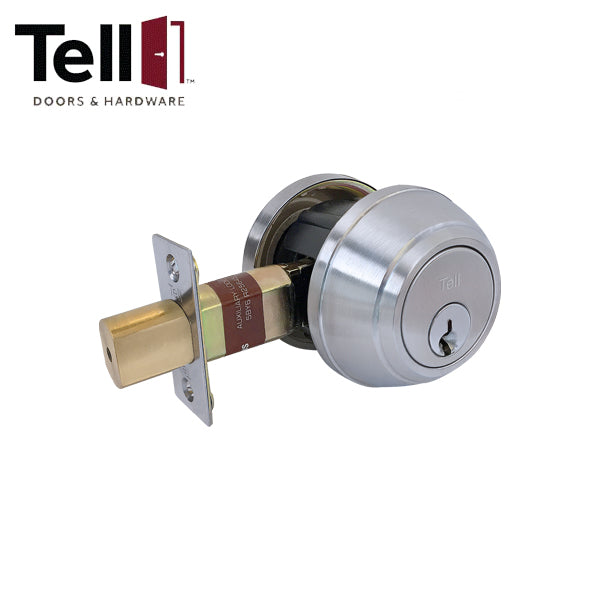

The DB1000 Series is a grade 1 tubular, heavy-duty deadbolt designed for high security. It is designed with a saw-resistant bolt with a 1" throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway. Other finishes available.
| Performance | Complies with ANSI A156.5 Grade 1, 250,000 cycles |
| Chassis | Tubular, steel |
| Deadbolt | 1” housing diameter (stainless steel) 1” throw with roller bar (added security for hacksaw or reciprocating blade cutting) 1” x 2-1/4”, faceplate |
| Latch | 2-3/4” Backset |
| Strike | 1-1/8” x 2-3/4”, square corner faceplate |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Keys | Two nickel silver per lock cylinder |
| Door Range | 1-3/8” – 2” |
| Door Preparation | 2-1/8” diameter for bore 1” diameter for bolt Fits standard 161 door prep |
| Warranty | Lifetime limited |
