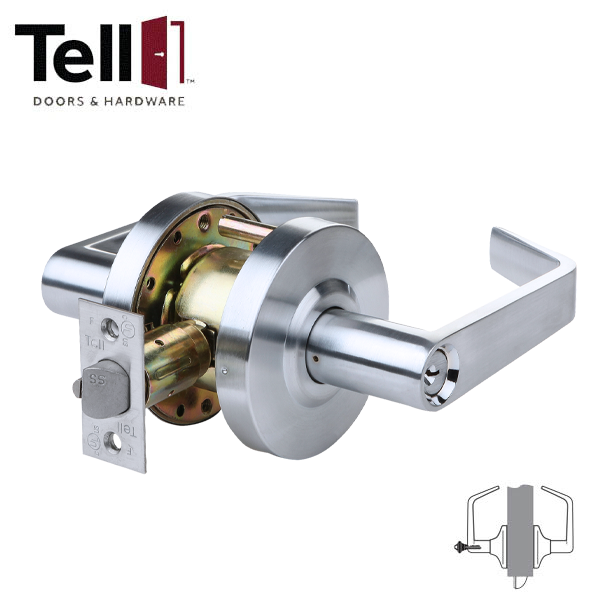

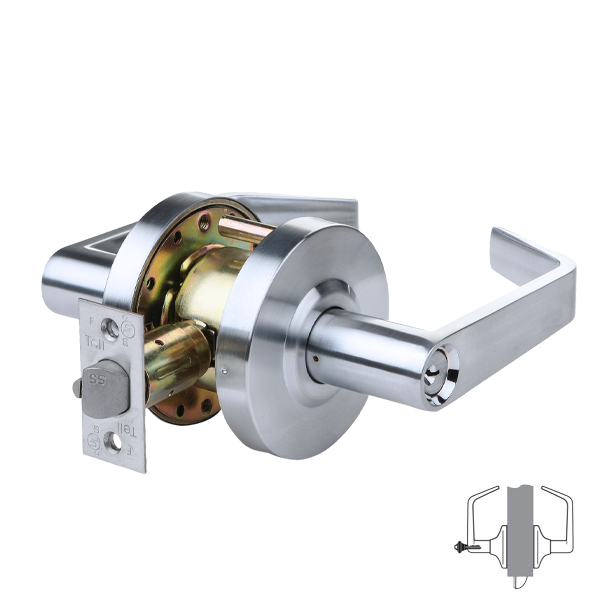

TELL- CL101027 - Standard Duty Cylindrical Leverset - Cortland - Storeroom - 2 3/4" Backset - Schlage C Keyway - Satin Chrome - Grade 2
Available to Order
SKU:
TELL-CL101027-26D
NSID:
27681
- $43.65
-
$52.38 - $43.65
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TELL LC2686 Provides standard duty grade 2 performance to any home. TELL door lever storeroom lockets have a latch operated by rotating the inside lever or key in the outside lever. The outside lever is always fixed.
Feature
- Keys: Two nickel silver per lock
- Schlage (SCC), Schlage C 6-pin keyway standard. rned.
- Latch operated by rotating the inside lever or key in the outside lever
- The outside lever is always fixed
Specifications
| Function | Storeroom - Inside Always Unlocked, Outside Always Locked |
| Finish | 26D Satin Chrome |
| Chassis | Cylindrical, steel-coated w/ zinc dichronate (corrision resistance) |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Thru-bolts | Thru-bolts standard |
| Backset | 2-3/4" |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike, Standard. |
| Keys | Two nickel silver per lock lock |
| Door Range | 1-1/2" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | Complies with ANSI A156.2, Series 4000, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | 1 Year Limited |
