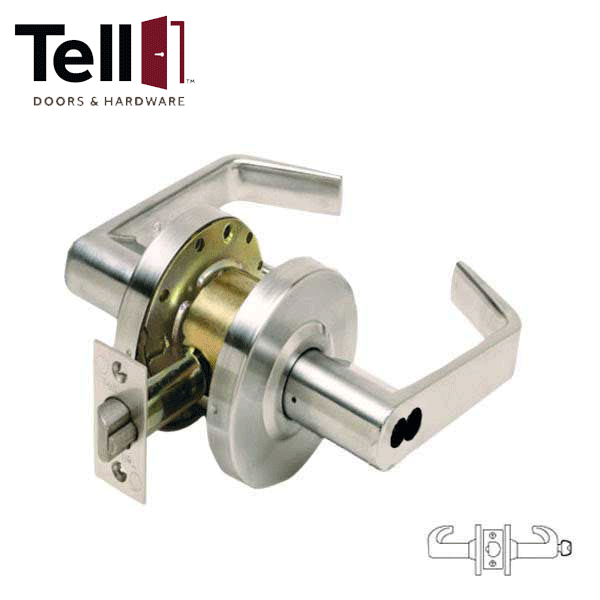

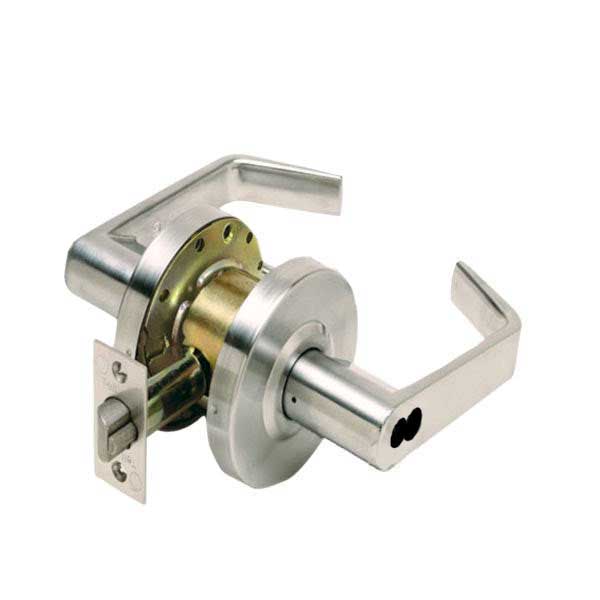

TELL - CL102262 - Standard Duty Cylindrical Leverset - Cortland - Classroom - IC Core - 2 3/4" Backset - Satin Chrome - Grade 2
In Stock
SKU:
TELL-CL102262
NSID:
29497
Get it shipped ! Order within:
Get it shipped ! Order within:
Get an Extra Hour with
- $96.00
-
$120.00 - $96.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TELL LC2684 Provides standard duty grade 2 performance to any home. TELL door lever locksets include cylinder locksets with a lever handle that allows doors to be opened with a natural downward hand motion. They include locksets that can be easily rekeyed without changing a device's bolt work. Door lever locksets are used to secure doors in offices, warehouse buildings, retail stores, residences, and more.
Feature
- Tell IC cylinder can be keyed to 6-pin or 7-pin interchangeable core.
- Latchbolt operated by lever from each side
- Outside lever locked or unlocked by key from outside
- Inside lever always operates latch
Specifications
| Function: | Classroom - Inside Always Unlocked, Outside Keyed |
| Finish | Satin Chrome |
| Chassis | Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Rose | 3-1/4" diameter |
| Thru-bolts | Removable thru-bolts standard |
| Backset | 2-3/4 |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| IC Cylinder | Tell IC cylinder can be keyed to 6-pin or 7-pin interchangeable core. |
| Keys | Two nickel silver per lock lock |
| Door Range | 1-3/8" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | Limited Lifetime |
