TELL - DB2000 Series - Standard Duty - Tubular Deadbolt - IC Core Prep - Stainless Steel - Grade 2
Available to Order
SKU:
TELL-CL100425
NSID:
51972
- $43.50
-
$54.38 - $43.50
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

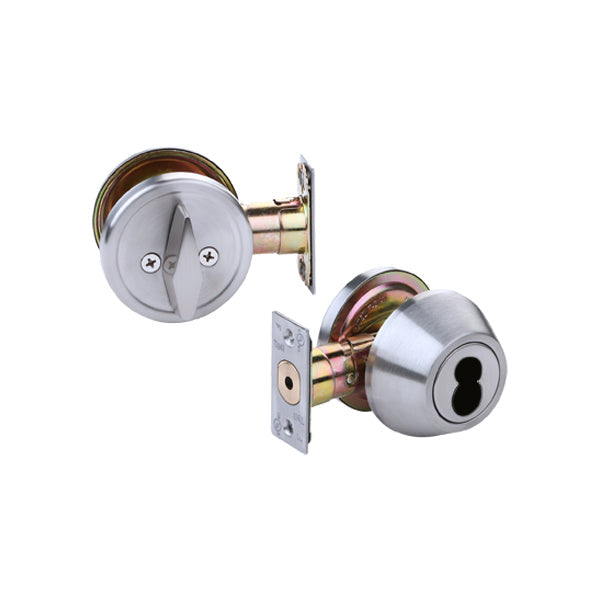

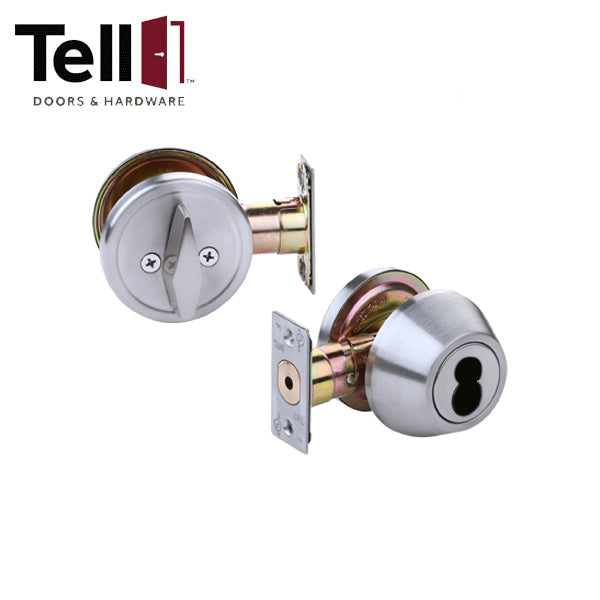

The DB2000 Series is a grade 2 tubular, standard duty deadbolt designed for superior security with a saw-resistant bolt with a 1" throw. Comes in double and single cylinder options in a satin stainless steel finish. The cylinder is a 6-pin solid brass keyway. Other finishes available.
Performance |
Complies with ANSI A156.5 |
Chassis | Tubular, steel |
Deadbolt | 1" Housing diameter (stainless steel) 1" throw with roller bar (added security for hacksaw or reciprocating blade cutting) 1" x 2-1/4" , faceplate |
Backset |
2-3/4" |
Strike | 1-1/8" x 2-3/4" , square corner faceplate |
Cylinder | Less Core |
Door Range | 1-3/8” - 1-3/4” |
Door Preparation | 2-1/8" diameter for bore 1" Diameter for bolt Fits standard 161 door prep |
Warranty | Lifetime limited |
