TELL - DHM2070 - Spartan - Hollow Metal Door - 2' x 7' - 18 Gauge Galvanized - Standard Cylinder 2-3/4" Backset Prep - ( Amweld - Steelcraft - Republic ) Hinge Pattern - Primer Gray - 3 Hour Fire Rated
TELL - DHM2070 - Spartan - Hollow Metal Door - 2' x 7' - 18 Gauge Galvanized - Standard Cylinder 2-3/4" Backset Prep - ( Amweld - Steelcraft - Republic ) Hinge Pattern - Primer Gray - 3 Hour Fire Rated
TELL - DHM2070 - Spartan - Hollow Metal Door - 2' x 7' - 18 Gauge Galvanized - Standard Cylinder 2-3/4" Backset Prep - ( Amweld - Steelcraft - Republic ) Hinge Pattern - Primer Gray - 3 Hour Fire Rated
TELL - DHM2070 - Spartan - Hollow Metal Door - 2' x 7' - 18 Gauge Galvanized - Standard Cylinder 2-3/4" Backset Prep - ( Amweld - Steelcraft - Republic ) Hinge Pattern - Primer Gray - 3 Hour Fire Rated
TELL - DHM2070 - Spartan - Hollow Metal Door - 2' x 7' - 18 Gauge Galvanized - Standard Cylinder 2-3/4" Backset Prep - ( Amweld - Steelcraft - Republic ) Hinge Pattern - Primer Gray - 3 Hour Fire Rated

TELL - DHM2070 - Spartan - Hollow Metal Door - 2' x 7' - 18 Gauge Galvanized - Standard Cylinder 2-3/4" Backset Prep - ( Amweld - Steelcraft - Republic ) Hinge Pattern - Primer Gray - 3 Hour Fire Rated

Login to view price
Or Call 1-800-878-6604 for Dealer Prices!

$407.34
Availability: Available
  • Product SKU: TELL-MSD21206
  • NSID: 33983
  • TELL-MSD21206

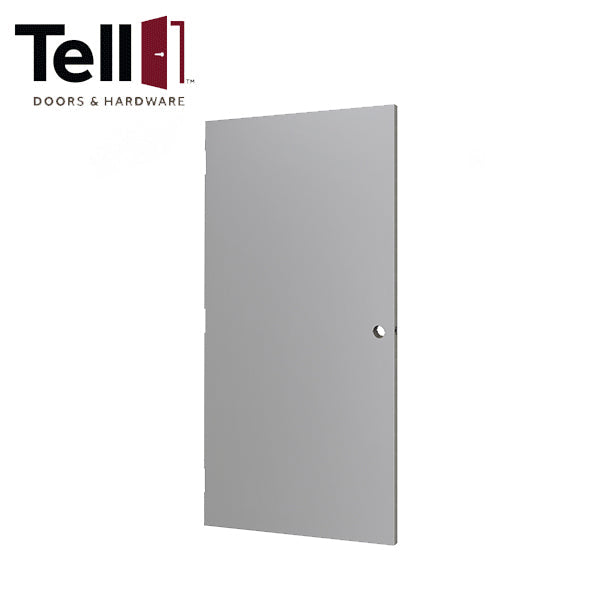

    The Spartan Series Doors are designed to meet the architectural requirements for hollow metal doors. This premium door construction combines the strength and dimensional stability of steel with the structural integrity of the a polystyrene core. The continuous bonding of core to metal provides an attractive flat door, free of face welding marks. Windstorm Tests have proven that the Spartan door has integral high resistance to impact damage, low thermal conductivity, and high STC ratings. To meet application, specification and performance requirements, the Spartan doors offer a wide range of specifiable options including sizes, glass lite designs, hardware (mechanical, pneumatic, electrical) preparations and edge constructions.

    Feature

    • Polystyrene core system enhances the structural integrity of the door, while significantly reducing the weight.
    • Full height, epoxy filled mechanical interlock edges provide structural support and stability along the full height of the door edges.
    • Patented universal hinge preparations allow for easy field conversion from standard weight (.134) hinges to heavy weight (.180) hinges.
    • 18 gage top and bottom channels provide stability and protection for the top and bottom edges from abuse.
    • Square hinge and lock edges allow for non-handed options and eliminate handing issues in the field.
    • All steel glass trim provides a clean, neat, and flush finish with the door surface
    • Factory applied baked on rust inhibiting primer in accordance with ANSI A250.10
    • Calculated R-Value of 7.14



Specifications

Series Spartan
Finish Smooth Flush Finish
Paint
Primer Gray
Gauge 18 Gauge Galvanized
Door Edge and Hinge Type
Square edge with cut through 4.5" x 4.5" hinges
Size
2' Feet Wide x  7' Height
Lock Prep
161 Cylinder Prep w/ 2-3/4" Backset
Hinge Pattern
Amweld / SteelCraft / Republic
Core
Rigid Polystyrene. 2.0 Nominal Density - R Factor 11.01
Hinge Reinforcements
3/16" Thick
Certifications

 - Factory applied baked on rust inhibiting primer in accordance to ANSI A250.10

 - Door Construction meets the requirements of ANSI A250.8-1998

 - Hardware Preparations in accordance to ANSI A250.6-1997

 - Locations in accordance to ANSl/DHI A115.

Fire Rated UL listed for 3 hour fire door



Downloads

NOTE: This Item Does NOT Qualify for FREE Shipping - It is shipped freight directly to you with a lead time of 3 to 4 weeks.

NOTE: Final product shipped may not match the picture as shown depending on which options were added to the door.

TELL-MSD21206

The Spartan Series Doors are designed to meet the architectural requirements for hollow metal doors. This premium door construction combines the strength and dimensional stability of steel with the structural integrity of the a polystyrene core. The continuous bonding of core to metal provides an attractive flat door, free of face welding marks. Windstorm Tests have proven that the Spartan door has integral high resistance to impact damage, low thermal conductivity, and high STC ratings. To meet application, specification and performance requirements, the Spartan doors offer a wide range of specifiable options including sizes, glass lite designs, hardware (mechanical, pneumatic, electrical) preparations and edge constructions.

Feature

  • Polystyrene core system enhances the structural integrity of the door, while significantly reducing the weight.
  • Full height, epoxy filled mechanical interlock edges provide structural support and stability along the full height of the door edges.
  • Patented universal hinge preparations allow for easy field conversion from standard weight (.134) hinges to heavy weight (.180) hinges.
  • 18 gage top and bottom channels provide stability and protection for the top and bottom edges from abuse.
  • Square hinge and lock edges allow for non-handed options and eliminate handing issues in the field.
  • All steel glass trim provides a clean, neat, and flush finish with the door surface
  • Factory applied baked on rust inhibiting primer in accordance with ANSI A250.10
  • Calculated R-Value of 7.14



Specifications

Series Spartan
Finish Smooth Flush Finish
Paint
Primer Gray
Gauge 18 Gauge Galvanized
Door Edge and Hinge Type
Square edge with cut through 4.5" x 4.5" hinges
Size
2' Feet Wide x  7' Height
Lock Prep
161 Cylinder Prep w/ 2-3/4" Backset
Hinge Pattern
Amweld / SteelCraft / Republic
Core
Rigid Polystyrene. 2.0 Nominal Density - R Factor 11.01
Hinge Reinforcements
3/16" Thick
Certifications

 - Factory applied baked on rust inhibiting primer in accordance to ANSI A250.10

 - Door Construction meets the requirements of ANSI A250.8-1998

 - Hardware Preparations in accordance to ANSI A250.6-1997

 - Locations in accordance to ANSl/DHI A115.

Fire Rated UL listed for 3 hour fire door



Downloads

NOTE: This Item Does NOT Qualify for FREE Shipping - It is shipped freight directly to you with a lead time of 3 to 4 weeks.

NOTE: Final product shipped may not match the picture as shown depending on which options were added to the door.
