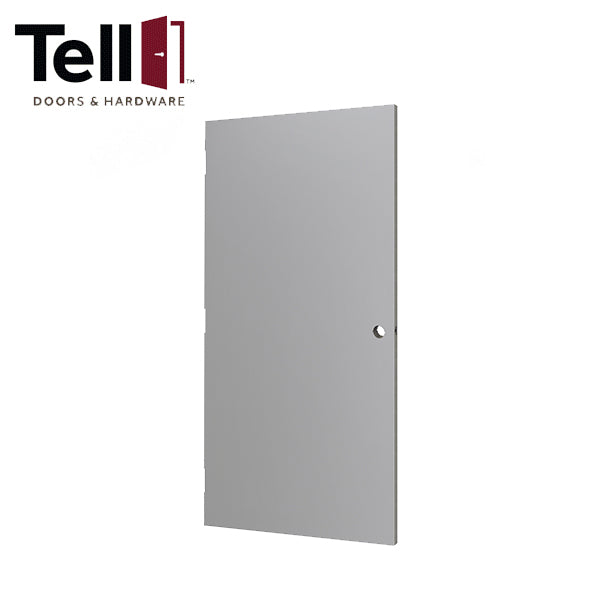

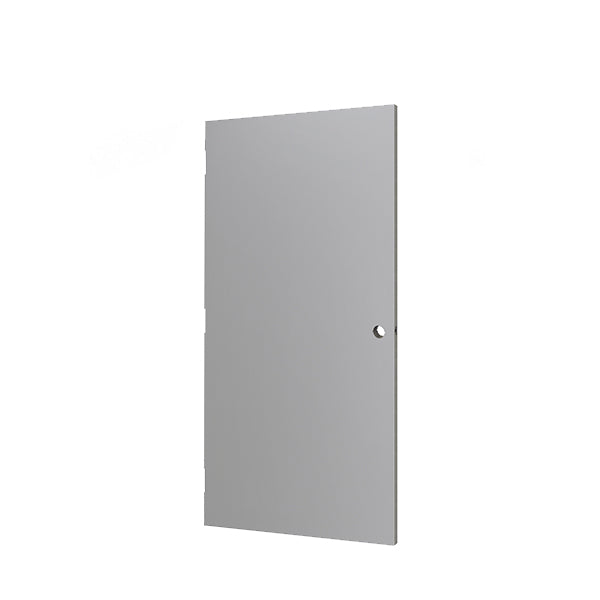

TELL - DHM3070 - Spartan - Hollow Metal Door - 3' x 7' - 18 Gauge Galvanized - Optional Prep - Optional Hinge Pattern - Primer Gray - Reinforcement for Exit Device - 3 Hour Fire Rated - UHS Hardware
TELL - DHM3070 - Spartan - Hollow Metal Door - 3' x 7' - 18 Gauge Galvanized - Optional Prep - Optional Hinge Pattern - Primer Gray - Reinforcement for Exit Device - 3 Hour Fire Rated - UHS Hardware

TELL - DHM3070 - Spartan - Hollow Metal Door - 3' x 7' - 18 Gauge Galvanized - Optional Lock Prep - Optional Hinge Pattern - Primer Gray - Reinforcement for Exit Device - 3 Hour Fire Rated

Available to Order
SKU: TELL-MSD25078
NSID: 30694 28677 29263

Please Note: This product has a lead time

$344.40
$430.50
$344.40
Lock Prep: Blank-No Prep
Hinge Pattern: CECO

The Spartan Series Doors are designed to meet the architectural requirements for hollow metal doors. This premium door construction combines the strength and dimensional stability of steel with the structural integrity of the a polystyrene core. The continuous bonding of core to metal provides an attractive flat door, free of face welding marks. Windstorm Tests have proven that the Spartan door has integral high resistance to impact damage, low thermal conductivity, and high STC ratings. To meet application, specification and performance requirements, the Spartan doors offer a wide range of specifiable options including sizes, glass lite designs, hardware (mechanical, pneumatic, electrical) preparations and edge constructions.

Feature

  • Polystyrene core system enhances the structural integrity of the door, while significantly reducing the weight.
  • Full height, epoxy filled mechanical interlock edges provide structural support and stability along the full height of the door edges.
  • Patented universal hinge preparations allow for easy field conversion from standard weight (.134) hinges to heavy weight (.180) hinges.
  • 18 gage top and bottom channels provide stability and protection for the top and bottom edges from abuse.
  • Square hinge and lock edges allow for non-handed options and eliminate handing issues in the field.
  • All steel glass trim provides a clean, neat, and flush finish with the door surface
  • Factory applied baked on rust inhibiting primer in accordance with ANSI A250.10
  • Calculated R-Value of 7.14
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Series Spartan
Finish Smooth Flush Finish
Paint
Primer Gray
Gauge 18 Gauge Galvanized
Door Edge and Hinge Type
Square edge with cut through hinges
Size
3 Feet Wide x 7 Feet Height
Optional Lock Prep
Blank/No Prep - Standard Cylinder - Mortise
Optional Hinge Pattern
(Amweld / SteelCraft / Republic), CECO
Core
Rigid Polystyrene. 2.0 Nominal Density - R Factor 11.01
Hinge Reinforcements
3/16" Thick
Certifications

- Factory applied baked on rust inhibiting primer in accordance to ANSI A250.10

- Door Construction meets the requirements of ANSI A250.8-1998

- Hardware Preparations in accordance to ANSI A250.6-1997

- Locations in accordance to ANSl/DHI A115.

Fire Rated UL listed for 3 hour fire door
