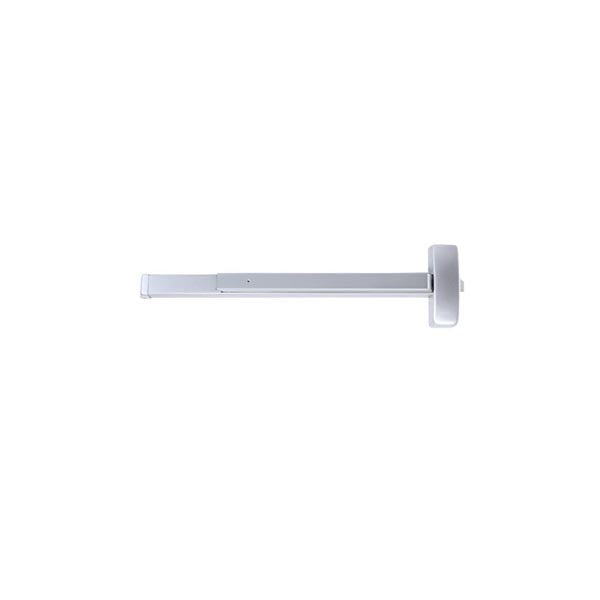

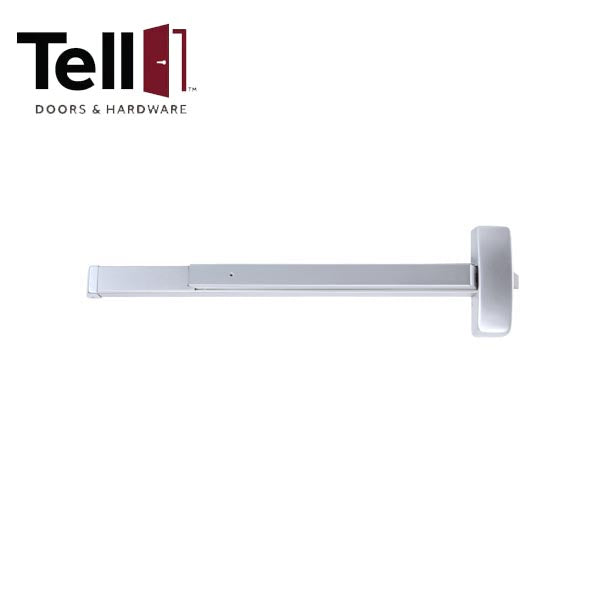

TELL - F7300 - Rim Exit Device - Grade 1 - Surface Mounted - Stainless Steel - Fire Rated - 36"

TELL - F7300 - Rim Exit Device - Grade 1 - Surface Mounted - Stainless Steel - Fire Rated - 36"

Available to order
SKU TELL-EX100327 NSID 52385
$227.11$272.53On Sale You save $45.42 (17%)
Please Note: This product has a lead time

Tell Manufacturing's 7300B is a Grade 1 rim exit device for commercial applications. The 7300B series is surface mounted and will fit on doors 28 in. to 36 in. W. This rim panic will work on doors 1-3/4 in. to 2 in. T and has a stainless steel finish. This surface mounted rim panic complies with ANSI A156.3 and is UL/ULC Listed and can be mounted on wood or metal doors.

    Call 1-800-878-6604 for Bulk / Dealer Pricing!
    View full details

    Details

    Specifications:

    Performance Complies with ANSI A156.3, 1994
    Grade 1
    UL/ULC listed
    Rail
    		 Fits 28” to 36” doors
    Latch Stainless steel 5/8” throw
    Deadlatch feature
    Backset 2-3/4”
    Strike 416 ASA Standard
    Slotted holes for adjustments
    Other strikes available
    Cylinder Schlage (SCC) - C keyway
    6-pin solid brass
    Keyed different (KD)
    Fasteners Accommodates wood or metal doors
    Door Range
    		 1-3/8” - 2”
    Door Preparation
    		 Surface mounted
    Warranty Lifetime limited
    Exterior Trim
    		 Exterior pull blank or cylinder
    Ball knob trim
    Lever trim
    Thumbpiece trim with rim cylinder
    Escutcheon lever trim
