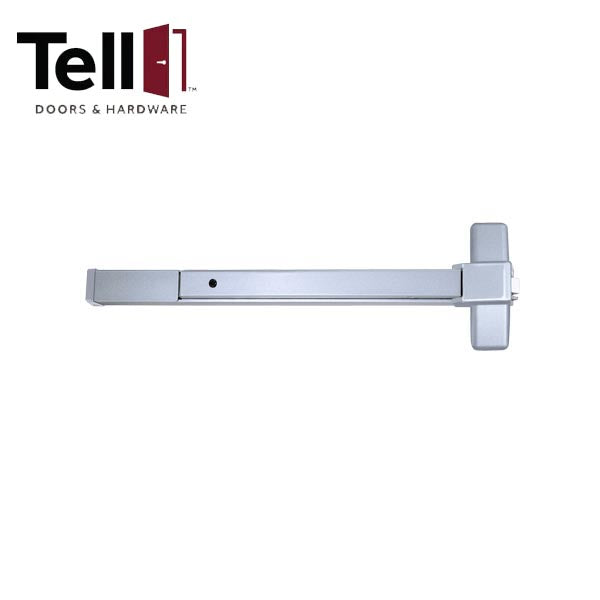

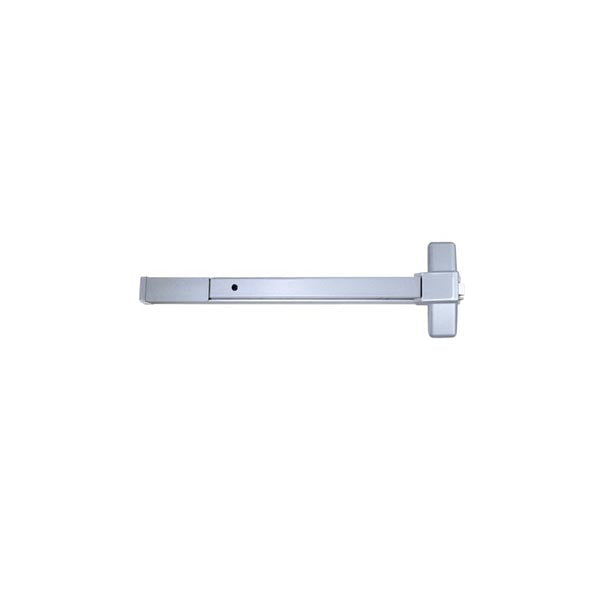

TELL - F8300 - Heavy Duty Rim Exit Device - Grade 1 - Fire Rated - Optional Finish - 48"
Available to Order
SKU:
TELL-EX100059
NSID:
52379
- $285.75
-
$357.19 - $285.75
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 8300 Series Exit Device is a grade 1 heavy-duty, aluminum rim exit device with standard exterior pull plate. This exit device is suitable for metal or wood doors. It is fire rated up to three hours and fits 28” to 36” doors.
| Performance | Complies with ANSI A156.3, 1994 Grade 1 UL/ULC listed |
| Latch | Stainless steel 5/8” throw Deadlatch feature |
| Backset | 2-3/4” |
| Strike | Made with slotted holes for adjustments |
| Cylinder | Schlage (SCC) - C keyway 6-pin solid brass Keyed different (KD) |
| Fasteners | Accommodates wood or metal doors |
| Door Preparation |
Surface mounted |
| Warranty | Lifetime limited |
| Exterior Trim |
Exterior pull blank or cylinder Ball knob trim Lever trim Thumbpiece trim with rim cylinder Escutcheon lever trim |
