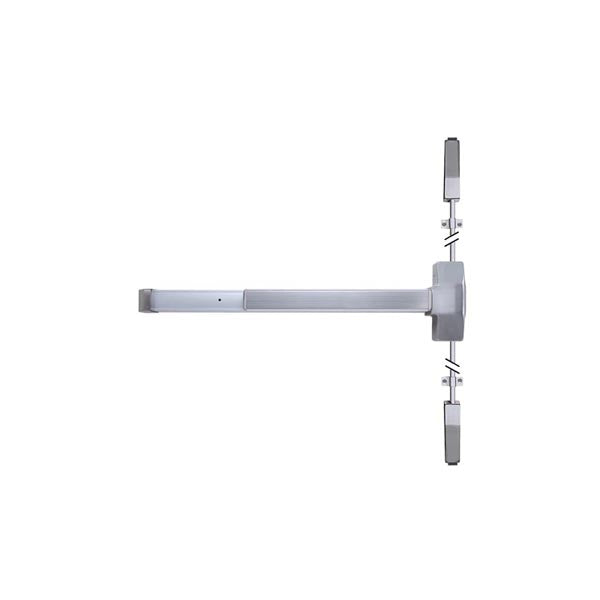

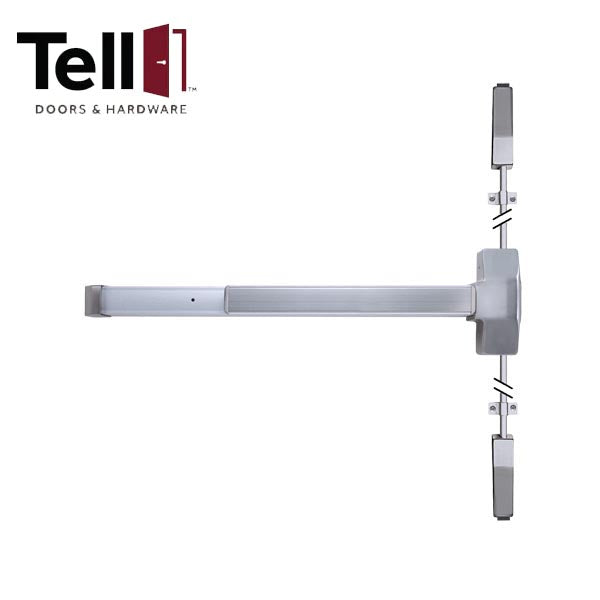

TELL - F9400 - Vertical Rod Exit Device - Heavy Duty - Grade 1 - Fire Rated - Stainless Steel - 36"
Available to Order
SKU:
TELL-EX100082
NSID:
52391
- $936.75
-
$1,170.94 - $936.75
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 9400 Series Exit Device is a grade 1 heavy-duty, steel vertical rod exit device. Fire rated, ADA compliant, and ANSI approved for maximum safety.
Specification:
| Performance | Complies with ANSI A156.3, 2001 Grade 1 UL/ULC Listed |
| Rail | Fits 28” to 36” doors |
| Latch | Stainless steel 5/8” throw Deadlatch feature |
| Backset | 2-3/4” |
| Strike | Made with slotted holes for adjustments |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Fasteners | Accommodates wood or metal doors |
| Warranty | Lifetime limited |
| Door Range |
1-3/4” to 2-1/4” |
| Door Preparation |
Surface mounted |
| Exterior Trim |
Exterior blank or cylinder pull Ball knob trim Lever trim Thumbpiece trim with rim cylinder Escutcheon lever trim 3-hour fire rated device Other strikes available |
