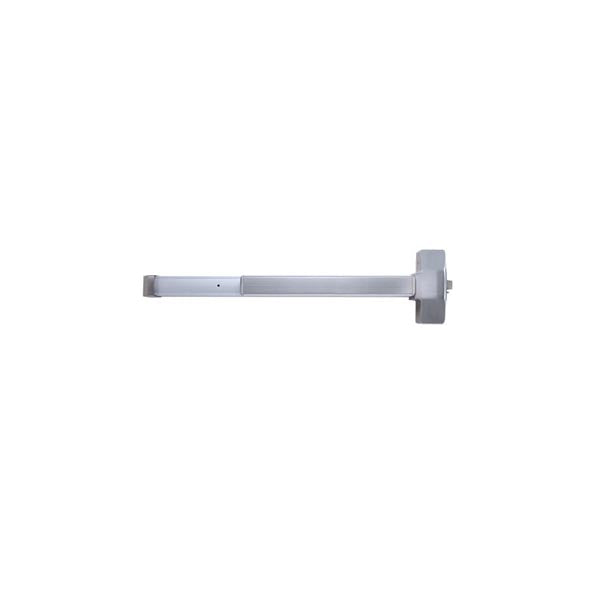

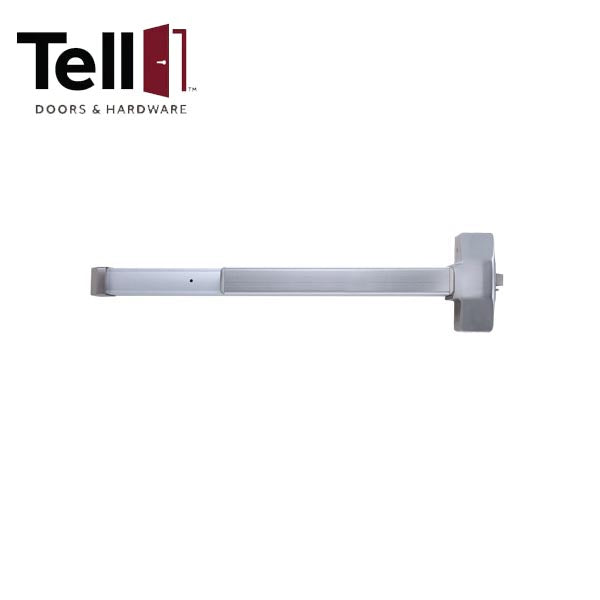

*Discontinued* TELL - F9500 - Architectual Rim Exit Device - Heavy Duty - Grade 1 - Fire Rated - Stainless Steel - 36"
Out of Stock
SKU:
TELL-EX100078
NSID:
52389
- $309.63
-
$371.56 - $309.63
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 9500 Series Exit Device is a grade 1 heavy-duty, steel architectural rim exit device. Fire rated, ADA compliant, and ANSI approved for maximum safety.
- $309.63
-
$371.56 - $309.63
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
Description
xSpecifications:
| Performance | Complies with ANSI A156.3, 2001 Grade 1 UL/ULC Listed |
| Rail | Fits 28” to 36” door |
| Latch | Stainless steel ¾” throw Deadlatch feature |
| Backset | 2-3/4” |
| Strike | Made with slotted holes for adjustments |
| Cylinder | SCC - C keyway 6-pin solid brass Keyed different (KD) |
| Fasteners | Accommodates wood or metal doors Thru bolts standard |
| Door Range |
1-3/4” – 2-1/4” |
| Door Preparation |
Surface mounted |
| Finishes | US26D – Satin Chrome US3 – Bright |
| Warranty | Lifetime limited |
| Exterior Trim |
Exterior pull blank or cylinder Ball knob trim Lever trim Thumbpiece trim with rim cylinder Escutcheon lever trim 3-hour fire rated device Other strikes available |
