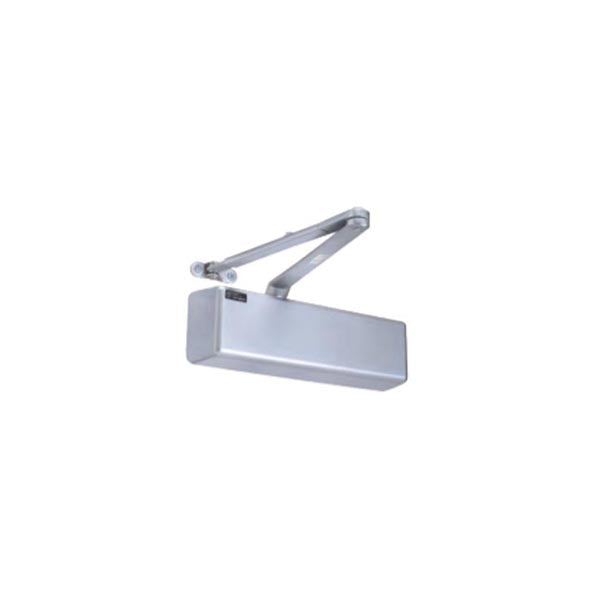

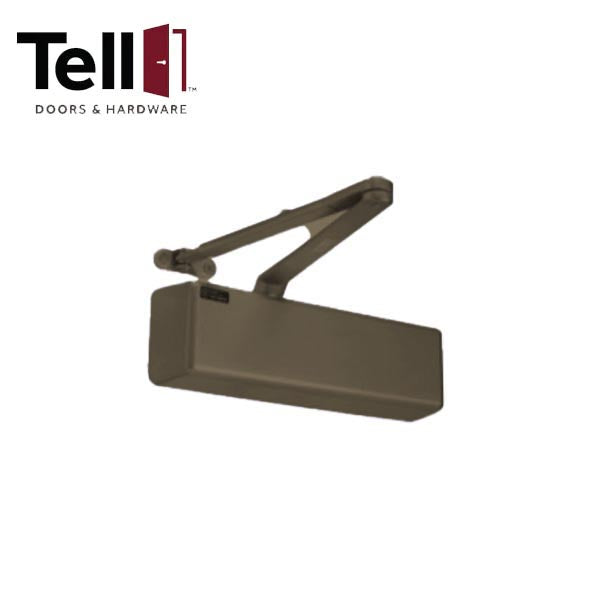

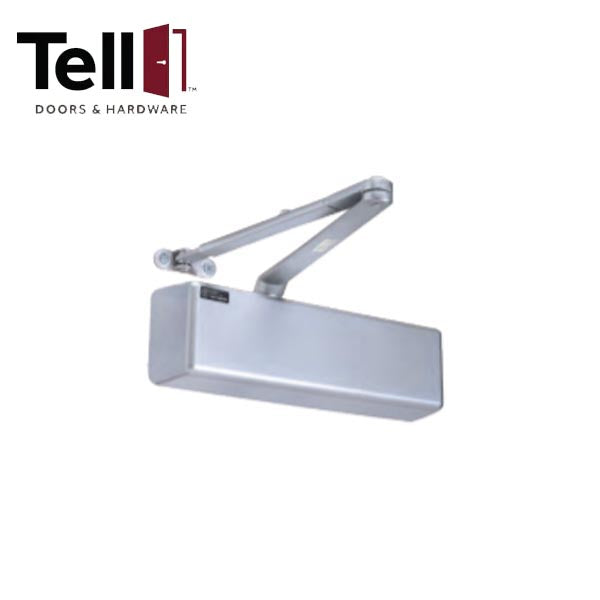

TELL - 900 Series - Maximum Duty Commercial Door Closer - Parallel Arm Bracket - Adjustable Arm - 1-6 - Full Cover - Backcheck - Optional Finish - Grade 1
Available to Order
SKU:
TELL-DC100075
NSID:
52355
52356
- $104.01
-
$285.94 - $104.01
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
The 900 Series Door Closer is a grade 1, maximum duty cast steel surface applied door closer. Ideal for new applications where durability is required. Tell’s 900 Series features a rugged construction with adjustable backcheck, independent sweep and latch closing speed, and is a 1 - 6 adjustable size.
Specifications:
| Performance | Complies with ANSI A156.4 Grade 1, 2,000,000 cycles UL/ULC listed up to 3 hours fire rated |
| Chassis | Closer cast steel |
| Handing | Non-handed |
| Mounting | Regular arm applications Top jamb applications Parallel arm applications |
| Arm | Forged steel Accommodates reveals up to 3-1/4” Adjustable extension arm Track Arm |
| Spring Power |
Adjustable sizes 1 – 6 |
| Backcheck | Adjustable, hydraulic - providing cushioning and preventing uncontrolled openings of the door |
| Valves | Adjustable, independent, non-critical (sweep and latch), consistent closing speeds |
| Fasteners | Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts are included |
| Cover | High impact plastic Plated kit: cover, arm & bracket |
| Door Range |
Up to 180 degrees |
| Door Preparation |
5” horizontal x 2-1/4” vertical 4-Hole mounting locations Retrofits traditional closer |
| Warranty | Lifetime limited |
