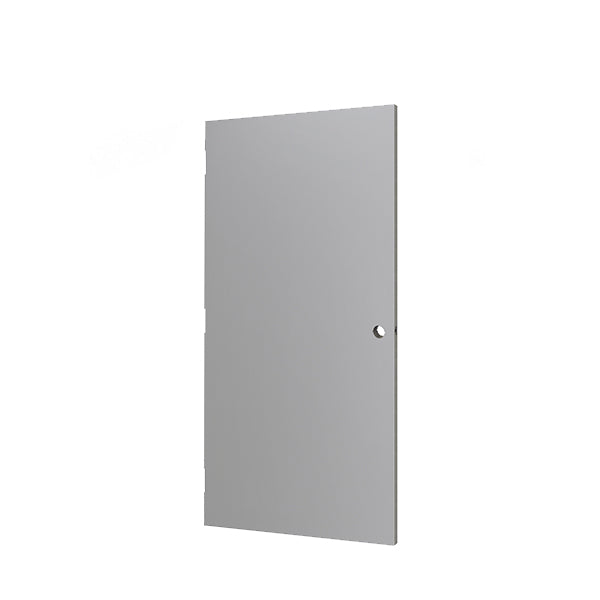

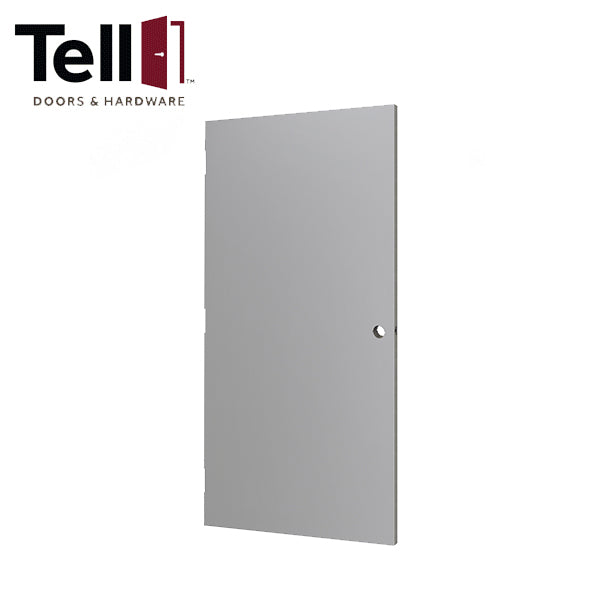

TELL - SD102951 - Viking - Hollow Metal Door - 3' x 7' - 18 Gauge Galvanized - Non-handed 4-1/2” Hinge Prep - Optional Lock Prep - Optional Panel Count - Primer Gray - 3 Hour Fire Rated
- $406.00
-
$499.99 - $406.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per
TELL VIKING DOORS are manufactured from high quality 18 gauge galvanized steel and are thoroughly cleaned inside and out to insure excellent corrosion resistance and paint adhesion. All doors come with a polystyrene core as standard, making every door smoother, flatter, and stronger. Viking Doors come standard with a prime coat, ready to be painted.
Feature
- Polystyrene core system enhances the structural integrity of the door, while significantly reducing the weight.
- Full height, epoxy filled mechanical interlock edges provide structural support and stability along the full height of the door edges.
- Patented universal hinge preparations allow for easy field conversion from standard weight (.134) hinges to heavy weight (.180) hinges.
- 16 gauge inverted top channel and bottom channels provide stability and protection for the top and bottom edges from abuse.
- Square hinge and lock edges allow for non-handed options and eliminate handing issues in the field.
- All steel glass trim provides a clean, neat, and flush finish with the door surface
Specifications
| Series | Viking |
| Finish | Smooth Flush Finish |
| Paint |
Primer |
| Gauge | 18 Gauge Galvanized |
| Door Edge and Hinge Type |
Square hinge and lock edges |
| Size |
3 Feet Wide x 7 Feet Height |
| Optional Lock Prep |
Blank/No Prep, 161 Cylindrical Prep |
| Optional Panels |
2, 6 |
| Core |
Rigid Polystyrene. 2.0 Nominal Density - R Factor 11.01 |
| Hinge Reinforcements |
3/16" Thick |
|
Certifications |
- 3 Hour Interteck / Warnock Hersey, UBC 7-2 (1997) - ASTM E2074 (200), UL 10(b) (2008), NFPA 252 (2008) - UL 10(b) Revision 1 (2009), UL 10(c) (2009) - CAN / ULC S104 (2010) - Built to SDI Specifications ANSI A250.8 - STC 26 Rating - ADA Compliant 10” Bottom Rail Standard |
| Fire Rated | UL listed for 3 hour fire door |
Downloads
NOTE: This Item Does NOT Qualify for FREE Shipping - It is shipped freight directly to you with a lead time of 3 to 4 weeks.
NOTE: Final product shipped may not match the picture as shown depending on which options were added to the door.
