TELL - SD103258 - Viking - Hollow Metal Door - 3' x 6' 8" - 18 Gauge Galvanized - Non-handed 4-1/2” Hinge Prep - Optional Lock Prep - Optional Panel Count - Primer Painted - 3 Hour Fire Rated - UHS Hardware
TELL - SD103258 - Viking - Hollow Metal Door - 3' x 6' 8" - 18 Gauge Galvanized - Non-handed 4-1/2” Hinge Prep - Optional Lock Prep - Optional Panel Count - Primer Painted - 3 Hour Fire Rated - UHS Hardware

TELL - SD103258 - Viking - Hollow Metal Door - 3' x 6' 8" - 18 Gauge Galvanized - Non-handed 4-1/2” Hinge Prep - Optional Lock Prep - Optional Panel Count - Primer Gray - 3 Hour Fire Rated

Available to Order
SKU: TELL-SD103252
NSID: 37996 37992 37995 37991

Please Note: This product has a lead time

$391.50
$474.99
$391.50
Lock Prep: Blank-No Prep
Panel Count: 2-Panel

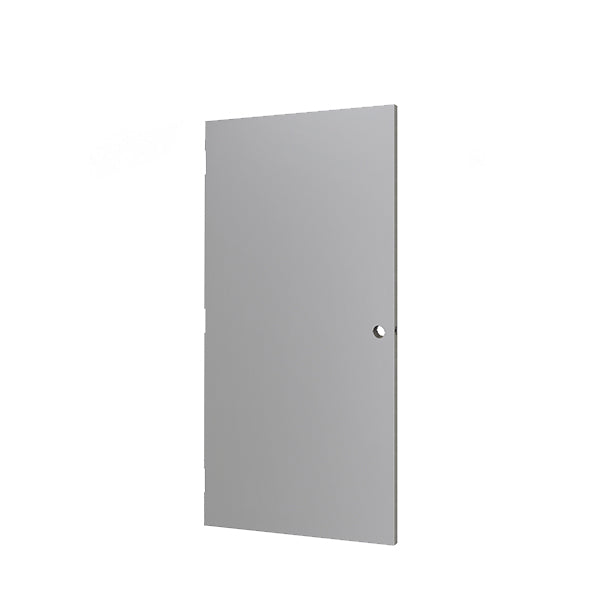

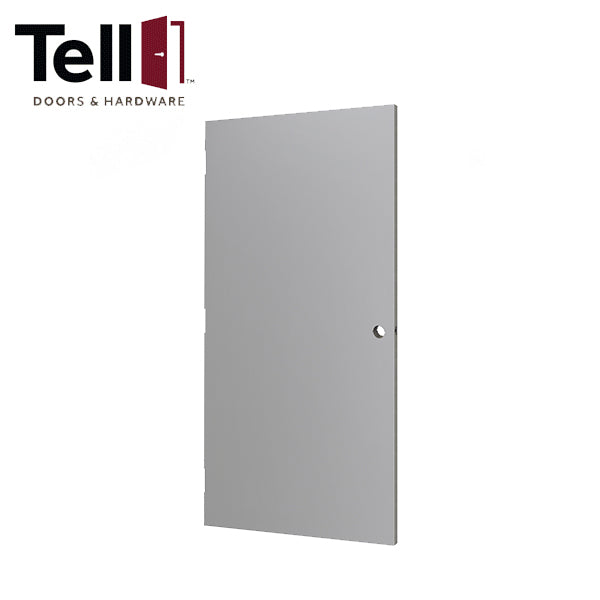

TELL VIKING DOORS are manufactured from high quality 18 gauge galvanized steel and are thoroughly cleaned inside and out to insure excellent corrosion resistance and paint adhesion. All doors come with a polystyrene core as standard, making every door smoother, flatter, and stronger. Viking Doors come standard with a prime coat, ready to be painted.

Feature

  • Polystyrene core system enhances the structural integrity of the door, while significantly reducing the weight.
  • Full height, epoxy filled mechanical interlock edges provide structural support and stability along the full height of the door edges.
  • Patented universal hinge preparations allow for easy field conversion from standard weight (.134) hinges to heavy weight (.180) hinges.
  • 16 gauge inverted top channel and bottom channels provide stability and protection for the top and bottom edges from abuse.
  • Square hinge and lock edges allow for non-handed options and eliminate handing issues in the field.
  • All steel glass trim provides a clean, neat, and flush finish with the door surface
Call 1-800-878-6604 for Bulk / Dealer Pricing!

Specifications

Series Viking
Finish Smooth Flush Finish
Paint
Primer
Gauge 18 Gauge Galvanized
Door Edge and Hinge Type
Square hinge and lock edges
Size
3 Feet Wide x 6 Feet 8 Inches Height
Optional Lock Prep
Blank/No Prep, 161 Cylindrical Prep
Optional Panels
2, 6
Core
Rigid Polystyrene. 2.0 Nominal Density - R Factor 11.01
Hinge Reinforcements
3/16" Thick
Certifications

- 3 Hour Interteck / Warnock Hersey, UBC 7-2 (1997)

- ASTM E2074 (200), UL 10(b) (2008), NFPA 252 (2008)

- UL 10(b) Revision 1 (2009), UL 10(c) (2009)

- CAN / ULC S104 (2010)

- Built to SDI Specifications ANSI A250.8

- STC 26 Rating

- ADA Compliant 10” Bottom Rail Standard

Fire Rated UL listed for 3 hour fire door
