TOPDON - Oscilloscope - For Phoenix Diagnostic Tools - 4-Channel
Available to Order
SKU:
TPD-TD52110138
NSID:
33061
- $895.00
-
$995.00 - $895.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

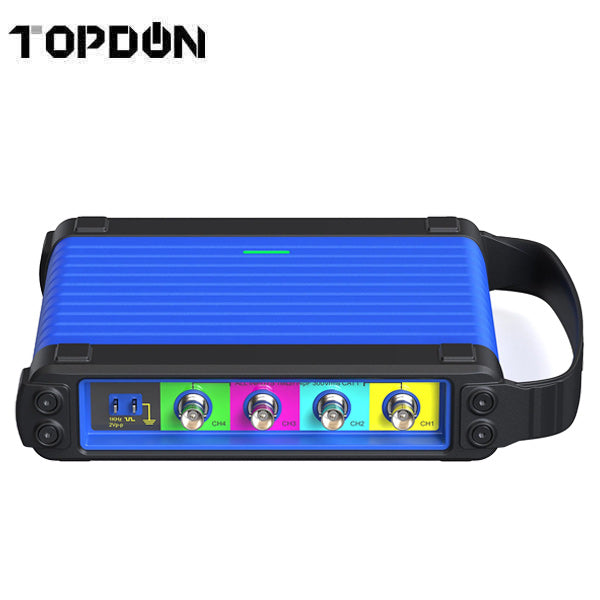

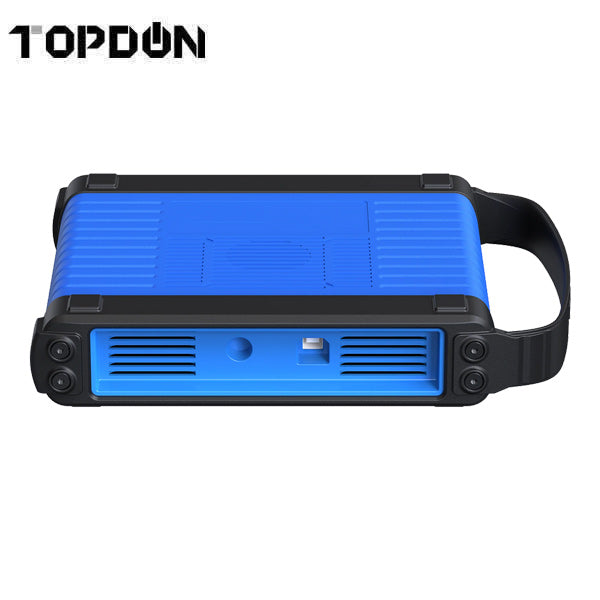

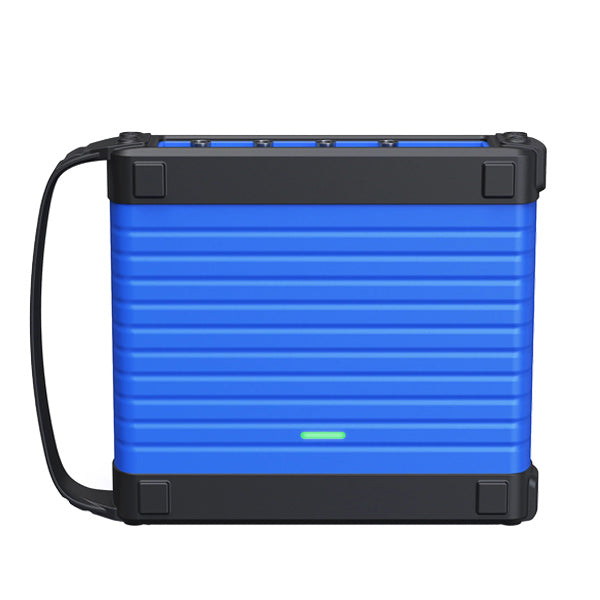

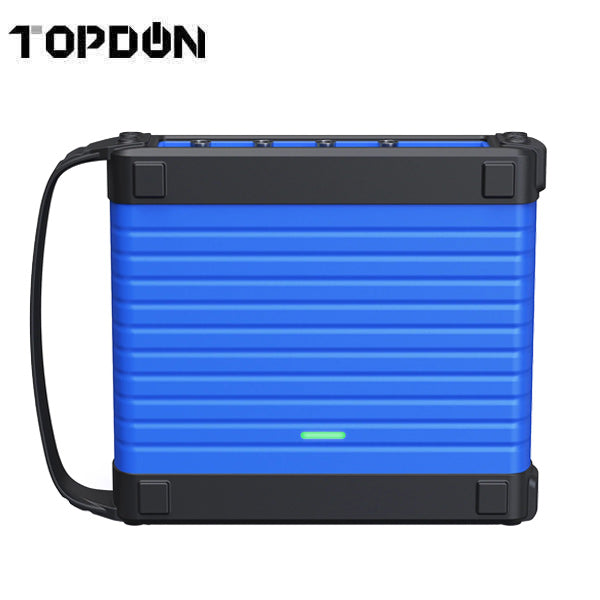

Phoenix Scope – Advanced Automotive Diagnostic Tool
The Phoenix Scope enables technicians to efficiently diagnose automotive electronics and wiring issues. It quickly captures circuit signals and displays waveforms at a slower speed for detailed observation and analysis. Additionally, it records and replays tested signal waveforms for comprehensive fault diagnosis.
Compatible with:
Key Features:
- 23 Automatic Measurements: Displayed on one screen with one-tap selection for efficiency.
- Powerful Trigger Functions: Supports edge, pulse width, and more for easy setup.
- High Memory Depth: 50M memory with zoom technology for detailed waveform analysis.
- Fast Storage Function: Save waveforms with a single tap, reducing save time by 70%.
- Convenient Cursor Operation: Drag and track cursors easily with a tap for 80% efficiency boost.
- Soft Keyboard Input: Improves name/character input speed by 90% over traditional selection.
- Customizable System Settings: Save and load configuration files for quick preference adjustments.
- Waveform Recording & Playback: Store and recall waveforms for reference.
- Mathematical Operations: Supports addition, subtraction, multiplication, division, and FFT calculations.
- Automotive Tests: Circuit tests, sensor tests, actuator tests, ignition tests, communication tests, and more.
Specifications:
| Number of Channels | 4 |
| Bandwidth | 100MHz |
| Real-time Sampling Rate | 1Gsa/s (single channel); 500MS/s (dual); 250MS/s (four channels) |
| Memory Depth | 50M (shared by 4 channels) |
| Protocol Decoding | CAN, LIN |
| Trigger Type | Edge, Pulse Width |
| Trigger Mode | Normal, Auto, Single Sequence |
| Vertical Accuracy | ±3% |
| Vertical Stall | 5mV~10V |
| Time Base Stall | 50ns~1ks |
| Math Functions | Dual Waveform, FFT |
| Input Impedance | 1MΩ ±1.5% |
| Display Modes | YT, Zoom, Roll |
| Power Supply | USB Port, DC Port |
| Data Transfer | USB |
Included Accessories:
Return Policy:
Unsealed products cannot be returned. For defective items, contact Phoenix Scope support for a return ticket, then proceed with UHS Hardware.
