TOPDON - Phoenix Max - Advanced-Level Professional Diagnostic Tool with Scope
- $4,500.00
-
$6,090.00 - $4,500.00
- Translation missing: en.products.product.selected_or_first_available_variant.price.unit_price
- per

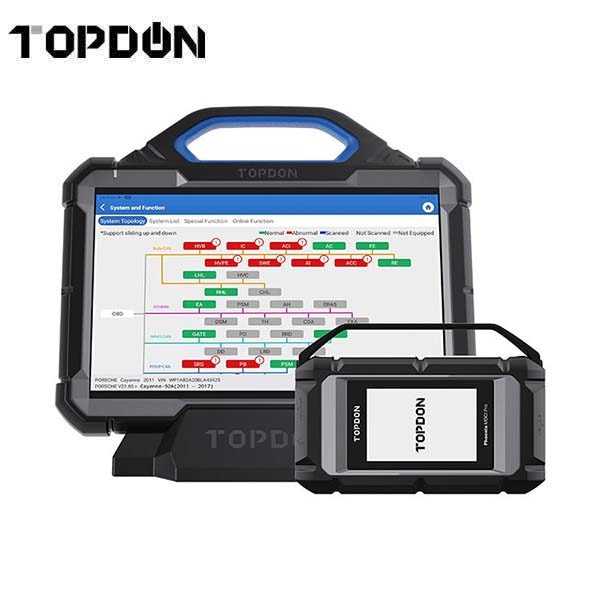

The Phoenix MAX Full size Advanced-Level professional diagnostic tool
The Phoenix Max is TOPDON's newest cutting-edge automotive diagnostic scanner. With a 13.3" screen, this all-in-one tool offers a wide array of functionalities that will expand any technician's capacity to complete even more jobs. The Phoenix Max includes a 4-channel oscilloscope, ADAS compatibility, and Topology Mapping that shows all car systems in one view. Its updated MDCI (Modular Diagnostics & Communication Interface) includes the latest protocols, allowing professionals to perform more complex repairs on various automotive vehicles.
For Heavy Duty Vehicle compatibility take a look at the Phoenix Max Heavy Duty Kit
FEATURES:

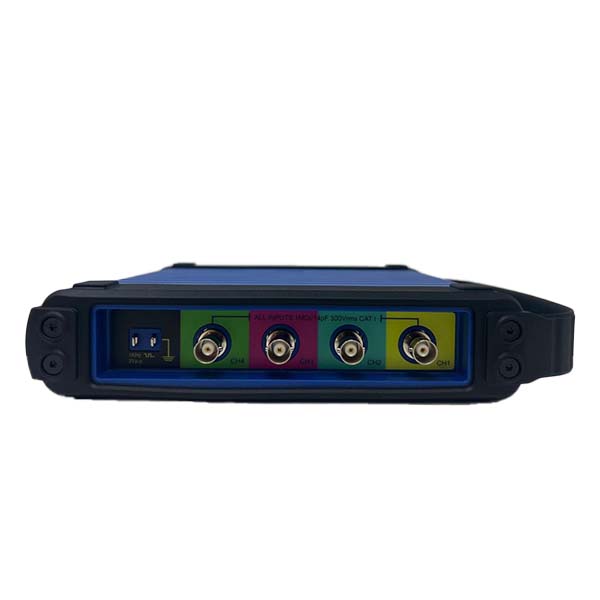

- Includes a 4-channel Oscilloscope
- Cloud-based Programming and Online Coding
- Access the FCA Gateway to Work on the Most Modern Vehicles and Adjust Protected Functions
- Supports ADAS Calibration and Battery Testing
- Features Topology Mapping
- MDCI Pro equipped with J2534, CanFD, DoIP, D-PU, and RP1210 Protocols
TECHNICAL SUPPORT: This diagnostic tool supports first-hand troubleshooting of diagnostic bugs and errors. One-stop multitasking design for ideal management of workshop operations to keep all data files, customer information, and vehicle records well organized.
WARRANTY & UPDATES
Two Year Manufacturer Warranty
2 Years of Free Software Upgrades
Includes
- (1) Phoenix Max Tablet
- MDCI Equipped with Mega Can, CAN FD, and J2534 Protocols
- OBDII Extension Cable
- Cigarette Lighter Cable
- Type-C to USB Cable
- Battery Clamps/Cable Set
- Power Adaptor
- User Manual
- Password Envelope
- Non-16pin Adaptor Cable Kit
- 4-channel oscilloscope
Specifications:
| Operating System: | Android 9.0 |
| Display: | 13.3” Display with 1920x1200 resolution and capacitive touch screen |
| Memory: | 8GB RAM & 256GB Embedded Memory |
| Connectivity: | 802.11a/b/g/n/ac WIFI, 2.0 3Mbs Bluetooth, RJ45 Ethernet Connection, 2.0 USB, HDMI 1.4a, SD Card (supports up to 128GB) |
| Camera: | Rear: 13.0 Megapixels, Autofocus with Flashlight, Front: 8.0 Megapixels |
| Audio Input/Output: | Microphone, Dual Speakers, 3.5mm stereo/standard headset jack |
| Power and Battery: | 3.8V/18600mAH Lithium-polymer battery |
| Working Temperature: | 32-122F |
| Dimensions: | 14.33 x 11.22 x 3.23 |
