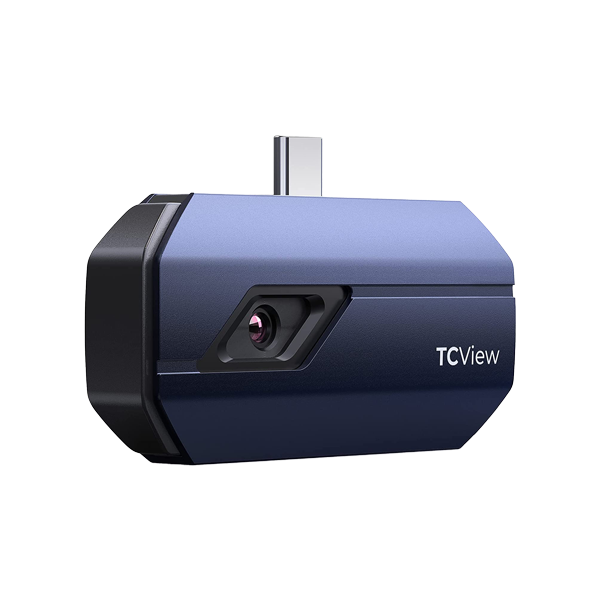

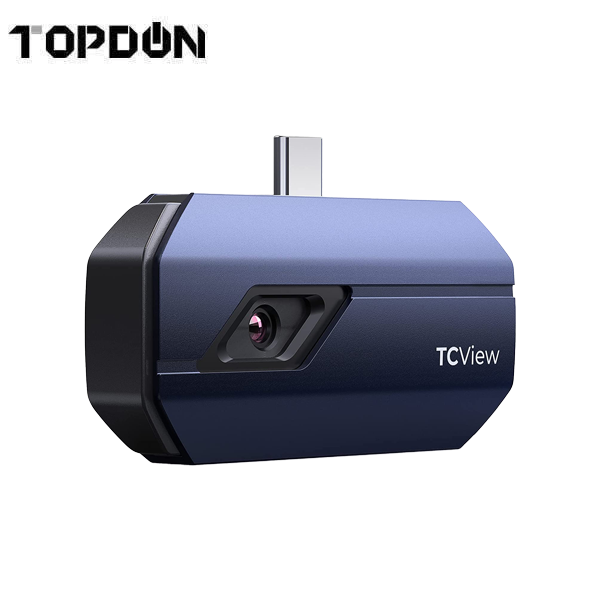

The TC Series turns a smartphone into a thermal imager. With this device, a technology that only belonged to special forces now comes to your smartphone. With many real-world applications, it can be used for cylinder inspections, insulation inspection, water leak inspection, and helps farmers and hunters spot animals at night. The TC001 is designed to provide accurate thermal imaging for everyone, whether the job is home repair, professional automotive services, or protecting crops and livestock.
Features:
- Superior Image Quality with an IR Resolution of 256x192
- Low power consumption of only 0.25W
- Compatible with USB-C Android Phones and Windows Tablets (adapter required for micro-USB devices)
- Enhanced Testing Range of -4°F to 1022°F (-20C to 550C)
- Three Temperature-Reading Dimensions (high, low, and aim point)
- Customizable Temperature Range
- Generate Temperature Graph for monitoring and logging data
- Image Enhancement Technology
- Plug and play, registration not required
- Use with the free TOPDON TC001 App
8~14μm |
|
| Resolution | 256×192 |
| 12μm | |
| NETD | ＜40mK @25°C, F#1.0, 25Hz |
| 25Hz | |
-20~150°C (-4~302°F), 150°C~550°C (302~1022°F) |
|
| Accuracy | ±2ºC or ±2% of reading |
| Weight | 30g |
| Dimension | 71*42*14mm (2.80*1.65*0.55 inch) |
Downloads:
Important Note: Not Compatible With IOS
