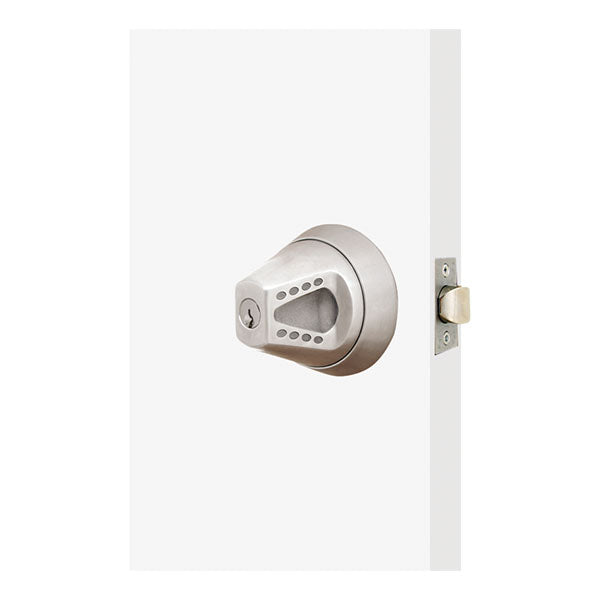

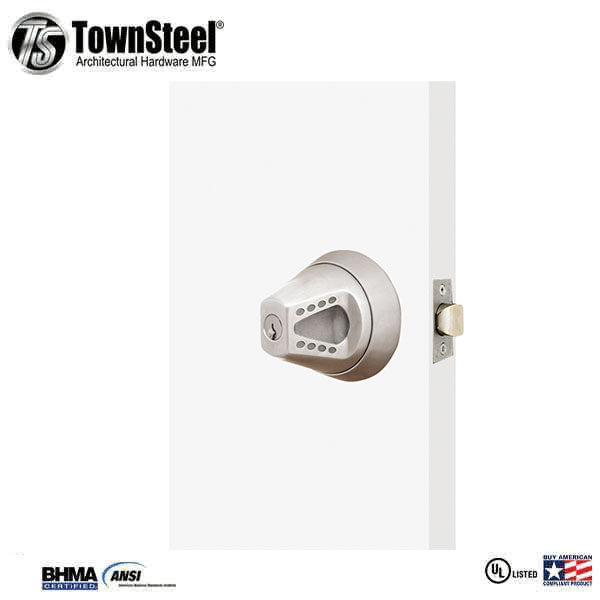

TownSteel - CRX-K - Cylindrical Lock with Ligature Resistant Knob Trim - Optional Function - Stainless Steel - Grade 1
Out of Stock
SKU:
TNS-CRX-K-75-630
NSID:
The CRX-K is an ANSI Grade 1 cylindrical lock with a ligature-resistant knob. CRX-K is suitable for behavioral, mental, and psychiatric healthcare facilities housing patients at risk. This product is equipped with a ligature-resistant stainless steel knob and tamper-resistant mounting screws. The CRX-K can be mounted on both a wood and metal door.
- Ligature-resistant stainless steel knob
- Tamper-resistant mounting screws
- Mount onto wood or metal door
- Certifications: ANSI/BHMA Grade 1, UL Listed. Meets BAA and ADA requirements.
Series | CRX |
Ligature Compliant? | Yes |
Code Compliances | Grade 1 listed, Certified ANSI/BHMA |
Backset |
Standard, 2-3/4″ |
Functions | (75) Passage, (84) Classroom, (86) Storeroom, (87) Asylum, |
Faceplate | 1-1/8" x 2-1/4", square corner |
Door Thickness | 1-3/4" - 2" |
Strike | ASA strike standard, T-Strike optional |
Rose | 4" diameter, stainless steel |
Mounting | Though-bolt, tamper resistant mounting screws, for wood and metal door |
Knob | Stainless steel |
Cylinder | Standard, Schlage® 6-pin with “C” Keyway |
Finish | 630, Satin Stainless Steel |
